pCXSN
Catalog No. PVT11171
Packing 2ug
pCXSN Information
Function plant expression plasmid
Promoter: CaMV 35S promoter
Replicator: pUC ori, pVS1 oriV
Terminator: NOS Terminator
Plasmid classification: plant series plasmids; plant expression plasmids; other series of plasmids
Plasmid size: 10802bp
Plasmid label: ccdB lethal gene
Prokaryotic resistance: kanamycin Kan
Screening markers: hygromycin Hyg
Cloned strains of Escherichia coli, Stbl3 and other Escherichia coli
Culture conditions: 37 centigrade, aerobic, LB
Expressing the host: plant
Induction mode: no induction, constituent expression
3'sequencing primers: NOS-ter:cccatctcataaataacgtc
pCXSN Description
PCXSN is a plant overexpression vector, which is transformed into T vector after Xcm I digestion, and can be transformed directly into the gene.
pCXSN Reference
A versatile zero background T-vector system for gene cloning and functional genomics.
Plant Physiol. 2009 Jul;150(3):1111-21. doi: 10.1104/pp.109.137125. Epub 2009 Apr 29.
Chen S1, Songkumarn P, Liu J, Wang GL.

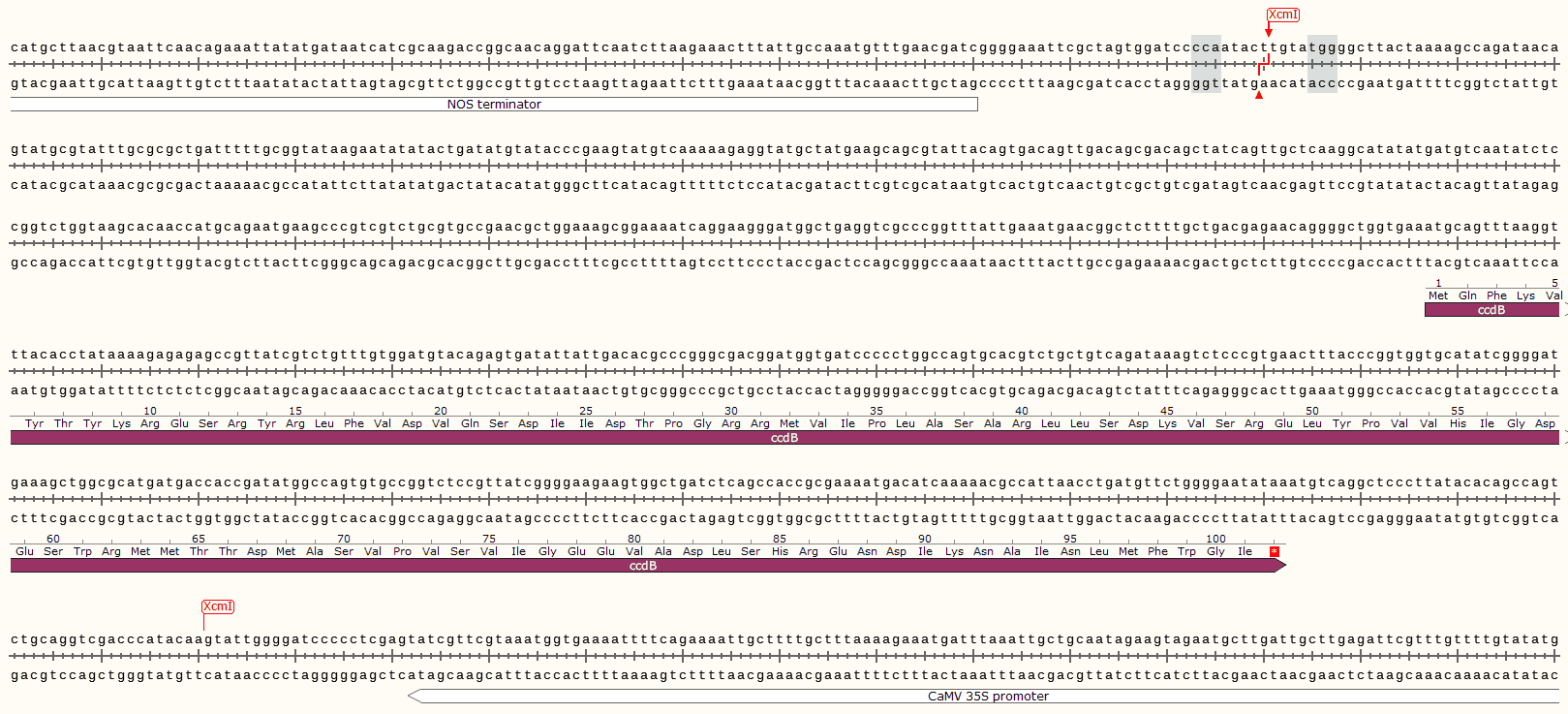

pCXSN Sequence
LOCUS Exported 10802 bp ds-DNA circular SYN 25-AUG-2017
DEFINITION synthetic circular DNA
KEYWORDS pCXSN
SOURCE synthetic DNA construct
ORGANISM synthetic DNA construct
REFERENCE 1 (bases 1 to 10802)
TITLE Direct Submission
JOURNAL Exported Aug 25, 2017
FEATURES Location/Qualifiers
source 1..10802
/organism="synthetic DNA construct"
/mol_type="other DNA"
terminator 8..260
/label=NOS terminator
/note="nopaline synthase terminator and poly(A) signal"
primer_bind 119..138
/label=NOS-ter
CDS 627..932
/codon_start=1
/gene="ccdB"
/product="CcdB, a bacterial toxin that poisons DNA gyrase"
/label=ccdB
/note="Plasmids containing the ccdB gene cannot be
propagated in standard E. coli strains."
/translation="MQFKVYTYKRESRYRLFVDVQSDIIDTPGRRMVIPLASARLLSDK
VSRELYPVVHIGDESWRMMTTDMASVPVSVIGEEVADLSHRENDIKNAINLMFWGI"
promoter complement(1002..1892)
/label=CaMV 35S promoter
/note="strong constitutive promoter from cauliflower mosaic
virus"
misc_feature 2126..2150
/label=RB T-DNA repeat
/note="right border repeat from nopaline C58 T-DNA"
CDS 3449..4078
/codon_start=1
/product="stability protein from the Pseudomonas plasmid
pVS1 (Heeb et al., 2000)"
/label=pVS1 StaA
/translation="MKVIAVLNQKGGSGKTTIATHLARALQLAGADVLLVDSDPQGSAR
DWAAVREDQPLTVVGIDRPTIDRDVKAIGRRDFVVIDGAPQAADLAVSAIKAADFVLIP
VQPSPYDIWATADLVELVKQRIEVTDGRLQAAFVVSRAIKGTRIGGEVAEALAGYELPI
LESRITQRVSYPGTAAAGTTVLESEPEGDAAREVQALAAEIKSKLI"
CDS 4512..5579
/codon_start=1
/product="replication protein from the Pseudomonas plasmid
pVS1 (Heeb et al., 2000)"
/label=pVS1 RepA
/translation="GRKPSGPVQIGAALGDDLVEKLKAAQAAQRQRIEAEARPGESWQA
AADRIRKESRQPPAAGAPSIRKPPKGDEQPDFFVPMLYDVGTRDSRSIMDVAVFRLSKR
DRRAGEVIRYELPDGHVEVSAGPAGMASVWDYDLVLMAVSHLTESMNRYREGKGDKPGR
VFRPHVADVLKFCRRADGGKQKDDLVETCIRLNTTHVAMQRTKKAKNGRLVTVSEGEAL
ISRYKIVKSETGRPEYIEIELADWMYREITEGKNPDVLTVHPDYFLIDPGIGRFLYRLA
RRAAGKAEARWLFKTIYERSGSAGEFKKFCFTVRKLIGSNDLPEYDLKEEAGQAGPILV
MRYRNLIEGEASAGS"
rep_origin 5645..5839
/label=pVS1 oriV
/note="origin of replication for the Pseudomonas plasmid
pVS1 (Heeb et al., 2000)"
misc_feature 6183..6323
/label=bom
/note="basis of mobility region from pBR322"
rep_origin complement(6509..7097)
/direction=LEFT
/label=pUC ori
/note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
replication"
CDS complement(7184..7978)
/codon_start=1
/gene="aphA-3"
/product="aminoglycoside phosphotransferase"
/label=KanR
/note="confers resistance to kanamycin"
/translation="MAKMRISPELKKLIEKYRCVKDTEGMSPAKVYKLVGENENLYLKM
TDSRYKGTTYDVEREKDMMLWLEGKLPVPKVLHFERHDGWSNLLMSEADGVLCSEEYED
EQSPEKIIELYAECIRLFHSIDISDCPYTNSLDSRLAELDYLLNNDLADVDCENWEEDT
PFKDPRELYDFLKTEKPEEELVFSHGDLGDSNIFVKDGKVSGFIDLGRSGRADKWYDIA
FCVRSIREDIGEEQYVELFFDLLGIKPDWEKIKYYILLDELF"
misc_feature 8403..8427
/label=LB T-DNA repeat
/note="left border repeat from nopaline C58 T-DNA"
polyA_signal 8505..8679
/label=CaMV poly(A) signal
/note="cauliflower mosaic virus polyadenylation signal"
CDS complement(8719..9744)
/codon_start=1
/gene="aph(4)-Ia"
/product="aminoglycoside phosphotransferase from E. coli"
/label=HygR
/note="confers resistance to hygromycin"
/translation="MKKPELTATSVEKFLIEKFDSVSDLMQLSEGEESRAFSFDVGGRG
YVLRVNSCADGFYKDRYVYRHFASAALPIPEVLDIGEFSESLTYCISRRAQGVTLQDLP
ETELPAVLQPVAEAAAADLSQTSGFGPFGPQGIGQYTTWRDFICAIADPHVYHWQ
TVMDDTVSASVAQALDELMLWAEDCPEVRHLVHADFGSNNVLTDNGRITAVIDWSEAMF
GDSQYEVANIFFWRPWLACMEQQTRYFERRHPELAGSPRLRAYMLRIGLDQLYQSLVDG
NFDDAAWAQGRCDAIVRSGAGTVGRTQIARRSAAVWTDGCVEVLADSGNRRPSTRPRAK
K"
promoter complement(9811..10488)
/label=CaMV 35S promoter (enhanced)
/note="cauliflower mosaic virus 35S promoter with a
duplicated enhancer region"
