pcDNA6/myc-His A

编号	载体名称
YB60235	pcDNA6/myc-His   A

pcDNA6/myc-His A载体基本信息

载体名称:	pcDNA6/myc-His A
质粒类型:	哺乳动物表达载体；cDNA表达载体
高拷贝/低拷贝:	高拷贝
克隆方法:	限制性内切酶，多克隆位点
启动子:	CMV
载体大小:	5126 bp
5' 测序引物及序列:	T7 Forward: 5’-TAATACGACTCACTATAGGG-3’
3' 测序引物及序列:	BGH Reverse: 5’-TAGAAGGCACAGTCGAGG-3’
载体标签:	myc Epitope(C-端）；His tag(C-端）
载体抗性:	氨苄青霉素
筛选标记:	Blasticidin
克隆菌株:	TOP10F´, JM109 ,  INVaF´
宿主细胞（系）:	常规细胞系，如293、Hela等
备注:	pcDNA6/myc-His A载体是cDNA的表达与克隆载体；   CMV启动子驱动目的基因的过表达；   易于克隆到其它载体中去；   pcDNA6/myc-His A,B,C仅阅读框不同。
稳定性:	瞬表达 或 稳表达
组成型/诱导型:	组成型
病毒/非病毒:	非病毒

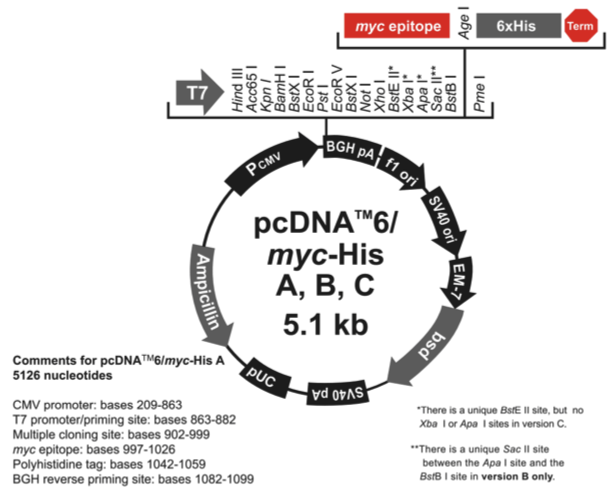

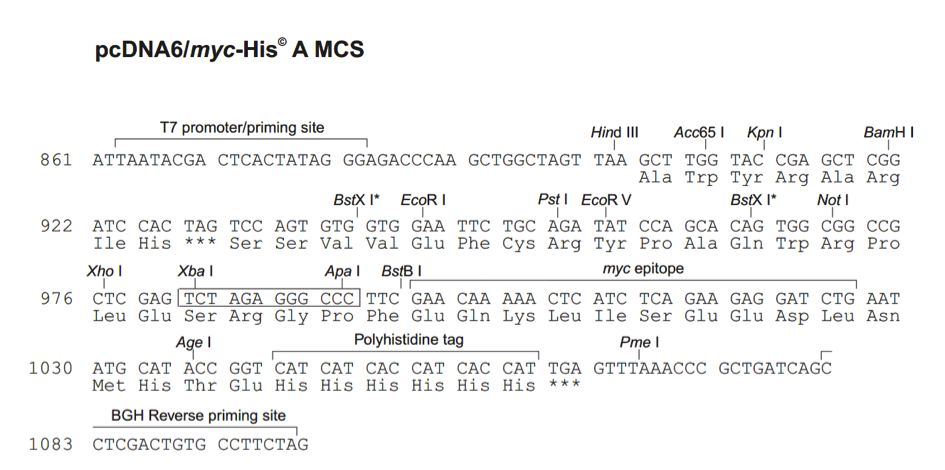

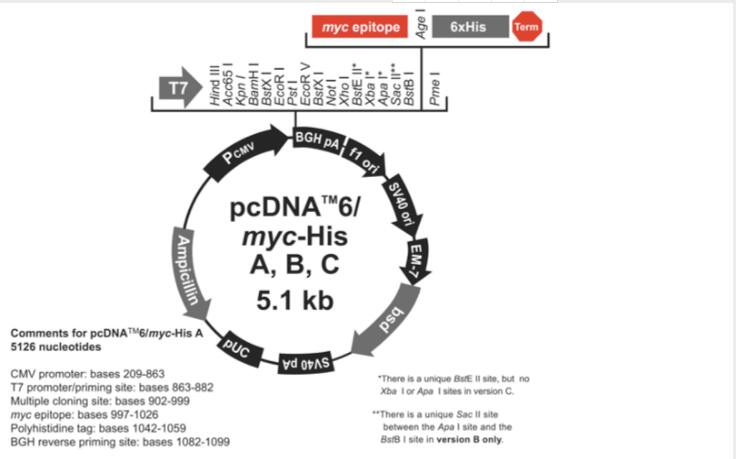

pcDNA6/myc-His A载体质粒图谱和多克隆位点信息









pcDNA6/myc-His A载体简介

pcDNA.6/myc-His A, B, and C are 5.1-kb vectors designed for overproduction of recombinant proteins in mammalian cell lines. High-level stable and transient expression can be carried out in most mammalian cells.

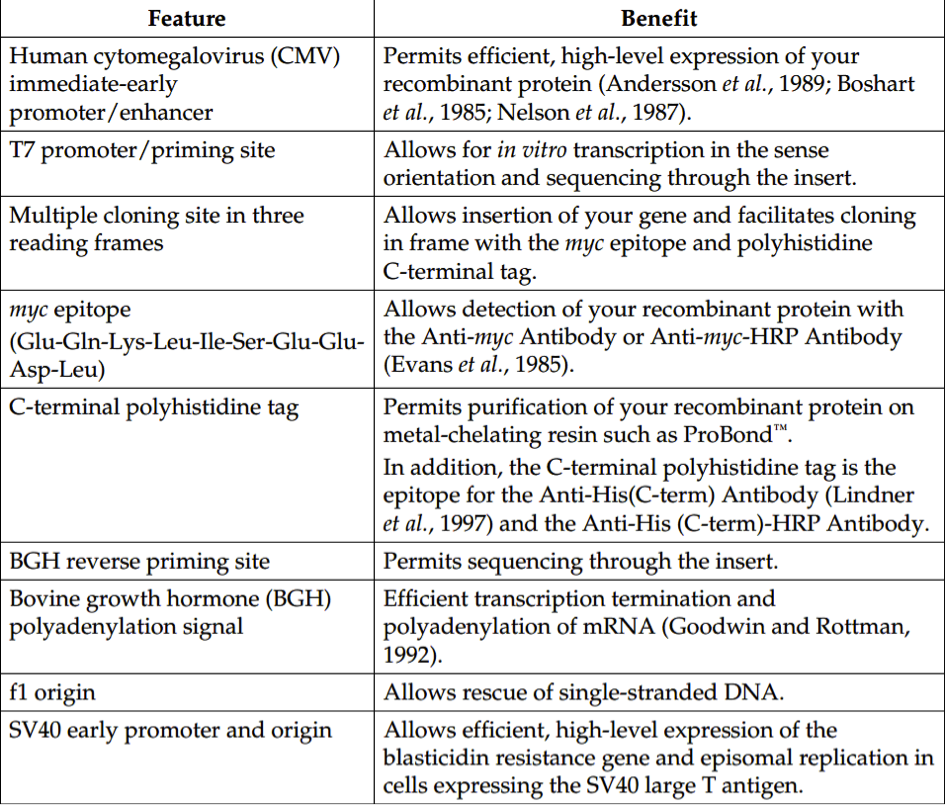

pcDNA.6/myc-His载体含有以下元件:



 Human cytomegalovirus immediate-early (CMV) promoter for high-level expression in a wide range of mammalian cells.

 Three reading frames to facilitate in-frame cloning with a C-terminal peptide encoding the myc (c-myc) epitope and a polyhistidine (6xHis) metal-binding tag.

 Blasticidin resistance gene (bsd) for selection of stable cell lines (Kimura et al.,1994).

Episomal replication in cell lines that are latently infected with SV40 or that express the SV40 large T antigen (e.g., COS7).

The control plasmid, pcDNA.6/myc-His/lacZ, is included for use as a positive control for transfection, expression, and detection in the cell line of choice.



使用pcDNA6/myc-His 载体克隆和表达目的基因的实验流程如下：

 Consult the multiple cloning sites described on pages 3–5 to determine which vector (A, B, or C) should be used to clone your gene in-frame with the C-terminal myc epitope and the polyhistidine tag. Ligate your insert into the appropriate vector and transform into E. coli. Select transformants on 50–100 μg/ml ampicillin or 50 μg/ml blasticidin.

 Analyze your transformants for the presence of the insert by restriction digestion.

 Select a transformant with the correct restriction pattern and use sequencing to confirm that your gene is cloned in-frame with the C-terminal peptide.

 Transfect your construct into the cell line of choice using your own method of transfection.

  Test for expression of your recombinant gene by western blot analysis or functional assay. For antibodies to the myc epitope or the C-terminal polyhistidine tag, see the next page.

  To purify your recombinant protein, you may use metal-chelating resin such as ProBond. ProBond. resin is available separately.



pcDNA6/myc-His A载体序列

ORIGIN

    1 GACGGATCGG GAGATCTCCC GATCCCCTAT GGTGCACTCT CAGTACAATC TGCTCTGATG

   61 CCGCATAGTT AAGCCAGTAT CTGCTCCCTG CTTGTGTGTT GGAGGTCGCT GAGTAGTGCG

  121 CGAGCAAAAT TTAAGCTACA ACAAGGCAAG GCTTGACCGA CAATTGCATG AAGAATCTGC

  181 TTAGGGTTAG GCGTTTTGCG CTGCTTCGCG ATGTACGGGC CAGATATACG CGTTGACATT

  241 GATTATTGAC TAGTTATTAA TAGTAATCAA TTACGGGGTC ATTAGTTCAT AGCCCATATA

  301 TGGAGTTCCG CGTTACATAA CTTACGGTAA ATGGCCCGCC TGGCTGACCG CCCAACGACC

  361 CCCGCCCATT GACGTCAATA ATGACGTATG TTCCCATAGT AACGCCAATA GGGACTTTCC

  421 ATTGACGTCA ATGGGTGGAG TATTTACGGT AAACTGCCCA CTTGGCAGTA CATCAAGTGT

  481 ATCATATGCC AAGTACGCCC CCTATTGACG TCAATGACGG TAAATGGCCC GCCTGGCATT

  541 ATGCCCAGTA CATGACCTTA TGGGACTTTC CTACTTGGCA GTACATCTAC GTATTAGTCA

  601 TCGCTATTAC CATGGTGATG CGGTTTTGGC AGTACATCAA TGGGCGTGGA TAGCGGTTTG

  661 ACTCACGGGG ATTTCCAAGT CTCCACCCCA TTGACGTCAA TGGGAGTTTG TTTTGGCACC

  721 AAAATCAACG GGACTTTCCA AAATGTCGTA ACAACTCCGC CCCATTGACG CAAATGGGCG

  781 GTAGGCGTGT ACGGTGGGAG GTCTATATAA GCAGAGCTCT CTGGCTAACT AGAGAACCCA

  841 CTGCTTACTG GCTTATCGAA ATTAATACGA CTCACTATAG GGAGACCCAA GCTGGCTAGT

  901 TAAGCTTGGT ACCGAGCTCG GATCCACTAG TCCAGTGTGG TGGAATTCTG CAGATATCCA

  961 GCACAGTGGC GGCCGCTCGA GTCTAGAGGG CCCTTCGAAC AAAAACTCAT CTCAGAAGAG

 1021 GATCTGAATA TGCATACCGG TCATCATCAC CATCACCATT GAGTTTAAAC CCGCTGATCA

 1081 GCCTCGACTG TGCCTTCTAG TTGCCAGCCA TCTGTTGTTT GCCCCTCCCC CGTGCCTTCC

 1141 TTGACCCTGG AAGGTGCCAC TCCCACTGTC CTTTCCTAAT AAAATGAGGA AATTGCATCG

 1201 CATTGTCTGA GTAGGTGTCA TTCTATTCTG GGGGGTGGGG TGGGGCAGGA CAGCAAGGGG

 1261 GAGGATTGGG AAGACAATAG CAGGCATGCT GGGGATGCGG TGGGCTCTAT GGCTTCTGAG

 1321 GCGGAAAGAA CCAGCTGGGG CTCTAGGGGG TATCCCCACG CGCCCTGTAG CGGCGCATTA

 1381 AGCGCGGCGG GTGTGGTGGT TACGCGCAGC GTGACCGCTA CACTTGCCAG CGCCCTAGCG

 1441 CCCGCTCCTT TCGCTTTCTT CCCTTCCTTT CTCGCCACGT TCGCCGGCTT TCCCCGTCAA

 1501 GCTCTAAATC GGGGGCTCCC TTTAGGGTTC CGATTTAGTG CTTTACGGCA CCTCGACCCC

 1561 AAAAAACTTG ATTAGGGTGA TGGTTCACGT AGTGGGCCAT CGCCCTGATA GACGGTTTTT

 1621 CGCCCTTTGA CGTTGGAGTC CACGTTCTTT AATAGTGGAC TCTTGTTCCA AACTGGAACA

 1681 ACACTCAACC CTATCTCGGT CTATTCTTTT GATTTATAAG GGATTTTGCC GATTTCGGCC

 1741 TATTGGTTAA AAAATGAGCT GATTTAACAA AAATTTAACG CGAATTAATT CTGTGGAATG

 1801 TGTGTCAGTT AGGGTGTGGA AAGTCCCCAG GCTCCCCAGC AGGCAGAAGT ATGCAAAGCA

 1861 TGCATCTCAA TTAGTCAGCA ACCAGGTGTG GAAAGTCCCC AGGCTCCCCA GCAGGCAGAA

 1921 GTATGCAAAG CATGCATCTC AATTAGTCAG CAACCATAGT CCCGCCCCTA ACTCCGCCCA

 1981 TCCCGCCCCT AACTCCGCCC AGTTCCGCCC ATTCTCCGCC CCATGGCTGA CTAATTTTTT

 2041 TTATTTATGC AGAGGCCGAG GCCGCCTCTG CCTCTGAGCT ATTCCAGAAG TAGTGAGGAG

 2101 GCTTTTTTGG AGGCCTAGGC TTTTGCAAAA AGCTCCCGGG AGCTTGTATA TCCATTTTCG

 2161 GATCTGATCA GCACGTGTTG ACAATTAATC ATCGGCATAG TATATCGGCA TAGTATAATA

 2221 CGACAAGGTG AGGAACTAAA CCATGGCCAA GCCTTTGTCT CAAGAAGAAT CCACCCTCAT

 2281 TGAAAGAGCA ACGGCTACAA TCAACAGCAT CCCCATCTCT GAAGACTACA GCGTCGCCAG

 2341 CGCAGCTCTC TCTAGCGACG GCCGCATCTT CACTGGTGTC AATGTATATC ATTTTACTGG

 2401 GGGACCTTGT GCAGAACTCG TGGTGCTGGG CACTGCTGCT GCTGCGGCAG CTGGCAACCT

 2461 GACTTGTATC GTCGCGATCG GAAATGAGAA CAGGGGCATC TTGAGCCCCT GCGGACGGTG

 2521 CCGACAGGTG CTTCTCGATC TGCATCCTGG GATCAAAGCC ATAGTGAAGG ACAGTGATGG

 2581 ACAGCCGACG GCAGTTGGGA TTCGTGAATT GCTGCCCTCT GGTTATGTGT GGGAGGGCTA

 2641 AGCACTTCGT GGCCGAGGAG CAGGACTGAC ACGTGCTACG AGATTTCGAT TCCACCGCCG

 2701 CCTTCTATGA AAGGTTGGGC TTCGGAATCG TTTTCCGGGA CGCCGGCTGG ATGATCCTCC

 2761 AGCGCGGGGA TCTCATGCTG GAGTTCTTCG CCCACCCCAA CTTGTTTATT GCAGCTTATA

 2821 ATGGTTACAA ATAAAGCAAT AGCATCACAA ATTTCACAAA TAAAGCATTT TTTTCACTGC

 2881 ATTCTAGTTG TGGTTTGTCC AAACTCATCA ATGTATCTTA TCATGTCTGT ATACCGTCGA

 2941 CCTCTAGCTA GAGCTTGGCG TAATCATGGT CATAGCTGTT TCCTGTGTGA AATTGTTATC

 3001 CGCTCACAAT TCCACACAAC ATACGAGCCG GAAGCATAAA GTGTAAAGCC TGGGGTGCCT

 3061 AATGAGTGAG CTAACTCACA TTAATTGCGT TGCGCTCACT GCCCGCTTTC CAGTCGGGAA

 3121 ACCTGTCGTG CCAGCTGCAT TAATGAATCG GCCAACGCGC GGGGAGAGGC GGTTTGCGTA

 3181 TTGGGCGCTC TTCCGCTTCC TCGCTCACTG ACTCGCTGCG CTCGGTCGTT CGGCTGCGGC

 3241 GAGCGGTATC AGCTCACTCA AAGGCGGTAA TACGGTTATC CACAGAATCA GGGGATAACG

 3301 CAGGAAAGAA CATGTGAGCA AAAGGCCAGC AAAAGGCCAG GAACCGTAAA AAGGCCGCGT

 3361 TGCTGGCGTT TTTCCATAGG CTCCGCCCCC CTGACGAGCA TCACAAAAAT CGACGCTCAA

 3421 GTCAGAGGTG GCGAAACCCG ACAGGACTAT AAAGATACCA GGCGTTTCCC CCTGGAAGCT

 3481 CCCTCGTGCG CTCTCCTGTT CCGACCCTGC CGCTTACCGG ATACCTGTCC GCCTTTCTCC

 3541 CTTCGGGAAG CGTGGCGCTT TCTCATAGCT CACGCTGTAG GTATCTCAGT TCGGTGTAGG

 3601 TCGTTCGCTC CAAGCTGGGC TGTGTGCACG AACCCCCCGT TCAGCCCGAC CGCTGCGCCT

 3661 TATCCGGTAA CTATCGTCTT GAGTCCAACC CGGTAAGACA CGACTTATCG CCACTGGCAG

 3721 CAGCCACTGG TAACAGGATT AGCAGAGCGA GGTATGTAGG CGGTGCTACA GAGTTCTTGA

 3781 AGTGGTGGCC TAACTACGGC TACACTAGAA GAACAGTATT TGGTATCTGC GCTCTGCTGA

 3841 AGCCAGTTAC CTTCGGAAAA AGAGTTGGTA GCTCTTGATC CGGCAAACAA ACCACCGCTG

 3901 GTAGCGGTGG TTTTTTTGTT TGCAAGCAGC AGATTACGCG CAGAAAAAAA GGATCTCAAG

 3961 AAGATCCTTT GATCTTTTCT ACGGGGTCTG ACGCTCAGTG GAACGAAAAC TCACGTTAAG

 4021 GGATTTTGGT CATGAGATTA TCAAAAAGGA TCTTCACCTA GATCCTTTTA AATTAAAAAT

 4081 GAAGTTTTAA ATCAATCTAA AGTATATATG AGTAAACTTG GTCTGACAGT TACCAATGCT

 4141 TAATCAGTGA GGCACCTATC TCAGCGATCT GTCTATTTCG TTCATCCATA GTTGCCTGAC

 4201 TCCCCGTCGT GTAGATAACT ACGATACGGG AGGGCTTACC ATCTGGCCCC AGTGCTGCAA

 4261 TGATACCGCG AGACCCACGC TCACCGGCTC CAGATTTATC AGCAATAAAC CAGCCAGCCG

 4321 GAAGGGCCGA GCGCAGAAGT GGTCCTGCAA CTTTATCCGC CTCCATCCAG TCTATTAATT

 4381 GTTGCCGGGA AGCTAGAGTA AGTAGTTCGC CAGTTAATAG TTTGCGCAAC GTTGTTGCCA

 4441 TTGCTACAGG CATCGTGGTG TCACGCTCGT CGTTTGGTAT GGCTTCATTC AGCTCCGGTT

 4501 CCCAACGATC AAGGCGAGTT ACATGATCCC CCATGTTGTG CAAAAAAGCG GTTAGCTCCT

 4561 TCGGTCCTCC GATCGTTGTC AGAAGTAAGT TGGCCGCAGT GTTATCACTC ATGGTTATGG

 4621 CAGCACTGCA TAATTCTCTT ACTGTCATGC CATCCGTAAG ATGCTTTTCT GTGACTGGTG

 4681 AGTACTCAAC CAAGTCATTC TGAGAATAGT GTATGCGGCG ACCGAGTTGC TCTTGCCCGG

 4741 CGTCAATACG GGATAATACC GCGCCACATA GCAGAACTTT AAAAGTGCTC ATCATTGGAA

 4801 AACGTTCTTC GGGGCGAAAA CTCTCAAGGA TCTTACCGCT GTTGAGATCC AGTTCGATGT

 4861 AACCCACTCG TGCACCCAAC TGATCTTCAG CATCTTTTAC TTTCACCAGC GTTTCTGGGT

 4921 GAGCAAAAAC AGGAAGGCAA AATGCCGCAA AAAAGGGAAT AAGGGCGACA CGGAAATGTT

 4981 GAATACTCAT ACTCTTCCTT TTTCAATATT ATTGAAGCAT TTATCAGGGT TATTGTCTCA

 5041 TGAGCGGATA CATATTTGAA TGTATTTAGA AAAATAAACA AATAGGGGTT CCGCGCACAT

 5101 TTCCCCGAAA AGTGCCACCT GACGTC
