VitroGel® STEM 3D培养水凝胶 VHM02

ready-to-use, xeno-free@(animal origin-free)@hydrogel system for hPSCs 3D static suspension culture and scale-up


Overview

VitroGel^® STEM is a xeno-free (animal origin-free) hydrogel system developed to improve the performance of three-dimensional (3D) static suspension cultures and scale-up of human pluripotent stem cells (hPSCs) to create a high-throughput system to model various tissue and disease states.

This hydrogel system is ready-to-use with an optimized formulation that fully supports the rapid expansion of high-quality 3D stem cell spheroids with pluripotent properties. hPSCs directly thawed from liquid nitrogen or passaged from 2D matrix coated culture vessels can be immediately mixed with the hydrogel solution for static suspension cultures. Moreover, the optimization protocol is ideal for time-sensitive experiments, as it does not require excessive medium exchanges, which can ultimately save on time and materials. This hydrogel system is compatible with most hPSC culture media and tissue culture vessels. Due to the unique static suspension culture procedure, the requirement for microcarriers for large-scale bioreactors is eliminated, making the cell harvesting simple and effective. The 3D stem cell spheroids that are developed using this system can be used for further sub-culturing, patterned differentiating, organoid developing, or re-establishing 2D culture morphologies.

Specifications

Formulation	Xeno-free, functional hydrogel
Use	3D static suspension culture for hPSCs
Operation	Ready-to-use at room temperature
Biocompatibility	Biocompatible, safe for animal studies
Injection	Injectable hydrogel for in vivo studies and lab automation
Cell Harvesting	20 min cell recovery using VitroGel Cell Recovery Solution
pH	Neutral
Storage	Store at 2-8°C. Ships at ambient temperature
Sizes	10 mL and 2 mL
Usage	10 mL hydrogel good for 90-180 mL suspension culture 2 mL hydrogel good for 15-30 mL suspension culture

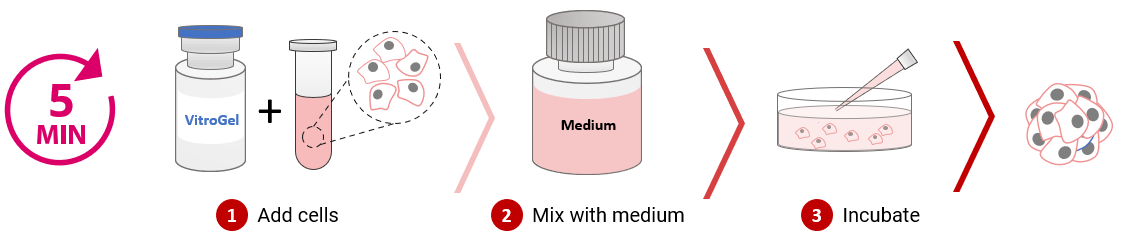

“Just add cells” 5 min protocol. No matrix coating required.

VitroGel STEM is ready-to-use. Just mix with your hPSCs. There is no laborous matrix coating required to maintain and expand your stem cells.

Advantages of the VitroGel STEM

Flexible

• Undifferentiated stem cells can be easily transferred to 96 well plates, T-flasks, shaking flasks, and bioreactors, making them compatible with most culture vessels

• Compatible with the majority of stem cell culture media

• Easily switched back to 2D culture systems if needed

Easy to use

• Easily seed stem cells directly from liquid N2 or 2D culture systems

• Efficient cell harvesting or sub culturing without additional reagent

High performance

• Can be used for stem cell scale-up with bioreactors at ultra-low agitating speed to maintain high cell viability and excellent cell growth rates

• Yields high-quality 3D stem cells with full pluripotent properties

Cost-effective

• Eliminates the need for matrix coating or microcarriers

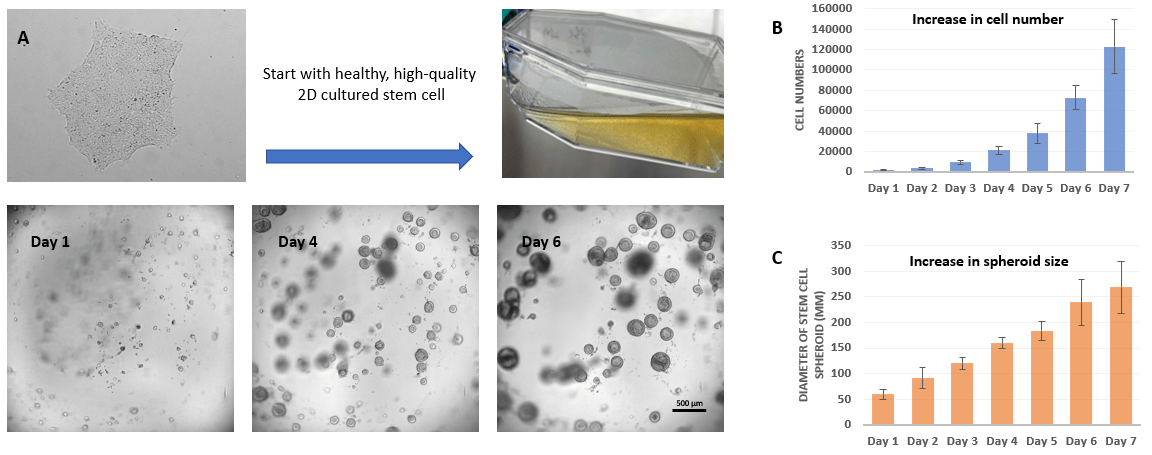

• Eliminates the need for shakers or stirrers for laboratory scale stem cell suspension culturesFigure 1. 3D static suspension culture of hPSC from 2D matrix culture
  As shown in Figure 1, after 24 hours, small hPSC spheroids starts to form. From day 1 to 6, cells in the suspension cultures quickly grow, leading to the generation of healthy and high-quality stem cell spheroids. After day 3, cell number grow exponentially (Figure 1B) and spheroid size steadily increases (Figure 1C). The hPSC spheroids display characteristics of shallow craters or pockmarks, indicating expression of hPSC markers and successful expansion of healthy and high-quality stem cell spheroids. The resulting spheroids provide researchers with large numbers of healthy hPSCs for further experiments.

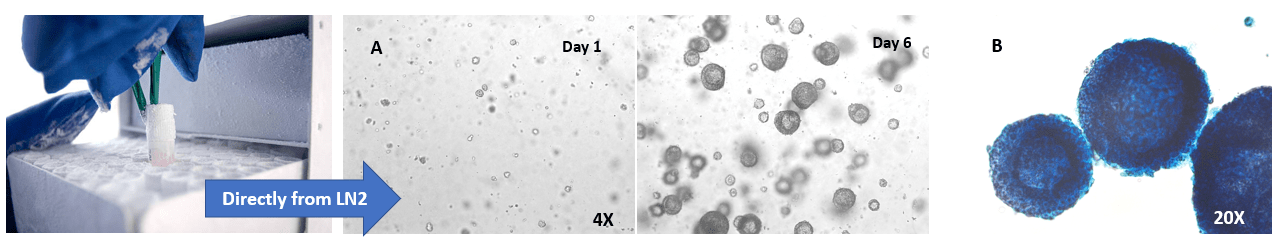

Figure 2.  3D static suspension culture of hPSC directly from Liquid Nitrogen (LN2)
Start the suspension culture by using the healthy and high-quality cells directly from LN2. hPSC-hydrogel aggregates successfully to form healthy spheroids after 1 day in culture. The hPSC spheroids continue to expand from day 1 to 6 (Figure 2A). The resulting hPSC spheroids also show hallmark features of healthy and high-quality stem cell spheroids, i.e., shallow craters or pockmarks. Figure 2B shows that hPSC static suspension cultures from liquid nitrogen are positive for Alkaline Phosphatase, indicating successful expansion of healthy stem cell populations.

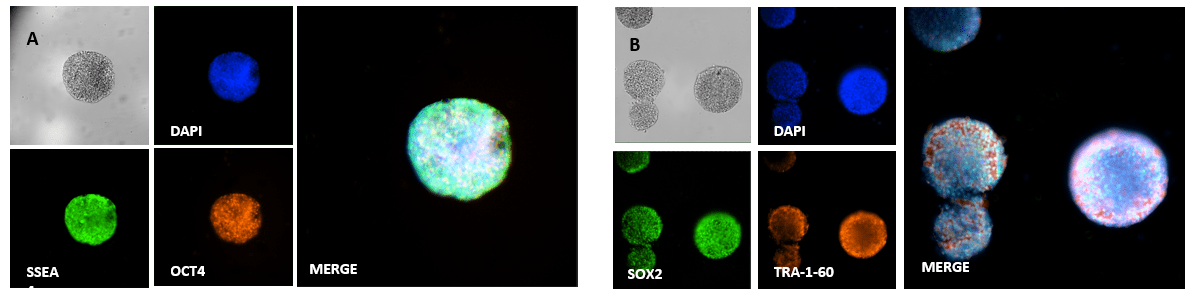

Figure 3. Immunofluorescence images of hPSC spheroids with key pluripotent stem cell markers
VitroGel STEM ensures the undifferentiated state of stem cell lines during scale-up. As shown in Figure 3, hPSC aggregates in VitroGel STEM hydrogel and retain pluripotency after 7 days, evidenced by the expression of key pluripotent stem cell markers, SSEA4, OCT4, SOX2, and TRA-1-60.
