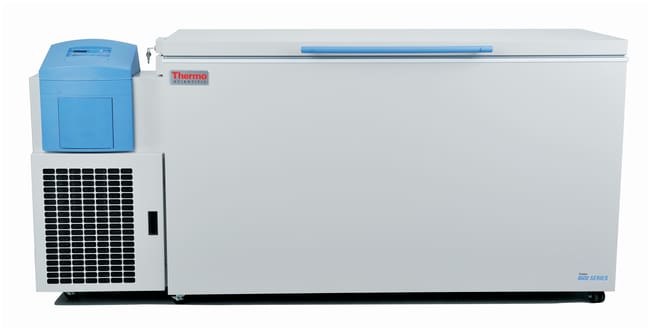

ic™ Forma 8600 系列 -86°C 实验室冰箱 标准性能超低温冰箱 卧式超低温冰箱 803CV、813CV、817CV、820CVThermo Scientific™ Forma 8600 系列 -86°C 实验室冰箱 标准性能超低温冰箱 卧式超低温冰箱 803CV、813CV、817CV、820CV
Thermo Scientific™ Forma 8600 系列 -86°C 实验室冰箱 标准性能超低温冰箱 卧式超低温冰箱 803CV、813CV、817CV、820CV
上海辅泽商贸有限公司
Thermo Scientific™ Forma 8600 系列 -86°C 实验室冰箱 标准性能超低温冰箱 卧式超低温冰箱 803CV、813CV、817CV、820CV
上海辅泽商贸有限公司
803CV/813CV/817CV/820CV
规格: | 803CV | 产品价格: | 询价 |
---|---|---|---|
规格: | 813CV | 产品价格: | 询价 |
规格: | 817CV | 产品价格: | 询价 |
规格: | 820CV | 产品价格: | 询价 |
使用 Thermo Scientific™ Forma 8600 系列 -86°C 卧式超低温冰箱可靠地储存样品。 该款冰箱拥有 Forma 900 和 Forma 700 立式系列的所有样品保护功能,提供四种尺寸以满足各种需求。
货号 | 单位规格 | 容纳 | Dimensions (DxWxH) Exterior | Electrical Requirements | 插头类型 | 单价 (CNY) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
803CV | Each | 63 boxes | 29.5 x 28.5 x 43.8 in. (75.9 x 72.4 x 111.3 cm) | 230 V 50 Hz | European | 申请报价 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
完整参数 ▼
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
813CV | Each | 252 boxes | 33.4 x 72 x 40.5 in. (84.8 x 182.9 x 102.9 cm) | 230 V 50 Hz | European | 申请报价 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
完整参数 ▼
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
817CV | Each | 348 boxes | 33.8 x 87.6 x 40.5 in. (85.9 x 222.5 x 102.9 cm) | 230 V 50 Hz | European | 申请报价 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
完整参数 ▼
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
820CV | Each | 396 boxes | 33.4 x 96 x 40.5 in. (84.8 x 243.8 x 102.9 cm) | 230 V 50 Hz | European | 申请报价 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
完整参数 ▼
|
Versatile and reliable sample storage, these ultra-low chest freezers come in a variety of sizes offering 2-inch box storage from 63 up to 396 capacity, plus a full range of racking solutions.
When you need to frequently access samples alongside your long-term storage we have capacities from 216 2-inch boxes up to 360.
These performance ultra-low upright freezers offer 2-inch box storage capacity from 240 boxes up to 600 boxes to meet your needs.
63 Boxes* | 252 Boxes | 348 Boxes | 396 Boxes | |
---|---|---|---|---|
Request a Quote | ||||
Capacity | 3 cu. ft. (85L) | 12.7 cu. ft. (360L) | 17 cu. ft. (481L) | 20 cu. ft. (566L) |
2mL Vial Capacity | 6,300 | 25,200 | 34,800 | 39,600 |
Interior (DxWxH) | 18.5 x 18.5 x 16.5 in. 47.0 x 47.0 x 41.9cm |
42.4 x 18.5 x 27.8 in. 108.0 x 47.0 x 70.6cm |
58.5 x 18.5 x 27.8 in. 147.3 x 47.0 x 70.6cm |
66.4 x 18.5 x 27.8 in. 168.7 x 47.0 x 70.6cm |
Exterior (DxWxH) | 32.3 x 28.7 x 43.8 in. 72.9 x 82.0 x 111.3cm |
72.0 x 33.4 x 40.6 in. 182.9 x 84.8 x 103.1cm |
87.6 x 33.4 x 40.6 in. 222.5 x 84.8 x 103.1cm |
90.0 x 33.4 x 40.6 in. 243.8 x 84.8 x 103.1cm |
Shipping Weight | 432 lbs. (196kg) | 716 lbs. (325kg) | 821 lbs. (372kg) | 833 lbs. (378kg) |
*Box capacity is in terms of 2-inch (5cm) high boxes.
216 Boxes* | 288 Boxes | 360 Boxes | |
---|---|---|---|
Request a Quote | |||
Capacity | 13 cu. ft. (368L) | 17.3 cu. ft. (490L) | 23 cu. ft. (651L) |
2mL Vial Capacity | 21,600 | 28,800 | 36,000 |
Interior (DxWxH) | 22.5 x 19.4 x 51.5 in. (57.2 x 49.3 x 130.8cm) |
22.5 x 25.4 x 51.5 in. (57.2 x 64.5 x 130.8cm) |
30.0 x 25.4 x 51.5 in. (76.2 x 64.5 x 130.8cm) |
Exterior (DxWxH) | 33.3 x 32.9 x 77.9 in. (84.6 x 83.6 x 197.9cm) |
33.3 x 38.9 x 77.9 in. (84.6 x 98.8 x 197.9cm) |
40.8 x 38.9 x 77.9 in. (103.6 x 98.8 x 197.9cm) |
Shipping Weight | 696 lbs. (316kg) | 795 lbs. (361kg) | 839 lbs. (381kg) |
*Box capacity is in terms of 2-inch (5cm) high boxes.
240 Boxes* | 320 Boxes | 400 Boxes | 600 Boxes | |
---|---|---|---|---|
Request a Quote | ||||
Capacity | 13 cu. ft. (368L) | 17.3 cu. ft. (490L) | 23 cu. ft. (651L) | 28 cu. ft. (793L) |
2mL Vial Capacity | 24,000 | 32,000 | 40,000 | 60,000 |
Interior (DxWxH) | 22.05 x 19.4 x 51.5 in. (57.2 x 49.3 x 130.8cm) |
22.5 x 25.4 x 51.5 in. (57.2 x 64.5 x 130.8cm) |
30.0 x 25.4 x 51.5 in. (76.2 x 64.5 x 130.8cm) |
36.0 x 26.5 x 51.5 in. (91.4 x 67.3 x 130.8cm) |
Exterior (DxWxH) | 33.3 x 32.9 x 77.9 in. (84.6 x 83.6 x 197.9cm) |
33.3 x 38.9 x 77.9 in. (84.6 x 98.8 x 197.9cm) |
40.8 x 38.9 x 77.9 in. (103.6 x 98.8 x 197.9cm) |
46.8 x 38.9 x 77.9 in. (118.9 x 98.8 x 197.9cm) |
Shipping Weight | 696 lbs. (316kg) | 795 lbs. (361kg) | 839 lbs. (381kg) | 1060 lbs. (494kg) |
*Box capacity is in terms of 2-inch (5cm) high boxes.
Dependable sample storage is our standard.
Designed specifically for reliability, with a simplified operation, our performance ultra-low freezers (ULT) feature a range of upright and chest models for -80°C storage, but with a temperature range of -50°C to -86°C, so you can put your setpoint where you need it. Additional features include microprocessor controller, ergonomic door handles and a double-door upright option on our Forma models for frequently-accessed samples alongside your long-term storage.
Use our ULT selection guide, browse through our portfolio below, or ask one of our experts to help tailor a solution specific to your needs.
标准性能超低温冰箱 |
高级超低温冰箱 |
尊享 (TSX) 超低温冰箱 |
|
可靠的样品储存是我们的标准。 选择专为可靠性而设计的超低温冰箱。 | 具有日常保证的卓越性能。 使用经久耐用的超低温冰箱保护您的珍贵样品并降低您的能源成本。 | 为珍贵样品提供安心保护。 因为您应专注于您的研究。 而我们会专注于保障您样品的安全。 我们的TSX超低温冰箱即使在最苛刻的条件下也能提供强力保护。 | |
每日能耗 | 低至 12.0 kWh/天 | 低至 9.1 kWh/天 | 低至 7.9 kWh/天 |
开门后恢复时间 | 快至19分钟 | 快至11分钟 | 快至17分钟 |
排热(HVAC 负荷) | 中 | 低 | 最低 |
运行声音 | 正常 | 安静 | 最安静 |
制冷技术 | 2级级联压缩机 | 2级级联压缩机 | 2级变速压缩机 由V驱动技术供电 |
系统制冷剂 | HFC1 | 天然 HC2 | 天然 HC2 |
立式冰箱存储容量 | 240–600盒3 | 300–600盒3 | 400-700盒3 |
用户界面 | 微处理器控制 | 触摸屏 | 触摸屏 |
认证 | UL、cUL、CE、RoHS、xFDA4 | UL、cUL、CE、RoHS | UL、cUL、CE、RoHS |
外门 | 单门和双门 | 单门 | 单门 |
符合美国EPA SNAP标准 | ✓ | ✓ | |
符合欧盟F气体标准 | ✓ | ✓ | |
卧式冰箱 | ✓ | ||
软手柄 | ✓ | ||
薄壁高密度存储 | ✓ | ✓ | |
机载事件/温度记录 | ✓ | ✓ | |
云连接 | ✓ | ✓ | |
兼容远程监控 | ✓ | ✓ | ✓ |
访问/用户设置控制 | ✓ | ✓ | ✓ |
用于数据下载的USB端口 | ✓ | ✓ | |
设定点安全 | ✓ | ✓ | ✓ |
密码感应门禁卡控制选项 | ✓ | ✓ | |
探索标准性能ULT | 探索高级ULT | 探索尊享TSX ULT |
