pQE-32

pQE-32

pQE32载体基本信息

出品公司:	Ybscience
别名:	pQE32, pQE 32
质粒类型:	大肠杆菌蛋白表达载体
表达水平:	低拷贝
启动子:	T5
克隆方法:	多克隆位点，限制性内切酶
载体大小:	3462 bp
5' 测序引物及序列:	pQE30-F: AGCGGATAACAATTTCACACAG
3' 测序引物及序列:	pQE30-R: TTCTGAGGTCATTACTGGATC
载体标签:	N-His
载体抗性:	Ampicillin
备注:	pQE vectors and constructs can be maintained in any E. coli strain that is ampicillin-sensitive and carries the pREP4 repressor plasmid, or harbors the lacIq gene on the F-factor episome. 配套表达菌株为M15[pREP4].
稳定性:	瞬时表达 Transient
组成型:	组成型 Constitutive
病毒/非病毒:	非病毒

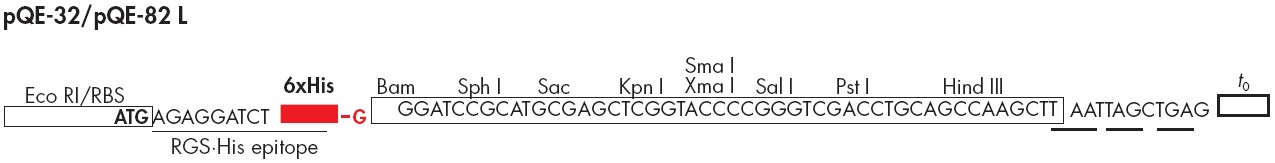

pQE32载体质粒图谱和多克隆位点信息

pQE32载体简介



pQE32载体序列

LOCUS       pQE-32    3462 bp     DNA  Circular    SYN
DEFINITION  pQE-32
ACCESSION
KEYWORDS
SOURCE
  ORGANISM  other sequences; artificial sequences; vectors.
COMMENT     This file is created by Vector NTI
            http://www.biofeng.com/
COMMENT     ORIGDB|GenBank
COMMENT     VNTAUTHORNAME|biofeng.com|
COMMENT     VNTOAUTHORAD1|Novagen Inc.|
FEATURES             Location/Qualifiers
     source          1..3462
                     /organism="pQE-32"
                     /mol_type="other DNA"
     gene            347..1006
                     /label="CAT/CamR"
                     /gene="CAT/CamR"
     CDS             347..1006
                     /label="ORF frame 2"
                     /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAF
                     LKTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETF
                     SSLWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNV
                     ANMDNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGG
                     A*"
     terminator      1074..1117
                     /label="rrnB_T1_terminator"
                     /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAF
                     LKTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETF
                     SSLWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNV
                     ANMDNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGG
                     A*"
     misc_feature    complement(1204..1226)
                     /label="pGEX_3_primer"
                     /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAF
                     LKTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETF
                     SSLWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNV
                     ANMDNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGG
                     A*"
     gene            complement(2397..3257)
                     /label="Ampicillin"
                     /gene="Ampicillin"
                     /translation="MEKKITGYTTVDISQWHRKEHFEAFQSVAQCTYNQTVQLDITAF
                     LKTVKKNKHKFYPAFIHILARLMNAHPEFRMAMKDGELVIWDSVHPCYTVFHEQTETF
                     SSLWSEYHDDFRQFLHIYSQDVACYGENLAYFPKGFIENMFFVSANPWVSFTSFDLNV
                     ANMDNFFAPVFTMGKYYTQGDKVLMPLAIQVHHAVCDGFHVGRMLNELQQYCDEWQGG
                     A*"
     CDS             complement(2397..3257)
                     /label="ORF frame 2"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
     promoter        complement(3299..3327)
                     /label="AmpR_promoter"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
                     IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
                     YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
                     DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
                     LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
                     EIGASLIKHW*"
ORIGIN
    1 CTCGAGAAAT CATAAAAAAT TTATTTGCTT TGTGAGCGGA TAACAATTAT AATAGATTCA
   61 ATTGTGAGCG GATAACAATT TCACACAGAA TTCATTAAAG AGGAGAAATT AACTATGAGA
  121 GGATCTCACC ATCACCATCA CCATGGGATC CGCATGCGAG CTCGGTACCC CGGGTCGACC
  181 TGCAGCCAAG CTTAATTAGC TGAGCTTGGA CTCCTGTTGA TAGATCCAGT AATGACCTCA
  241 GAACTCCATC TGGATTTGTT CAGAACGCTC GGTTGCCGCC GGGCGTTTTT TATTGGTGAG
  301 AATCCAAGCT AGCTTGGCGA GATTTTCAGG AGCTAAGGAA GCTAAAATGG AGAAAAAAAT
  361 CACTGGATAT ACCACCGTTG ATATATCCCA ATGGCATCGT AAAGAACATT TTGAGGCATT
  421 TCAGTCAGTT GCTCAATGTA CCTATAACCA GACCGTTCAG CTGGATATTA CGGCCTTTTT
  481 AAAGACCGTA AAGAAAAATA AGCACAAGTT TTATCCGGCC TTTATTCACA TTCTTGCCCG
  541 CCTGATGAAT GCTCATCCGG AATTTCGTAT GGCAATGAAA GACGGTGAGC TGGTGATATG
  601 GGATAGTGTT CACCCTTGTT ACACCGTTTT CCATGAGCAA ACTGAAACGT TTTCATCGCT
  661 CTGGAGTGAA TACCACGACG ATTTCCGGCA GTTTCTACAC ATATATTCGC AAGATGTGGC
  721 GTGTTACGGT GAAAACCTGG CCTATTTCCC TAAAGGGTTT ATTGAGAATA TGTTTTTCGT
  781 CTCAGCCAAT CCCTGGGTGA GTTTCACCAG TTTTGATTTA AACGTGGCCA ATATGGACAA
  841 CTTCTTCGCC CCCGTTTTCA CCATGGGCAA ATATTATACG CAAGGCGACA AGGTGCTGAT
  901 GCCGCTGGCG ATTCAGGTTC ATCATGCCGT TTGTGATGGC TTCCATGTCG GCAGAATGCT
  961 TAATGAATTA CAACAGTACT GCGATGAGTG GCAGGGCGGG GCGTAATTTT TTTAAGGCAG
 1021 TTATTGGTGC CCTTAAACGC CTGGGGTAAT GACTCTCTAG CTTGAGGCAT CAAATAAAAC
 1081 GAAAGGCTCA GTCGAAAGAC TGGGCCTTTC GTTTTATCTG TTGTTTGTCG GTGAACGCTC
 1141 TCCTGAGTAG GACAAATCCG CCCTCTAGAG CTGCCTCGCG CGTTTCGGTG ATGACGGTGA
 1201 AAACCTCTGA CACATGCAGC TCCCGGAGAC GGTCACAGCT TGTCTGTAAG CGGATGCCGG
 1261 GAGCAGACAA GCCCGTCAGG GCGCGTCAGC GGGTGTTGGC GGGTGTCGGG GCGCAGCCAT
 1321 GACCCAGTCA CGTAGCGATA GCGGAGTGTA TACTGGCTTA ACTATGCGGC ATCAGAGCAG
 1381 ATTGTACTGA GAGTGCACCA TATGCGGTGT GAAATACCGC ACAGATGCGT AAGGAGAAAA
 1441 TACCGCATCA GGCGCTCTTC CGCTTCCTCG CTCACTGACT CGCTGCGCTC GGTCGTTCGG
 1501 CTGCGGCGAG CGGTATCAGC TCACTCAAAG GCGGTAATAC GGTTATCCAC AGAATCAGGG
 1561 GATAACGCAG GAAAGAACAT GTGAGCAAAA GGCCAGCAAA AGGCCAGGAA CCGTAAAAAG
 1621 GCCGCGTTGC TGGCGTTTTT CCATAGGCTC CGCCCCCCTG ACGAGCATCA CAAAAATCGA
 1681 CGCTCAAGTC AGAGGTGGCG AAACCCGACA GGACTATAAA GATACCAGGC GTTTCCCCCT
 1741 GGAAGCTCCC TCGTGCGCTC TCCTGTTCCG ACCCTGCCGC TTACCGGATA CCTGTCCGCC
 1801 TTTCTCCCTT CGGGAAGCGT GGCGCTTTCT CATAGCTCAC GCTGTAGGTA TCTCAGTTCG
 1861 GTGTAGGTCG TTCGCTCCAA GCTGGGCTGT GTGCACGAAC CCCCCGTTCA GCCCGACCGC
 1921 TGCGCCTTAT CCGGTAACTA TCGTCTTGAG TCCAACCCGG TAAGACACGA CTTATCGCCA
 1981 CTGGCAGCAG CCACTGGTAA CAGGATTAGC AGAGCGAGGT ATGTAGGCGG TGCTACAGAG
 2041 TTCTTGAAGT GGTGGCCTAA CTACGGCTAC ACTAGAAGGA CAGTATTTGG TATCTGCGCT
 2101 CTGCTGAAGC CAGTTACCTT CGGAAAAAGA GTTGGTAGCT CTTGATCCGG CAAACAAACC
 2161 ACCGCTGGTA GCGGTGGTTT TTTTGTTTGC AAGCAGCAGA TTACGCGCAG AAAAAAAGGA
 2221 TCTCAAGAAG ATCCTTTGAT CTTTTCTACG GGGTCTGACG CTCAGTGGAA CGAAAACTCA
 2281 CGTTAAGGGA TTTTGGTCAT GAGATTATCA AAAAGGATCT TCACCTAGAT CCTTTTAAAT
 2341 TAAAAATGAA GTTTTAAATC AATCTAAAGT ATATATGAGT AAACTTGGTC TGACAGTTAC
 2401 CAATGCTTAA TCAGTGAGGC ACCTATCTCA GCGATCTGTC TATTTCGTTC ATCCATAGTT
 2461 GCCTGACTCC CCGTCGTGTA GATAACTACG ATACGGGAGG GCTTACCATC TGGCCCCAGT
 2521 GCTGCAATGA TACCGCGAGA CCCACGCTCA CCGGCTCCAG ATTTATCAGC AATAAACCAG
 2581 CCAGCCGGAA GGGCCGAGCG CAGAAGTGGT CCTGCAACTT TATCCGCCTC CATCCAGTCT
 2641 ATTAATTGTT GCCGGGAAGC TAGAGTAAGT AGTTCGCCAG TTAATAGTTT GCGCAACGTT
 2701 GTTGCCATTG CTACAGGCAT CGTGGTGTCA CGCTCGTCGT TTGGTATGGC TTCATTCAGC
 2761 TCCGGTTCCC AACGATCAAG GCGAGTTACA TGATCCCCCA TGTTGTGCAA AAAAGCGGTT
 2821 AGCTCCTTCG GTCCTCCGAT CGTTGTCAGA AGTAAGTTGG CCGCAGTGTT ATCACTCATG
 2881 GTTATGGCAG CACTGCATAA TTCTCTTACT GTCATGCCAT CCGTAAGATG CTTTTCTGTG
 2941 ACTGGTGAGT ACTCAACCAA GTCATTCTGA GAATAGTGTA TGCGGCGACC GAGTTGCTCT
 3001 TGCCCGGCGT CAATACGGGA TAATACCGCG CCACATAGCA GAACTTTAAA AGTGCTCATC
 3061 ATTGGAAAAC GTTCTTCGGG GCGAAAACTC TCAAGGATCT TACCGCTGTT GAGATCCAGT
 3121 TCGATGTAAC CCACTCGTGC ACCCAACTGA TCTTCAGCAT CTTTTACTTT CACCAGCGTT
 3181 TCTGGGTGAG CAAAAACAGG AAGGCAAAAT GCCGCAAAAA AGGGAATAAG GGCGACACGG
 3241 AAATGTTGAA TACTCATACT CTTCCTTTTT CAATATTATT GAAGCATTTA TCAGGGTTAT
 3301 TGTCTCATGA GCGGATACAT ATTTGAATGT ATTTAGAAAA ATAAACAAAT AGGGGTTCCG
 3361 CGCACATTTC CCCGAAAAGT GCCACCTGAC GTCTAAGAAA CCATTATTAT CATGACATTA
 3421 ACCTATAAAA ATAGGCGTAT CACGAGGCCC TTTCGTCTTC AC
