pGADT7产品信息

pGADT7产品信息

订购信息

货号	载体名称	出品公司	载体用途	价格	到货周期
HZ0483	pGADT7		酵母双杂交系统	1000	现货

载体描述

The pGADT7 vector expresses proteins fused to amino acids 768–881 of the GAL4 activation domain(AD). In yeast, fusion proteins are expressed at high levels from the constitutive ADH1 promoter(PADH1); transcription is terminated at the ADH1 transcription termination signal (TADH1). The fusion protein is targeted to the yeast nucleus by the SV40 nuclear localization sequences that have been added to the activation domain sequence. pGADT7 also contains the T7 promoter, an HA epitope tag, and a MCS. pGADT7 replicates autonomously in both E. coli and S. cerevisiae from the pUC and 2 u ori, respectively. The vector carries Ampr for selection in E. coli and the LEU2 nutritional marker for selection in yeast.

pGADT7 is the AD Vector included with MATCHMAKER Two-Hybrid System 3. The MCS of pGADT7 has unique restriction sites in frame with the 3'-end of the GAL4 AD for constructing a fusion protein with either a protein of interest or a fusion protein library. The bait protein is also expressed as a fusion to a hemagglutinin (HA) epitope tag. HA-tagged proteins can be identified with antibodies raised to this common epitope, eliminating the need to generate specific antibodies to new proteins. The T7 promoter is used for in vitro transcription and translation of the epitope tagged fusion protein and also provides a binding site for sequencing using the T7 Sequencing Primer. Note that the AD is not expressed during the in vitro transcription and translation reactions.

The Nco I and Pst I sites may be used to shuttle inserts from pGADT7 into pGBKT7, the MATCHMAKER Two-Hybrid System 3 DNA-BD Vector. The MCS in pGADT7 is compatible with those in pMyc-CMV and pHA-CMV, CLONTECH's epitope tagged mammalian expression vector set (#K6003-1). As a result, the target gene can be shuttled into these vectors in order to confirm protein interactions in vivo.

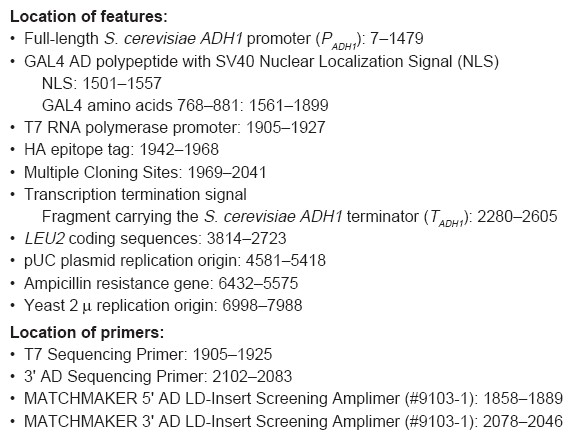

Location of features:

1. Full-length S. cerevisiae ADH1 promoter (PADH1): 7–1479
2. GAL4 AD polypeptide with SV40 Nuclear Localization Signal (NLS)

NLS: 1501–1557

GAL4 amino acids 768–881: 1561–1899

1. T7 RNA polymerase promoter: 1905–1927
2. HA epitope tag: 1942–1968
3. Multiple Cloning Sites: 1969–2041
4. Transcription termination signal

Fragment carrying the S. cerevisiae ADH1 terminator (TADH1): 2280–2605

1. LEU2 coding sequences: 3814–2723
2. pUC plasmid replication origin: 4581–5418
3. Ampicillin resistance gene: 6432–5575
4. Yeast 2 m replication origin: 6998–7988

Location of primers:

1. T7 Sequencing Primer: 1905–1925
2. 3' AD Sequencing Primer: 2102–2083
3. MATCHMAKER 5' AD LD-Insert Screening Amplimer (#9103-1): 1858–1889
4. MATCHMAKER 3' AD LD-Insert Screening Amplimer (#9103-1): 2078–2046

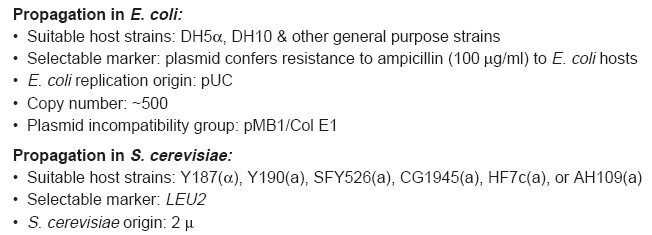

Propagation in E. coli:

1. Suitable host strains: DH5a, DH10 & other general purpose strains
2. Selectable marker: plasmid confers resistance to ampicillin (100 mg/ml) to E. coli hosts
3. E. coli replication origin: pUC
4. Copy number: ~500
5. Plasmid incompatibility group: pMB1/Col E1

Propagation in S. cerevisiae:

1. Suitable host strains: Y187(a), Y190(a), SFY526(a), CG1945(a), HF7c(a), or AH109(a)
2. Selectable marker: LEU2
3. S. cerevisiae origin: 2 u

载体序列

请联系沪震技术支持索取产品载体序列。

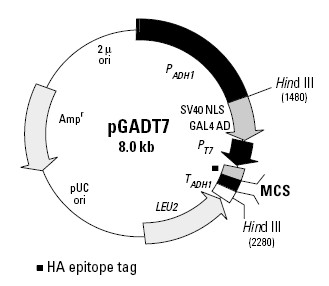

质粒图谱
