pDsRED-Express-N1产品信息
订购信息
| 货号 | 载体名称 | 出品公司 | 载体用途 | 价格 | 到货周期 |
| HZ0112 | pDsRED-Express-N1 | 荧光蛋白报告载体 | 1000 | 现货 |
产品参数
Promotor: CMV
Size: 4700
5' Sequencing 1 Primer: DsRed1-N
5' Sequencing 1 Primer Sequence: 5'd[GTACTGGAACTGGGGGGACAG]
Selectable Marker: Neomycin
Viral/Non-Viral: Nonviral
载体描述
pDsRed-Express-N1 is a mammalian expression vector that encodes DsRed-Express, a variant of Discosoma sp. red fluorescent protein (DsRed). DsRed-Express contains nine amino acid substitutions, which improve the solubility of the protein and reduce the time from
transfection to detection of red fluorescence. In addition, these substitutions reduce the level of residual green emission. When DsRed-Express is expressed in mammalian cell cultures, redemitting cells can be detected by either fluorescence microscopy or flow cytometry 8–12 hours after transfection(DsRed-Express excitation and emission maxima = 557 nm and 579 nm, respectively). Although DsRed-Express most likely forms the same tetrameric structure as wild-type DsRed, DsRed-Express displays a reduced tendency to aggregate. The DsRed-Express coding sequence is human codon-optimized for high expression in mammalian cells.
The multiple cloning site (MCS) in pDsRed-Express-N1 is positioned between the immediate early promoter of CMV (PCMV IE) and the DsRed-Express coding sequence. Genes cloned into the MCS are expressed as fusions to the N-terminus of DsRed-Express if they are in the same reading frame as DsRed-Express and there are no intervening stop codons. Sequences upstream of DsRed-Express have been converted to a Kozak consensus translation initiation site to increase translation efficiency in eukaryotic cells. SV40 polyadenylation signals downstream of the DsRed-Express gene direct proper processing of the 3' end of the DsRed-Express mRNA. The vector backbone contains an SV40 origin for replication in mammalian cells expressing the SV40 T antigen, a pUC origin of replication for propagation in E. coli, and an f1 origin for single-stranded DNA production. A neomycin-resistance cassette (Neor) allows stably transfected eukaryotic cells to be selected using G418. This cassette consists of the SV40 early promoter, the neomycin/kanamycin resistance gene of Tn5, and polyadenylation signals from the Herpes simplex virus thymidine kinase (HSV TK) gene. A bacterial promoter upstream of the cassette confers kanamycin resistance to E. coli.
载体序列
请联系沪震技术支持索取产品载体序列。

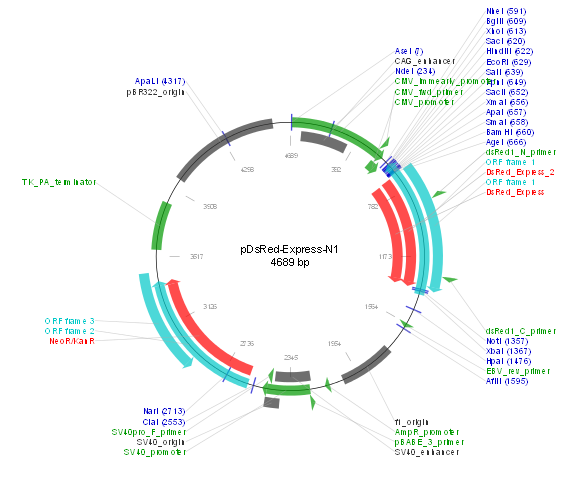

质粒图谱
风险提示：丁香通仅作为第三方平台，为商家信息发布提供平台空间。用户咨询产品时请注意保护个人信息及财产安全，合理判断，谨慎选购商品，商家和用户对交易行为负责。对于医疗器械类产品，请先查证核实企业经营资质和医疗器械产品注册证情况。
文献和实验M13F/T7 M13R pCR3.1 T7 BGH pCS2 SP6 T7 pDonar M13F M13R pDONR221 M13F M13R pDrive T7 SP6 pDRIveR(KAN+) T7 SP6 pDsRED1-C1 pDsRED-ex-C1-F pEGFP-N-3’(距离很近,一般不用) pDsRED2-C1(KAN+) pDsRED-ex-C1-F pEGFP-N-3’ pDSRED-N1(KAN+) pEGFP-N-5’ PDSRED-N-R
pCAGGS质粒载体图谱：http://www.dxy.cn/bbs/actions/archive/post/5142565_0.html pET-3c质粒载体图谱http://www.dxy.cn/bbs/actions/archive/post/1840731_0.html pGEX-4T3 载体图谱http://www.dxy.cn/bbs/actions/archive/post/2017715_0.html 各种真核载体图谱，包括绿色荧光蛋白表达载体 PEGFPN和pDsRed1-N1
pEGFP-N1质粒图谱及信息 多克隆位点区 Restriction Map and Multiple Cloning Site of pEGFP-N1. (Unique restriction sites are in color or bold.) The Not I site follows the EGFP stop codon. The Xba I site (*) is methylated in the DNA provided by CLONTECH
