pIRES2-DsRed2产品信息

pIRES2-DsRed2产品信息

订购信息

货号	载体名称	出品公司	载体用途	价格	到货周期
HZ0579	pIRES2-DsRed2		荧光蛋白报告载体	1000	现货

产品参数

测序引物：T7 Fwd
真核筛选标记：Neomycin

载体描述

pIRES2-DsRed2 contains the internal ribosome entry site (IRES) of the encephalomyocarditis virus (ECMV) between the MCS and the Discosoma sp. red fluorescent protein (DsRed2) coding region. This permits both the gene of interest (cloned into the MCS) and the DsRed2 gene to be translated from a single bicistronic mRNA. pIRES2-DsRed2 is designed for the efficient selection (by flow cytometry or other methods) of transiently transfected mammalian cells expressing DsRed2 and the protein of interest. Thisvector can express DsRed2 alone at lower signal intensity. The vector can also be used to obtain stably transfected cell lines by drug and clonal selection.
DsRed2 is a human codon-optimized (5) DsRed variant engineered for faster maturation and lower non-specific aggregation. The MCS in pIRES2-DsRed2 is located between the immediate arly promoter of cytomegalovirus (PCMV IE) and the IRES sequence. SV40 polyadenylation signals downstream of the DsRed2 gene direct proper processing of the 3' end of the bicistronic mRNA. The vector backbone also contains an SV40 origin for replication in mammalian cells expressing the SV40 T antigen. A neomycin-resistance cassette (Neor), consisting of the SV40 early promoter, the neomycin/kanamycin resistance gene of Tn5, and polyadenylation signals from the herpes simplex virus thymidine kinase (HSV TK) gene, allows stably transfected eukaryotic cells to be selected using G418. A bacterial promoter upstream of this cassette expresses kanamycin resistance in E. coli. The pIRES2-DsRed2 backbone also provides a pUC origin of replication for propagation in E. coli and an f1 origin for single-stranded DNA production.

载体序列

请联系沪震技术支持索取产品载体序列。

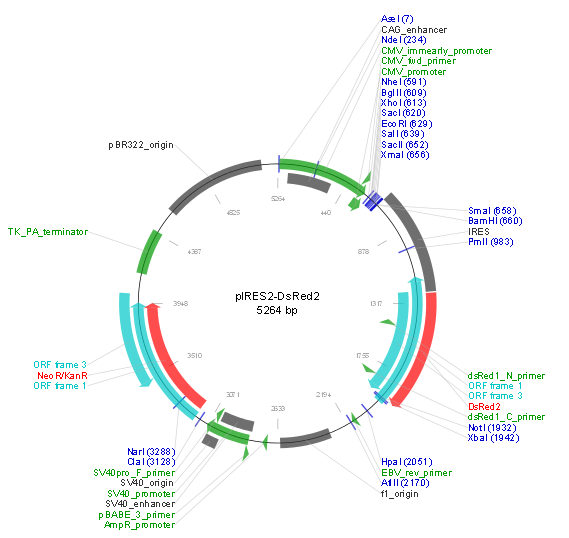

质粒图谱
