GATTA-荧光小球

GATTA-荧光小球 / 超高分辨率STED显微镜测试工具

SMALL, BRIGHT AND CUTTING-EDGE. EXPERIENCE THE HIGHEST BRIGHTNESS DENSITY IN THE WORLD.

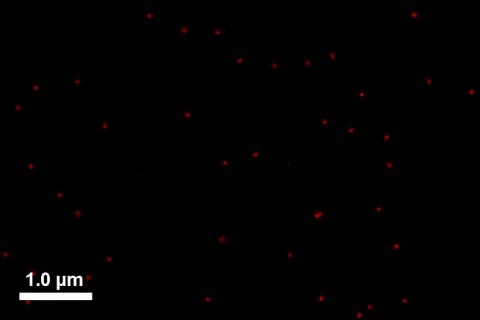

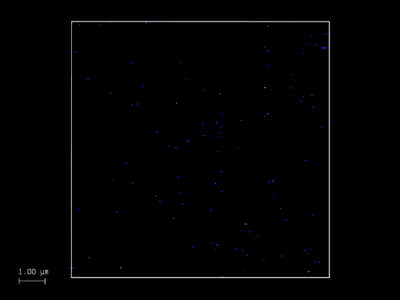

Fluorescent beads are important microscopy tools which can be used for calibration of microscopes, particle tracking or quantitative determination of point spread functions especially in STED microscopy. Particularly for the last point a small structure size keeping a high brightness is an immense advantage. Products from the GATTA-Bead series fulfill this requirement perfectly with a diameter of only 23nm. Additionally, they show a clearly improved homogeneity and flexibility compared to other beads. We offer GATTA-Beads in the colors red (ATTO 647N), orange (ATTO 594), green (ATTO 542) and blue (Oregon Green 488). Moreover, we offer alternative dyes which are indicated on the table below

应用范围:

• 系统设置校准
• 2D STED测量
• 3D STED PSF 反卷积
• 跟踪及漂移校准

优势:

• 大小: 直径 = 23 nm
• 亮度: 高亮，高密度

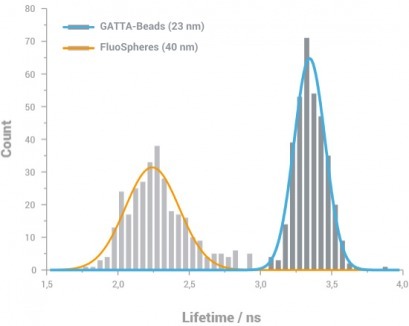

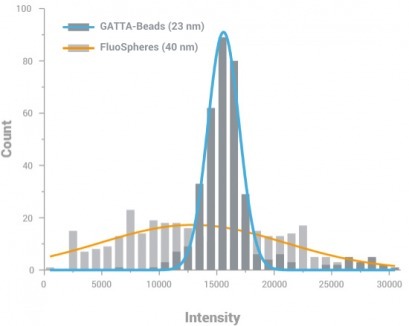

• 高度均一: 超级小的尺寸及强度分布
• 灵活性: 颜色修改或者增加化学成分

GATTA-荧光小球染料特性

	Bead R	Bead O	Bead G	Bead B
颜色	红色	桔色	绿色	蓝色
可用染料	ATTO647N	ATTO 594	ATTO 542	Oregon Green 488
可替代染料	Abberior STAR 635P	-	Cy3 or Alexa Fluor 555	Alexa Fluor 488 or ATTO 490LS
推荐激光源	630-650 nm	565-610 nm	515-540 nm	480-505 nm
尺寸	23 nm	23 nm	23 nm	23 nm
表面密度	≈ 1/µm²	≈ 1/µm²	≈ 1/µm²	≈ 1/µm²

FLUOROPHORE PROPERTIES荧光属性

荧光染料	颜色定义	激发光波长 / nm	发射光波长 / nm
ATTO 647N	R	647	664
Abberior Star 635P	R	635	651
ATTO 594	O	594	626
ATTO 542	G	542	562
Cy3	G	554	568
Alexa Fluor 555	G	555	580
Oregon Green 488	B	488	526
Alexa Fluor 488	B	488	525
ATTO 490LS	B	490	658
