可调节角度试管旋转混匀仪（无转盘）

Rotator, Adjustable rotor angle (without Disks) 可调节角度试管旋转混匀仪（无转盘）TMO-1500

技术参数

可调节混匀角度0度~90度
样品架旋转器，角度可调
转速: 0~50 rpm
连续转动或者时间设置180 min
工作温度范围：低于65度
转盘及转子不包含在内，有单独货号
4种不同转盘及3种转动架可选
转盘可用于250ml烧瓶
可选配件:
安装按钮用于连接1个或者2个转盘到主机上
货号# PO-4
尺寸: W220xD236xH246 mm
电源/功率: AC110V/220V/230V, 50/60Hz, 35W

型号	TMO-1500
旋转角度范围	0度到90度
速度范围	0~50 rpm
时间	99 hours 59 min
温度范围	低于65度
重量	8kg
尺寸(mm)	W502xD236xH246
功率	35W
电源	(AC100-240V)

可选转盘:

货号	描述
D50-8	Disk / 50ml conical tube-capacity: 8ea
D15-16	Disk / 15ml conical tube-capacity: 16ea
D1.5-32	Disk / 1.5ml centrifuge tube-capacity: 32ea
D1.5-60	Disk / 1.5ml centrifuge tube-capacity: 60ea
D250-4	Disk / 250ml Flask-capacity: 4ea

样品支架盘:

货号	描述

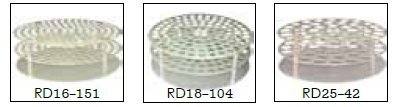

RD16-151	Roller Drum/Up to 15mm Diameter tube-capacity: 151ea
RD18-104	Roller Drum/Up to 17mm Diameter tube-capacity: 104ea
RD25-42	Roller Drum/Up to 24mm Diameter tube-capacity: 42ea

其它附件:

货号	描述
PO-4	Mount knobs for attaching one or 2 discs to the unit

样品旋转支架, 只用于TMO-1500:

货号	描述
12RT-4	80mm Diameter X200mm length bottle capacity:4ea

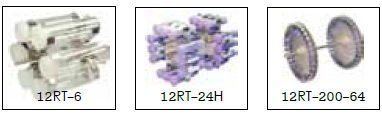

12RT-6	60mm Diameter X200mm length bottle capacity:6ea
12RT-10	40mm Diameter X200mm length bottle capacity:10ea
	40mm Diameter X120mm length bottle capacity:20ea
12RT-8V	50ml Conical tube-capacity: 8ea - vertical mount
12RT-16V	50ml Conical tube-capacity: 16ea - vertical mount
12RT-24H	50ml Conical tube-capacity: 24ea - horizontal mount
12RT-200-64	1.5ml Centrifuge tube-capacity : 64ea
12RT-200-96	1.5ml Centrifuge tube-capacity : 96ea
12RT-200-128	1.5ml Centrifuge tube-capacity : 128ea
12RT-300-120	1.5ml Centrifuge tube-capacity : 120ea
12RT-300-180	1.5ml Centrifuge tube-capacity : 180ea
12RT-300-240	1.5ml Centrifuge tube-capacity : 240ea
12RK-TMO	Rocking platform(W285xD195xH65, tilt angle:卤7掳)

可使用各种附件
● Variable speed and adjustable mixing angle, 0o to 90o
● Continuous or timed operation
● A wide choice of accessories to be used, including conical tubes, bottles
and 250ml flask
● Optional rocking platform for washing
● LED display for actual speed.
