Heating Mantles - Combo Mantles

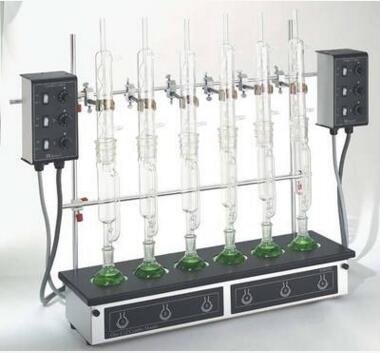

Glas-Col’s combination mantles have always been the mantles of choice for repetitive extracting, refluxing, and distilling procedures in labs of the food, textile fiber, water and waste-water, petroleum, and many other industries. Glas-Col’s latest version offers safety and convenience never before available in a multi-place heating mantle.

● Lower profile for space-saving convenience
● Revolutionary heating element container system makes replacing burned-out elements a simple task
● Element containers act as spill containment chambers to capture chemicals from spillage or boil-over
● Clear anodized aluminum cabinet with black PTFE resin coated top for chemical resistance
● Offered in two space-saving configurations; six-place for 100-300 ml flasks and three-place for 500-1,000 ml flasks
● Available in low-temperature ( 450°C RX version) and high-temperature (650°C RJ version) for greater versatility
● The ideal mantle for Kjeldahl, Soxhlet, and other extraction procedures

Each six-place Combo is furnished with six spring-type glassware clamps, and each three-place unit contains three. The clamps hold glassware from 1 5/8” - 2” in diameter.
The clamps attach to one of the horizontal support rods.
Two Series RL control choices are available:percentage timer or proportional voltage.
The percentage-timer version pulses full-line voltage to each heating position according to the dial setting. The proportional-voltage version supplies a constant, steady-state voltage to each position. The six-place controls are actually two units that can be mounted together or separately. The cordconnected controls allow placement at a convenient location for the operator.
Mantle specifications
Size: 29 1/4"w x 9 1/2"d x 5 1/4"h (6-place), 24"w x 11 1/4"d x 6 1/4"h (3-place)
Element size: 6 1/2"w x 6 1/2"d x 3 1/2"h(3-place), 4 1/4"w x 4 1/4"d x 2 9/16"h(6-place)Power control specifications
Size: 4 1/2"w x 8 1/4"h x 4 1/4"d (3-place unit); 9"w x 8 1/4"h x 4-1/4"d (6-place unit) Equipped with one quick-attach
open-face bracket for 1/2" diameter rod.
Six-place controls are equipped with two brackets.
Electrical: Three-place control has one 6 ft.
(1.8 m) multi-conductor interconnect cord to mantle and one 4 ft. (1.2 m) long, threewire power cord with grounding plug.
Six-place control has two interconnect cords and two power cords.
Finish: Black and silver.

100D RJ12512	Combo mantle for six 100/125ml flat bottom flasks, high temp. 140W, 120V Power control not included.
100D RJ12524	Combo mantle for six 100/125ml flat bottom flasks, high temp. 140W, 240V Power control not included.
100D RJ12712	Combo mantle for six 100/125ml round bottom flasks, high temp. 140W, 120V Power control not included.
100D RJ12724	Combo mantle for six 100/125ml round bottom flasks, high temp. 140W, 240V Power control not included.
100D RJ30012	Combo mantle for six 250/300ml flat bottom flasks, high temp. 210W, 120V Power control not included.
100D RJ30024	Combo mantle for six 250/300ml flat bottom flasks, high temp. 210W, 240V Power control not included.
100D RJ30412	Combo mantle for six 250/300ml round bottom flasks, high temp. 210W, 120V Power control not included.
100D RJ30424	Combo mantle for six 250/300ml round bottom flasks, high temp. 210W, 240V Power control not included.
100D RJ50012	Combo mantle for three 500ml flat bottom flasks, high temp. 300W, 120V Power control not included.
100D RJ50024	Combo mantle for three 500ml flat bottom flasks, high temp. 300W, 240V Power control not included.
100D RJ50212	Combo mantle for three 500ml round bottom flasks, high temp. 300W, 120V Power control not included.
100D RJ50224	Combo mantle for three 500ml round bottom flasks, high temp. 300W, 240V Power control not included.
100D RJ65012	Combo mantle for three 650ml round bottom flasks, high temp. 325W, 120V Power control not included.
100D RJ65024	Combo mantle for three 650ml round bottom flasks, high temp. 325W, 240V Power control not included.
100D RJ80012	Combo mantle for three 800ml round bottom flasks, high temp. 375W, 120V Power control not included.
100D RJ80024	Combo mantle for three 800ml round bottom flasks, high temp. 375W, 240V Power control not included.
100D RJ100024	Combo mantle for three 1000ml round bottom flasks, high temp. 450W, 240V Power control not included.
100D RJ12512E	Replacement element only for 100D RJ12512 Combo mantle, 140W, 120V
100D RJ12524E	Replacement element only for 100D RJ12524 Combo mantle, 140W, 240V
100D RJ12712E	Replacement element only for 100D RJ12712 Combo mantle, 140W, 120V
100D RJ12724E	Replacement element only for 100D RJ12724 Combo mantle, 140W, 240V
100D RJ30012E	Replacement element only for 100D RJ30012 Combo mantle, 210W, 120V
100D RJ30024E	Replacement element only for 100D RJ30024 Combo mantle, 210W, 240V
100D RJ30412E	Replacement element only for 100D RJ30412 Combo mantle, 210W, 120V
100D RJ30424E	Replacement element only for 100D RJ30424 Combo mantle, 210W, 240V
100D RJ50012E	Replacement element only for 100D RJ50012 Combo mantle, 300W, 120V
100D RJ50024E	Replacement element only for 100D RJ50024 Combo mantle, 300W, 240V
100D RJ50212E	Replacement element only for 100D RJ50212 Combo mantle, 300W, 120V
100D RJ50224E	Replacement element only for 100D RJ50224 Combo mantle, 300W, 240V
100D RJ65012E	Replacement element only for 100D RJ65012 Combo mantle, 325W, 120V
100D RJ65024E	Replacement element only for 100D RJ65024 Combo mantle, 325W, 240V
100D RJ80012E	Replacement element only for 100D RJ80012 Combo mantle, 375W, 120V
100D RJ80024E	Replacement element only for 100D RJ80024 Combo mantle, 375W, 240V
100D RJ100024E	Replacement element only for 100D RJ100024 Combo mantle, 450W, 240V
100D RX12512	Combo mantle for six 100/125ml flat bottom flasks, low temp. 85W, 120V Power control not included.
100D RX12524	Combo mantle for six 100/125ml flat bottom flasks, low temp. 85W, 240V Power control not included.
100D RX12712	Combo mantle for six 100/125ml round bottom flasks, low temp. 85W, 120V Power control not included.
100D RX12724	Combo mantle for six 100/125ml round bottom flasks, low temp. 85W, 240V Power control not included.
100D RX30012	Combo mantle for six 250/300ml flat bottom flasks, low temp. 125W, 120V Power control not included.
100D RX30024	Combo mantle for six 250/300ml flat bottom flasks, low temp. 125W, 240V Power control not included.
100D RX30412	Combo mantle for six 250/300ml round bottom flasks, low temp. 125W, 120V Power control not included.
100D RX30424	Combo mantle for six 250/300ml round bottom flasks, low temp. 125W, 240V Power control not included.
100D RX50012	Combo mantle for three 500ml flat bottom flasks, low temp. 180W, 120V Power control not included.
100D RX50024	Combo mantle for three 500ml flat bottom flasks, low temp. 180W, 240V Power control not included.
100D RX50212	Combo mantle for three 500ml round bottom flasks, low temp. 180W, 120V Power control not included.
100D RX50224	Combo mantle for three 500ml round bottom flasks, low temp. 180W, 240V Power control not included.
100D RX65012	Combo mantle for three 650ml round bottom flasks, low temp. 200W, 120V Power control not included.
100D RX65024	Combo mantle for three 650ml round bottom flasks, low temp. 200W, 240V Power control not included.
100D RX80012	Combo mantle for three 800ml round bottom flasks, low temp. 225W, 120V Power control not included.
100D RX80024	Combo mantle for three 800ml round bottom flasks, low temp. 225W, 240V Power control not included.
100D RX100012	Combo mantle for three 1000ml round bottom flasks, low temp. 290W, 120V Power control not included.
100D RX100024	Combo mantle for three 1000ml round bottom flasks, low temp. 290W, 240V Power control not included.
100D RX12512E	Replacement element only for 100D RX12512 Combo mantle, 85W, 120V
100D RX12524E	Replacement element only for 100D RX12524 Combo mantle, 85W, 240V
100D RX12712E	Replacement element only for 100D RX12712 Combo mantle, 85W, 120V
100D RX12724E	Replacement element only for 100D RX12724 Combo mantle, 85W, 240V
100D RX30012E	Replacement element only for 100D RX30012 Combo mantle, 125W 120V
100D RX30024E	Replacement element only for 100D RX30024 Combo mantle, 125W 240V
100D RX30412E	Replacement element only for 100D RX30412 Combo mantle, 125W 120V
100D RX30424E	Replacement element only for 100D RX30424 Combo mantle, 125W 240V
100D RX50012E	Replacement element only for 100D RX50012 Combo mantle, 180W 120V
100D RX50024E	Replacement element only for 100D RX50024 Combo mantle, 180W 240V
100D RX50212E	Replacement element only for 100D RX50212 Combo mantle, 180W 120V
100D RX50224E	Replacement element only for 100D RX50224 Combo mantle, 180W 240V
100D RX65012E	Replacement element only for 100D RX65012 Combo mantle, 200W 120V
100D RX65024E	Replacement element only for 100D RX65024 Combo mantle, 200W 240V
100D RX80012E	Replacement element only for 100D RX80012 Combo mantle, 225W 120V
100D RX80024E	Replacement element only for 100D RX80024 Combo mantle, 225W 240V
100D RX100012E	Replacement element only for 100D RX100012 Combo mantle, 290W 120V
100D RX100024E	Replacement element only for 100D RX100024 Combo mantle, 290W 240V
