pG/EX-KG大肠表达质粒

基本信息
名称：pG/EX-KG大肠表达质粒
别称: pGEXKG

启动子:	Tac
复制子:	pBR322
质粒分类:	大肠杆菌载体；PGEX系列表达质粒
质粒大小:	5005bp
质粒标签:	N-GST, N-thrombin
原核抗性:	Amp
克隆菌株:	DH5a
培养条件:	37度
表达宿主:	大肠杆菌
培养条件:	37℃，有氧，LB
诱导方式:	IPTG或乳糖及其类似物
5'测序引物:	pGEX5: GGGCTGGCAAGCCACGTTTGGTG
3'测序引物:	pGEX3: CCGGGAGCTGCATGTGTCAGAGG
备注:	可用GST亲和柱纯化重组蛋白

质粒属性

载体宿主：	大肠杆菌
载体用途：	蛋白表达
基因种属：	空载体
基因类型：	ORF
原核抗性：	Amp
真核抗性：
荧光蛋白：

质粒简介
 pGEX-KG载体大小为5005bp，能够在Amp的平板上生长；含有GST标签，能够用GST亲和柱纯化重组蛋白

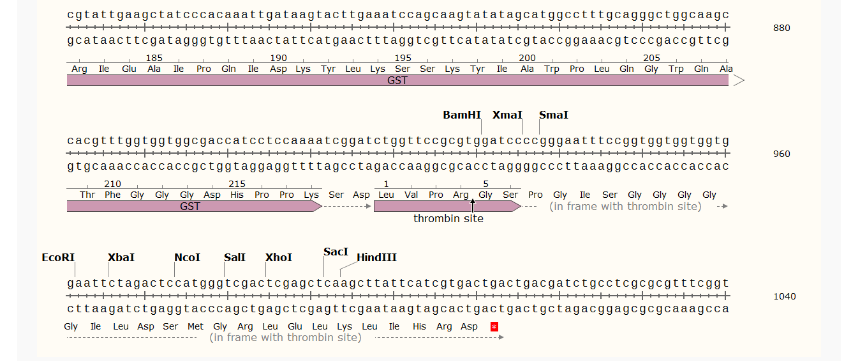

质粒图谱


质粒序列
LOCUS       Exported File           5005 bp ds-DNA    circular SYN 29-1-2015
DEFINITION  .
ACCESSION   .
VERSION     .
KEYWORDS    pGEX-KG
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 5005)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported 2015-1-29 from MLCC
            http://www.miaolingbio.com
FEATURES             Location/Qualifiers
     source          1..5005
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     misc_feature    183..211
                     /note="tac promoter"
                     /note="strong E. coli promoter; hybrid between the trp and
                     lac?UV5 promoters"
     protein_bind    219..235
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="lac operator"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     CDS             258..911
                     /codon_start=1
                     /gene="
                     "
                     /product="glutathione S-transferase from Schistosoma
                     japonicum"
                     /note="GST"
                     /translation="MSPILGYWKIKGLVQPTRLLLEYLEEKYEEHLYERDEGDKWRNKK
                     FELGLEFPNLPYYIDGDVKLTQSMAIIRYIADKHNMLGGCPKERAEISMLEGAVLDIRY
                     GVSRIAYSKDFETLKVDFLSKLPEMLKMFEDRLCHKTYLNGDHVTHPDFMLYDALDVVL
                     YMDPMCLDAFPKLVCFKKRIEAIPQIDKYLKSSKYIAWPLQGWQATFGGGDHPPK"
     CDS             918..935
                     /codon_start=1
                     /product="thrombin recognition and cleavage site"
                     /note="thrombin site"
                     /translation="LVPRGS"
     promoter        1308..1412
                     /gene="bla"
                     /note="AmpR promoter"
     CDS             1413..2273
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /note="AmpR"
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPAAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     rep_origin      2444..3032
                     /direction=RIGHT
                     /note="ori"
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     promoter        3276..3353
                     /gene="lacI (mutant)"
                     /note="lacIq promoter"
                     /note="In the lacIq allele, a single base change in the
                     promoter boosts expression of the lacI gene about 10-fold."
     CDS             3354..4436
                     /codon_start=1
                     /gene="lacI"
                     /product="lac repressor"
                     /note="lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
                     /translation="MKPVTLYDVAEYAGVSYQTVSRVVNQASHVSAKTREKVEAAMAEL
                     NYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKSRADQLGASVVVSMVERSGV
                     EACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNVPALFLDVSDQTPINSIIFSH
                     EDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGWHKYLTRNQIQPIAEREGDWSA
                     MSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITESGLRVGADISVVGYDDTEDSSC
                     YIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQLLPVSLVKRKTTLAPNTQTASPR
                     ALADSLMQLARQVSRLESGQ"
     protein_bind    4449..4470
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding site"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     promoter        4485..4515
                     /note="lac promoter"
                     /note="promoter for the E. coli lac operon"
     protein_bind    4523..4539
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="lac operator"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     primer_bind     4547..4563
                     /note="M13 rev"
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(4579..4595)
                     /note="M13 fwd"
                     /note="common sequencing primer, one of multiple similar
                     variants"
ORIGIN
        1 acgttatcga ctgcacggtg caccaatgct tctggcgtca ggcagccatc ggaagctgtg
       61 gtatggctgt gcaggtcgta aatcactgca taattcgtgt cgctcaaggc gcactcccgt
      121 tctggataat gttttttgcg ccgacatcat aacggttctg gcaaatattc tgaaatgagc
      181 tgttgacaat taatcatcgg ctcgtataat gtgtggaatt gtgagcggat aacaatttca
      241 cacaggaaac agtattcatg tcccctatac taggttattg gaaaattaag ggccttgtgc
      301 aacccactcg acttcttttg gaatatcttg aagaaaaata tgaagagcat ttgtatgagc
      361 gcgatgaagg tgataaatgg cgaaacaaaa agtttgaatt gggtttggag tttcccaatc
      421 ttccttatta tattgatggt gatgttaaat taacacagtc tatggccatc atacgttata
      481 tagctgacaa gcacaacatg ttgggtggtt gtccaaaaga gcgtgcagag atttcaatgc
      541 ttgaaggagc ggttttggat attagatacg gtgtttcgag aattgcatat agtaaagact
      601 ttgaaactct caaagttgat tttcttagca agctacctga aatgctgaaa atgttcgaag
      661 atcgtttatg tcataaaaca tatttaaatg gtgatcatgt aacccatcct gacttcatgt
      721 tgtatgacgc tcttgatgtt gttttataca tggacccaat gtgcctggat gcgttcccaa
      781 aattagtttg ttttaaaaaa cgtattgaag ctatcccaca aattgataag tacttgaaat
      841 ccagcaagta tatagcatgg cctttgcagg gctggcaagc cacgtttggt ggtggcgacc
      901 atcctccaaa atcggatctg gttccgcgtg gatccccggg aatttccggt ggtggtggtg
      961 gaattctaga ctccatgggt cgactcgagc tcaagcttat tcatcgtgac tgactgacga
     1021 tctgcctcgc gcgtttcggt gatgacggtg aaaacctctg acacatgcag ctcccggaga
     1081 cggtcacagc ttgtctgtaa gcggatgccg ggagcagaca agcccgtcag ggcgcgtcag
     1141 cgggtgttgg cgggtgtcgg ggcgcagcca tgacccagtc acgtagcgat agcggagtgt
     1201 ataattcttg aagacgaaag ggcctcgtga tacgcctatt tttataggtt aatgtcatga
     1261 taataatggt ttcttagacg tcaggtggca cttttcgggg aaatgtgcgc ggaaccccta
     1321 tttgtttatt tttctaaata cattcaaata tgtatccgct catgagacaa taaccctgat
     1381 aaatgcttca ataatattga aaaaggaaga gtatgagtat tcaacatttc cgtgtcgccc
     1441 ttattccctt ttttgcggca ttttgccttc ctgtttttgc tcacccagaa acgctggtga
     1501 aagtaaaaga tgctgaagat cagttgggtg cacgagtggg ttacatcgaa ctggatctca
     1561 acagcggtaa gatccttgag agttttcgcc ccgaagaacg ttttccaatg atgagcactt
     1621 ttaaagttct gctatgtggc gcggtattat cccgtgttga cgccgggcaa gagcaactcg
     1681 gtcgccgcat acactattct cagaatgact tggttgagta ctcaccagtc acagaaaagc
     1741 atcttacgga tggcatgaca gtaagagaat tatgcagtgc tgccataacc atgagtgata
     1801 acactgcggc caacttactt ctgacaacga tcggaggacc gaaggagcta accgcttttt
     1861 tgcacaacat gggggatcat gtaactcgcc ttgatcgttg ggaaccggag ctgaatgaag
     1921 ccataccaaa cgacgagcgt gacaccacga tgcctgcagc aatggcaaca acgttgcgca
     1981 aactattaac tggcgaacta cttactctag cttcccggca acaattaata gactggatgg
     2041 aggcggataa agttgcagga ccacttctgc gctcggccct tccggctggc tggtttattg
     2101 ctgataaatc tggagccggt gagcgtgggt ctcgcggtat cattgcagca ctggggccag
     2161 atggtaagcc ctcccgtatc gtagttatct acacgacggg gagtcaggca actatggatg
     2221 aacgaaatag acagatcgct gagataggtg cctcactgat taagcattgg taactgtcag
     2281 accaagttta ctcatatata ctttagattg atttaaaact tcatttttaa tttaaaagga
     2341 tctaggtgaa gatccttttt gataatctca tgaccaaaat cccttaacgt gagttttcgt
     2401 tccactgagc gtcagacccc gtagaaaaga tcaaaggatc ttcttgagat cctttttttc
     2461 tgcgcgtaat ctgctgcttg caaacaaaaa aaccaccgct accagcggtg gtttgtttgc
     2521 cggatcaaga gctaccaact ctttttccga aggtaactgg cttcagcaga gcgcagatac
     2581 caaatactgt ccttctagtg tagccgtagt taggccacca cttcaagaac tctgtagcac
     2641 cgcctacata cctcgctctg ctaatcctgt taccagtggc tgctgccagt ggcgataagt
     2701 cgtgtcttac cgggttggac tcaagacgat agttaccgga taaggcgcag cggtcgggct
     2761 gaacgggggg ttcgtgcaca cagcccagct tggagcgaac gacctacacc gaactgagat
     2821 acctacagcg tgagctatga gaaagcgcca cgcttcccga agggagaaag gcggacaggt
     2881 atccggtaag cggcagggtc ggaacaggag agcgcacgag ggagcttcca gggggaaacg
     2941 cctggtatct ttatagtcct gtcgggtttc gccacctctg acttgagcgt cgatttttgt
     3001 gatgctcgtc aggggggcgg agcctatgga aaaacgccag caacgcggcc tttttacggt
     3061 tcctggcctt ttgctggcct tttgctcaca tgttctttcc tgcgttatcc cctgattctg
     3121 tggataaccg tattaccgcc tttgagtgag ctgataccgc tcgccgcagc cgaacgaccg
     3181 agcgcagcga gtcagtgagc gaggaagcgg aagagcgcct gatgcggtat tttctcctta
     3241 cgcatctgtg cggtatttca caccgcataa attccgacac catcgaatgg tgcaaaacct
     3301 ttcgcggtat ggcatgatag cgcccggaag agagtcaatt cagggtggtg aatgtgaaac
     3361 cagtaacgtt atacgatgtc gcagagtatg ccggtgtctc ttatcagacc gtttcccgcg
     3421 tggtgaacca ggccagccac gtttctgcga aaacgcggga aaaagtggaa gcggcgatgg
     3481 cggagctgaa ttacattccc aaccgcgtgg cacaacaact ggcgggcaaa cagtcgttgc
     3541 tgattggcgt tgccacctcc agtctggccc tgcacgcgcc gtcgcaaatt gtcgcggcga
     3601 ttaaatctcg cgccgatcaa ctgggtgcca gcgtggtggt gtcgatggta gaacgaagcg
     3661 gcgtcgaagc ctgtaaagcg gcggtgcaca atcttctcgc gcaacgcgtc agtgggctga
     3721 tcattaacta tccgctggat gaccaggatg ccattgctgt ggaagctgcc tgcactaatg
     3781 ttccggcgtt atttcttgat gtctctgacc agacacccat caacagtatt attttctccc
     3841 atgaagacgg tacgcgactg ggcgtggagc atctggtcgc attgggtcac cagcaaatcg
     3901 cgctgttagc gggcccatta agttctgtct cggcgcgtct gcgtctggct ggctggcata
     3961 aatatctcac tcgcaatcaa attcagccga tagcggaacg ggaaggcgac tggagtgcca
     4021 tgtccggttt tcaacaaacc atgcaaatgc tgaatgaggg catcgttccc actgcgatgc
     4081 tggttgccaa cgatcagatg gcgctgggcg caatgcgcgc cattaccgag tccgggctgc
     4141 gcgttggtgc ggatatctcg gtagtgggat acgacgatac cgaagacagc tcatgttata
     4201 tcccgccgtt aaccaccatc aaacaggatt ttcgcctgct ggggcaaacc agcgtggacc
     4261 gcttgctgca actctctcag ggccaggcgg tgaagggcaa tcagctgttg cccgtctcac
     4321 tggtgaaaag aaaaaccacc ctggcgccca atacgcaaac cgcctctccc cgcgcgttgg
     4381 ccgattcatt aatgcagctg gcacgacagg tttcccgact ggaaagcggg cagtgagcgc
     4441 aacgcaatta atgtgagtta gctcactcat taggcacccc aggctttaca ctttatgctt
     4501 ccggctcgta tgttgtgtgg aattgtgagc ggataacaat ttcacacagg aaacagctat
     4561 gaccatgatt acggattcac tggccgtcgt tttacaacgt cgtgactggg aaaaccctgg
     4621 cgttacccaa cttaatcgcc ttgcagcaca tccccctttc gccagctggc gtaatagcga
     4681 agaggcccgc accgatcgcc cttcccaaca gttgcgcagc ctgaatggcg aatggcgctt
     4741 tgcctggttt ccggcaccag aagcggtgcc ggaaagctgg ctggagtgcg atcttcctga
     4801 ggccgatact gtcgtcgtcc cctcaaactg gcagatgcac ggttacgatg cgcccatcta
     4861 caccaacgta acctatccca ttacggtcaa tccgccgttt gttcccacgg agaatccgac
     4921 gggttgttac tcgctcacat ttaatgttga tgaaagctgg ctacaggaag gccagacgcg
     4981 aattattttt gatggcgttg gaatt
//

质粒菌株产品操作说明书
一、扩增流程
         收到产品后，请先根据产品管壁标签来判断产品形式，并在扩增前准确查找该质粒菌株的抗性、感受态和培养温度。
         1、质粒干粉（常温运输，存于-20度，90天保质期，请务必转化挑单克隆培养，不要直接使用和测序）
              ①收到质粒干粉后请先5000rpm离心1min，再加入20μl ddH2O去离子水溶解质粒；
              ②取1支100μl 感受态于冰上解冻10min，加入2μl质粒，再冰浴30min后，42℃热激60s，不要搅动，再冰浴2min；（从第二步开始均要在超净工作台中无菌操作）
              ③加入900μl无抗的LB液体培养基，180rpm震荡37℃培养45min；
              ④6000rpm离心5min，仅留100μl上清液重悬细菌沉淀，并涂布至目标质粒抗性的LB平板上；（可使用本平台的平板涂布专用玻璃珠进行涂布，可以比传统涂布方法获得更多转化子）
              ⑤将平板正向培养1h，再倒置37℃培养14h。如果要求是30度则培养20h；
（菌落过多则将质粒稀释后再转化。没有菌落则加入10μl质粒转化。另不要直接转表达感受态，要先转克隆感受态，重提质粒后再导入表达感受态）
              ⑥挑取单菌落至LB液体培养基中，加入对应抗生素，220rpm震荡培养14h，根据实验需要和质粒提取试剂盒说明书提取质粒。
        2、甘油菌种（冰袋运输，存于-80℃，保质期90天，请务必划线挑单克隆培养）
              四区划线后挑单菌落培养，酵母菌需要先液体复苏再四区划线，再挑单菌落液体培养。
        3、穿刺菌种（冰袋运输，存于4℃，保质期7天）
              穿刺接种，液体培养后四区划线，再挑单菌落液体培养。
        4、菌落平板（冰袋运输，存于4℃，保质期7天）
              直接挑取单菌落至液体培养基中。
        5、液体质粒（冰袋运输，存于-20℃，保质期90天）
              单独提取的液体质粒收到后可直接使用。
        6、滤纸质粒（常温运输，存于-20度，90天保质期，请务必转化挑单克隆培养，不要直接使用和测序）
              收到货后将滤纸画圈部分剪下放入EP管中，加100ul无菌水将滤纸浸湿并浸泡5min，吸取5ul质粒转化，离心全涂。

二、转化图片

P2372/pENTR223-RPLP0人源基因质粒

P2373/pENTR223-RALYL人源基因质粒

P2374/pENTR223-GPM6A人源基因质粒

P2375/pENTR223-BLVRA人源基因质粒

P2293/pENTR223-CDCA8人源基因质粒

P2294/pENTR223-KLF6人源基因质粒

P2328/pENTR223-RSU1人源基因质粒

P2387/pENTR223-CCDC82-C445G人源基因质粒

P2388/pENTR223-CDCP1人源基因质粒

P2389/pENTR223-BTN2A2人源基因质粒

P2390/pENTR223-MAX人源基因质粒
