    产品简介

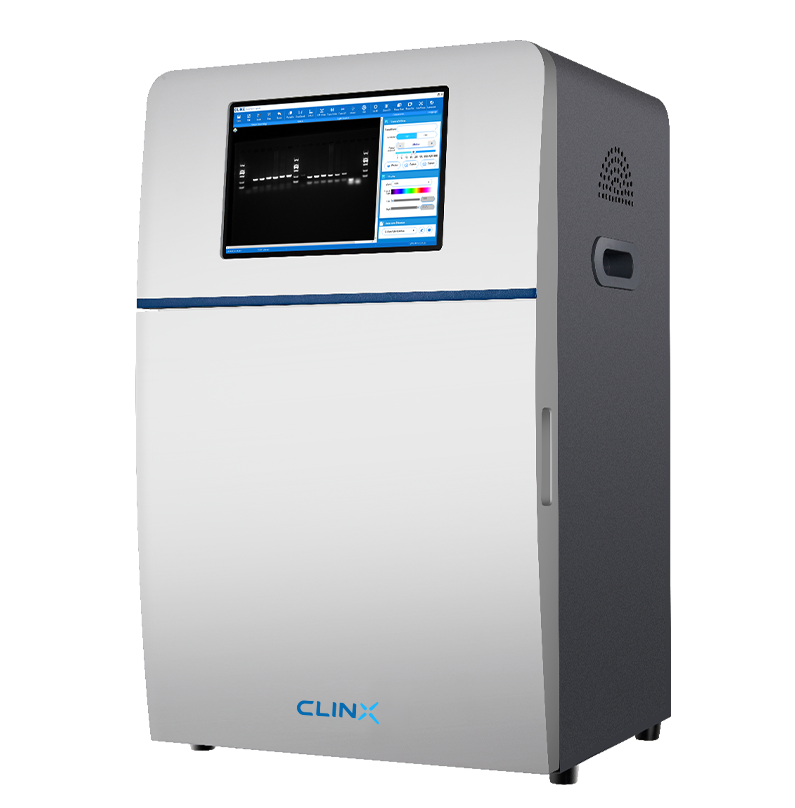

    GenoSens系列凝胶成像采集分析系统主要用于对核酸和蛋白质凝胶电泳图像等的分析研究。高分辨率和高灵敏度的相机可以保证在低照度下不丢失条带;全自动电脑控制,高程序化,做到操作简单、方便实用;功能齐全的凝胶图像分析软件有助于研究人员准确、迅速得到电泳照片和分析结果,帮助广大从事分子生物学的研究人员摆脱繁琐操作过程,提高工作效率。

    产品细节图片1

    产品特点

    • 相机:采用高灵敏度和高分辨率的数字相机,成像细致清晰、背景噪声低、 动态范围高,可检测低浓度的DNA/RNA和识别区分出非常接近的条带
    • 镜头:具有快速自动聚焦功能的高解像力变焦镜头,提供清晰的图像细节,具有镜头数字量化功能、放缩倍数、光圈大小数字化,提高操作体验并且避免人为操作误差
    • 紫外透照台:高品质LED光源,均匀性更高,光源寿命>3万小时。紫外透射面积: 21cm * 26cm
    • 蓝光样品盘:470nm LED光源,用于DNA/RNA凝胶蓝光下检测。 蓝光透射面积:21cm*26cm
    • 白光样品盘: LED光源,用于考染和银染的蛋白胶。白光透照面积:21cm*26cm
    • 荧光模块:搭载8位电动滤镜轮,可配置多种波长滤光片,实现多色荧光成像
    • 模块化设计:具有多种配置和模块可供选择,满足多应用需求, 并支持后期升级
    • 操控方式:触摸屏/外接电脑一键切换方案,满足不同使用人员操作习惯

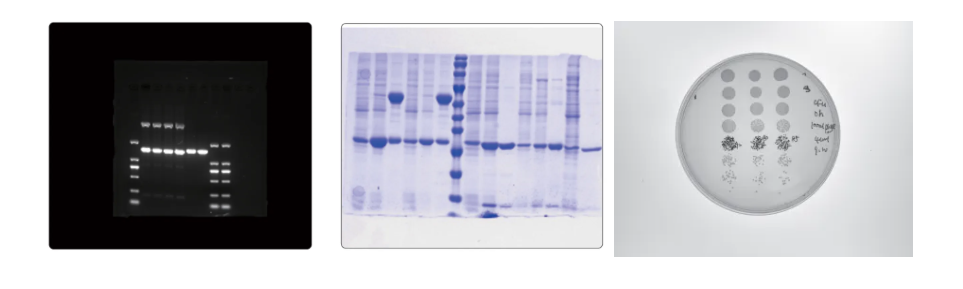

    应用范围

    • 核酸检测:各种核酸染料,如Ethiduim Bromide, Gel Signal Red,Gel Signal Green,SYBR Gold,SYBR Green,SYBR Safe,Gel Star等标记的DNA/RNA检测。
    • 蛋白检测:(可选)考马斯亮蓝胶,银染胶等。
    • 其他应用:平板菌落成像(可选)

      产品细节图片2



      配置与型号

      GenoSens 2250Touch

    • 操控:内置10.1英寸工业计算机,多点触控
    • 相机:630万像素,高灵敏度数字相机
    • 镜头:高解像力变焦镜头
    • 透射光源:标配302nm紫外透射;可选254/365nm紫外,470nm蓝光,白光透射
    • 反射光源:标配白光反射
    • 滤光片:标配590nm多层镀膜滤光片



    GenoSens图像采集分析软件

    GenoSens图像采集分析软件,主要包含图像采集、图像分析、账户管理三大功能,提供多级账户管理系统,便于仪器的使用管理。软件操作简便快捷,集相机自动控制、图像采集、光源控制、镜头调整多功能于一体,适于核酸和蛋白质凝胶图像的采集与分析。GenoSen图像采集分析软件系我公司自主设计开发,并取得软件相关知识产权。

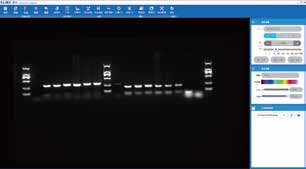

    图像采集

    • 凝胶图像实时预览,自动聚焦
    • 具有自动拍摄和手动拍摄功能
    • 拍摄完成,自动保存原始图像
    • 具有高分辨率和高灵敏度等曝光模式可选;
    • 具有图像的旋转,裁切,反色,添加伪彩等图像优化处理功能

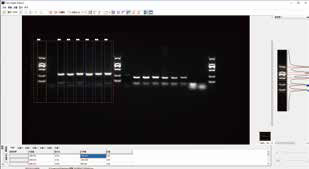

    图像分析

    • 自动识别泳道条带,并且可以根据需要添加、删除、调整泳道,实现泳道的精确分离;
    • 自动计算泳道中各条带的光密度积分值和自动显示峰形图,方便计算各条带分子量、等电点和浓度,对指定区域进行光密度计算,适用于DNA及蛋白定量分析;
    • 具有文档打印功能,可将分析结果导出为Excel表格。

    产品细节图片3  产品细节图片4

    账户管理

    软件可提供分级账户管理及图像信息追踪系统。根据不同角色的使用者,设置不同权限的账户,通过账号密码方可登录,方便仪器的使用管理。软件满足对图像采集及分析操作过程中的图像操作记录追踪功能,可输出包含账户信息和图像原始信息的PDF报告。产品细节图片5
