pFastBacHTB昆虫胞内质粒

基本信息

启动子:	PC,polyhedrin
复制子:	pUC ori，F1 ori
终止子:	SV40 poly(A) signal
质粒分类:	广宿主系列，昆虫细胞载体
质粒大小:	4857bp
质粒标签:	N-His；N-TEV
原核抗性:	Amp
筛选标记:	Gen
克隆菌株:	DH5α
培养条件:	37℃，有氧 LB
表达宿主:	昆虫细胞
诱导方式:	无须诱导，瞬时表达
5'测序引物:	pFastbac-F: TATTCCGGATTATTCATACC
3'测序引物:	pFastBac-R: ACAAATGTGGTATGGCTGA

质粒简介

  The pFastBac HT vector is supplied with the multiple cloning site in three reading frames (A, B, and C) to facilitate cloning your gene of interest in frame with the N-terminal 6xHis tag

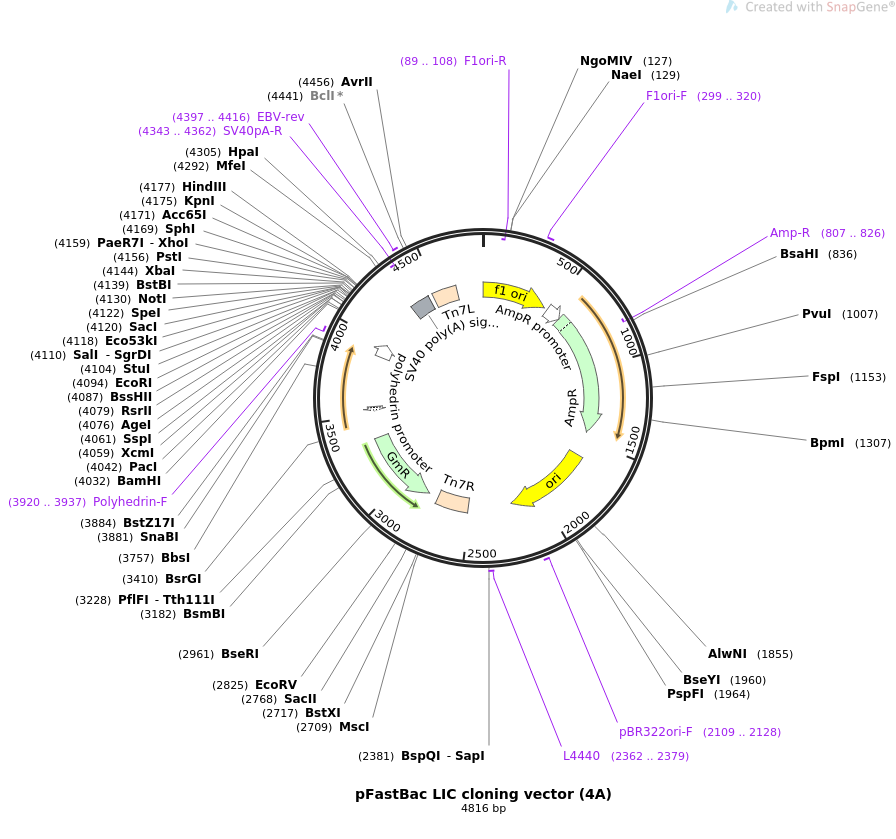

质粒图谱

质粒序列

LOCUS       Exported                4857 bp ds-DNA     circular SYN 09-SEP-2016
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    Untitled
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 4857)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Friday, September 9, 2016 from SnapGene Viewer 3.1.4
FEATURES             Location/Qualifiers
     source          1..4857
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     rep_origin      2..457
                     /direction=RIGHT
                     /note="f1 ori"
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     promoter        484..588
                     /gene="bla"
                     /note="AmpR promoter"
     CDS             589..1449
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /note="AmpR"
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     rep_origin      1620..2208
                     /direction=RIGHT
                     /note="ori"
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     mobile_element  2511..2735
                     /mobile_element_type="transposon:Tn7"
                     /note="Tn7R"
                     /note="mini-Tn7 element (right end of the Tn7 transposon)"
     CDS             complement(2802..3335)
                     /codon_start=1
                     /gene="aacC1"
                     /product="gentamycin acetyltransferase"
                     /note="GmR"
                     /note="confers resistance to gentamycin"
                     /translation="MLRSSNDVTQQGSRPKTKLGGSSMGIIRTCRLGPDQVKSMRAALD
                     LFGREFGDVATYSQHQPDSDYLGNLLRSKTFIALAAFDQEAVVGALAAYVLPRFEQPRS
                     EIYIYDLAVSGEHRRQGIATALINLLKHEANALGAYVIYVQADYGDDPAVALYTKLGIR
                     EEVMHFDIDPSTAT"
     promoter        complement(3524..3552)
                     /gene="intI1 (promoter lies within the coding sequence)"
                     /note="Pc promoter"
                     /note="class 1 integron promoter"
     promoter        3904..3995
                     /gene="polh from Autographa californica"
                     /note="polyhedrin promoter"
                     /note="promoter for the baculovirus polyhedrin gene"
     CDS             4062..4079
                     /codon_start=1
                     /product="6xHis affinity tag"
                     /note="6xHis"
                     /translation="HHHHHH"
     CDS             4101..4121
                     /codon_start=1
                     /product="tobacco etch virus (TEV) protease recognition and
                     cleavage site"
                     /note="TEV site"
                     /translation="ENLYFQG"
     polyA_signal    4347..4481
                     /note="SV40 poly(A) signal"
                     /note="SV40 polyadenylation signal"
     mobile_element  4510..4675
                     /mobile_element_type="transposon:Tn7"
                     /note="Tn7L"
                     /note="mini-Tn7 element (left end of the Tn7 transposon)"
ORIGIN
        1 gacgcgccct gtagcggcgc attaagcgcg gcgggtgtgg tggttacgcg cagcgtgacc
       61 gctacacttg ccagcgccct agcgcccgct cctttcgctt tcttcccttc ctttctcgcc
      121 acgttcgccg gctttccccg tcaagctcta aatcgggggc tccctttagg gttccgattt
      181 agtgctttac ggcacctcga ccccaaaaaa cttgattagg gtgatggttc acgtagtggg
      241 ccatcgccct gatagacggt ttttcgccct ttgacgttgg agtccacgtt ctttaatagt
      301 ggactcttgt tccaaactgg aacaacactc aaccctatct cggtctattc ttttgattta
      361 taagggattt tgccgatttc ggcctattgg ttaaaaaatg agctgattta acaaaaattt
      421 aacgcgaatt ttaacaaaat attaacgttt acaatttcag gtggcacttt tcggggaaat
      481 gtgcgcggaa cccctatttg tttatttttc taaatacatt caaatatgta tccgctcatg
      541 agacaataac cctgataaat gcttcaataa tattgaaaaa ggaagagtat gagtattcaa
      601 catttccgtg tcgcccttat tccctttttt gcggcatttt gccttcctgt ttttgctcac
      661 ccagaaacgc tggtgaaagt aaaagatgct gaagatcagt tgggtgcacg agtgggttac
      721 atcgaactgg atctcaacag cggtaagatc cttgagagtt ttcgccccga agaacgtttt
      781 ccaatgatga gcacttttaa agttctgcta tgtggcgcgg tattatcccg tattgacgcc
      841 gggcaagagc aactcggtcg ccgcatacac tattctcaga atgacttggt tgagtactca
      901 ccagtcacag aaaagcatct tacggatggc atgacagtaa gagaattatg cagtgctgcc
      961 ataaccatga gtgataacac tgcggccaac ttacttctga caacgatcgg aggaccgaag
     1021 gagctaaccg cttttttgca caacatgggg gatcatgtaa ctcgccttga tcgttgggaa
     1081 ccggagctga atgaagccat accaaacgac gagcgtgaca ccacgatgcc tgtagcaatg
     1141 gcaacaacgt tgcgcaaact attaactggc gaactactta ctctagcttc ccggcaacaa
     1201 ttaatagact ggatggaggc ggataaagtt gcaggaccac ttctgcgctc ggcccttccg
     1261 gctggctggt ttattgctga taaatctgga gccggtgagc gtgggtctcg cggtatcatt
     1321 gcagcactgg ggccagatgg taagccctcc cgtatcgtag ttatctacac gacggggagt
     1381 caggcaacta tggatgaacg aaatagacag atcgctgaga taggtgcctc actgattaag
     1441 cattggtaac tgtcagacca agtttactca tatatacttt agattgattt aaaacttcat
     1501 ttttaattta aaaggatcta ggtgaagatc ctttttgata atctcatgac caaaatccct
     1561 taacgtgagt tttcgttcca ctgagcgtca gaccccgtag aaaagatcaa aggatcttct
     1621 tgagatcctt tttttctgcg cgtaatctgc tgcttgcaaa caaaaaaacc accgctacca
     1681 gcggtggttt gtttgccgga tcaagagcta ccaactcttt ttccgaaggt aactggcttc
     1741 agcagagcgc agataccaaa tactgtcctt ctagtgtagc cgtagttagg ccaccacttc
     1801 aagaactctg tagcaccgcc tacatacctc gctctgctaa tcctgttacc agtggctgct
     1861 gccagtggcg ataagtcgtg tcttaccggg ttggactcaa gacgatagtt accggataag
     1921 gcgcagcggt cgggctgaac ggggggttcg tgcacacagc ccagcttgga gcgaacgacc
     1981 tacaccgaac tgagatacct acagcgtgag cattgagaaa gcgccacgct tcccgaaggg
     2041 agaaaggcgg acaggtatcc ggtaagcggc agggtcggaa caggagagcg cacgagggag
     2101 cttccagggg gaaacgcctg gtatctttat agtcctgtcg ggtttcgcca cctctgactt
     2161 gagcgtcgat ttttgtgatg ctcgtcaggg gggcggagcc tatggaaaaa cgccagcaac
     2221 gcggcctttt tacggttcct ggccttttgc tggccttttg ctcacatgtt ctttcctgcg
     2281 ttatcccctg attctgtgga taaccgtatt accgcctttg agtgagctga taccgctcgc
     2341 cgcagccgaa cgaccgagcg cagcgagtca gtgagcgagg aagcggaaga gcgcctgatg
     2401 cggtattttc tccttacgca tctgtgcggt atttcacacc gcagaccagc cgcgtaacct
     2461 ggcaaaatcg gttacggttg agtaataaat ggatgccctg cgtaagcggg tgtgggcgga
     2521 caataaagtc ttaaactgaa caaaatagat ctaaactatg acaataaagt cttaaactag
     2581 acagaatagt tgtaaactga aatcagtcca gttatgctgt gaaaaagcat actggacttt
     2641 tgttatggct aaagcaaact cttcattttc tgaagtgcaa attgcccgtc gtattaaaga
     2701 ggggcgtggc caagggcatg gtaaagacta tattcgcggc gttgtgacaa tttaccgaac
     2761 aactccgcgg ccgggaagcc gatctcggct tgaacgaatt gttaggtggc ggtacttggg
     2821 tcgatatcaa agtgcatcac ttcttcccgt atgcccaact ttgtatagag agccactgcg
     2881 ggatcgtcac cgtaatctgc ttgcacgtag atcacataag caccaagcgc gttggcctca
     2941 tgcttgagga gattgatgag cgcggtggca atgccctgcc tccggtgctc gccggagact
     3001 gcgagatcat agatatagat ctcactacgc ggctgctcaa acctgggcag aacgtaagcc
     3061 gcgagagcgc caacaaccgc ttcttggtcg aaggcagcaa gcgcgatgaa tgtcttacta
     3121 cggagcaagt tcccgaggta atcggagtcc ggctgatgtt gggagtaggt ggctacgtct
     3181 ccgaactcac gaccgaaaag atcaagagca gcccgcatgg atttgacttg gtcagggccg
     3241 agcctacatg tgcgaatgat gcccatactt gagccaccta actttgtttt agggcgactg
     3301 ccctgctgcg taacatcgtt gctgctgcgt aacatcgttg ctgctccata acatcaaaca
     3361 tcgacccacg gcgtaacgcg cttgctgctt ggatgcccga ggcatagact gtacaaaaaa
     3421 acagtcataa caagccatga aaaccgccac tgcgccgtta ccaccgctgc gttcggtcaa
     3481 ggttctggac cagttgcgtg agcgcatacg ctacttgcat tacagtttac gaaccgaaca
     3541 ggcttatgtc aactgggttc gtgccttcat ccgtttccac ggtgtgcgtc acccggcaac
     3601 cttgggcagc agcgaagtcg aggcatttct gtcctggctg gcgaacgagc gcaaggtttc
     3661 ggtctccacg catcgtcagg cattggcggc cttgctgttc ttctacggca aggtgctgtg
     3721 cacggatctg ccctggcttc aggagatcgg aagacctcgg ccgtcgcggc gcttgccggt
     3781 ggtgctgacc ccggatgaag tggttcgcat cctcggtttt ctggaaggcg agcatcgttt
     3841 gttcgcccag gactctagct atagttctag tggttggcta cgtatactcc ggaatattaa
     3901 tagatcatgg agataattaa aatgataacc atctcgcaaa taaataagta ttttactgtt
     3961 ttcgtaacag ttttgtaata aaaaaaccta taaatattcc ggattattca taccgtccca
     4021 ccatcgggcg cggatctcgg tccgaaacca tgtcgtacta ccatcaccat caccatcacg
     4081 attacgatat cccaacgacc gaaaacctgt attttcaggg cgccatggga tccggaattc
     4141 aaaggcctac gtcgacgagc tcactagtcg cggccgcttt cgaatctaga gcctgcagtc
     4201 tcgaggcatg cggtaccaag cttgtcgaga agtactagag gatcataatc agccatacca
     4261 catttgtaga ggttttactt gctttaaaaa acctcccaca cctccccctg aacctgaaac
     4321 ataaaatgaa tgcaattgtt gttgttaact tgtttattgc agcttataat ggttacaaat
     4381 aaagcaatag catcacaaat ttcacaaata aagcattttt ttcactgcat tctagttgtg
     4441 gtttgtccaa actcatcaat gtatcttatc atgtctggat ctgatcactg atatcgccta
     4501 ggagatccga accagataag tgaaatctag ttccaaacta ttttgtcatt tttaattttc
     4561 gtattagctt acgacgctac acccagttcc catctatttt gtcactcttc cctaaataat
     4621 ccttaaaaac tccatttcca cccctcccag ttcccaacta ttttgtccgc ccacagcggg
     4681 gcatttttct tcctgttatg tttttaatca aacatcctgc caactccatg tgacaaaccg
     4741 tcatcttcgg ctactttttc tctgtcacag aatgaaaatt tttctgtcat ctcttcgtta
     4801 ttaatgtttg taattgactg aatatcaacg cttatttgca gcctgaatgg cgaatgg
//
