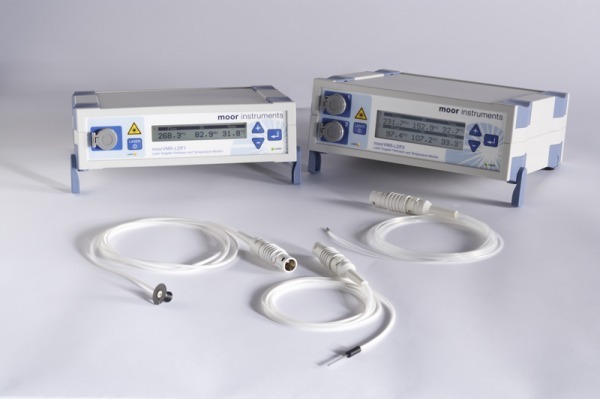

激光多普勒血流仪（实验室版）

专为实验室设计，特别是已经有了多通道生理记录仪的用户

解决了多通道生理仪的集成激光多普勒血流仪模块的不稳定、不精确、基线漂移的缺点
为用户提供独立激光多普勒血流仪的全部优点
简单实用、节约空间
高度集成、可随时增加多通道实现多处同时监测
一个主机设计子机，支持USB及数据线连接电脑
与其他机能学系统（如多导生理仪）统兼容

The moorLAB™ is designed specifically for the research market. It uses identical signal processing and internal optical design as found in our flagship DRT4™ model so there is absolutely no compromise in the measurement quality. We have left off features that are non essential for researchers leaving an easy to use, high quality yet competitively priced laser Doppler monitor. The system is available in a 1,2,3 or 4 channel configuration and upgrade is a very simple matter of connecting extra satellite channels to the base Server unit. Additional satellite channels can be purchased separately at any time.

The moorLAB™ will interface directly with your PC through either a USB or Serial port for data collection and analysis using our Windows based package, moorSOFT™ for Windows/moorLAB. All software is produced in-house to allow us full control over specification and functionality. If you use a data acquisition system already then data is also output as an analogue signal (0 to 10V) through convenient BNC connectors on the rear panel of the Server.

A wide range of optic probes is available to allow assessments from almost any tissue.

The perfect low cost solution for research measurements!

DRT4 激光多普勒双通道旗舰

本激光多普勒血流仪自带屏幕，直接操控
包含血流监测、温度刺激、压力、离子导入药物刺激等多个模块

软件可升级为皮瓣血流灌注量分析专业版，4种特色功能专皮瓣血流监测设计，在国外成功应用于显微外科、手足外科科研临床多年。
可接受经皮氧分压信号，Gene&I全球独家选配连接无创组织血氧饱和度模块（此项技术为2006年硅谷最新技术，相对于经皮氧分压来说有着明显优势。）详情请咨询Gene&I.
激光多普勒血流仪专用于测量组织毛细血管的血流量，测量毛细血管对加热、冷、姿势变化、压力变化、血管活性药物、呼吸等反应。可以灵活的进行激光多普勒血流通道的扩展，并可以通过模拟信号输出或数字信号输出连接到其它生理记录设备或计算机，通过软件进行数据分析。
通道数:1,2,3,4通道可选
用于微循环研究，测量动物及人体组织血流，与超声多普勒血流仪的区别在于后者是测量某根血管的血流，而激光多普勒血流仪则是测量某个组织区域的血流量。对于烧伤、皮瓣移植等研究有着独特的优势。共有10多款功能特点各异的激光多普勒血流产品。欢迎各位老师来电或mail咨询。
您可以在Ｇｅｎｅ＆I为您提供的十数款激光多普勒血流系列产品中选择。

《Circulation》、《Circulation Recerch》、《Stroke》及各药理、生理、病理生理国际高IF杂志中，您可以查到数以千计的论文。再加上Gene&I国内博士团队的培训指导，相信您的实验一定会更加顺利！

T4搭配专为深部组织、骨骼（股骨头）的血流量监测而设计功率为20mW 785NM 典型应用：术中骨膜血流灌注量监测（如股骨头）经皮肌肉组织血流灌注量监测 The IRLD20? infra-red laser diode light source is a separate mains powered accessory for the DRT4? which allows measurements to be made using a higher power laser than that used in the standard DRT4?. The IRLD20? allows measurements to be taken specifically from deeper tissues where measurements are impractical using the lower power of the standard DRT4? and the narrower fibre separation of standard probes. The typical output power from the IRLD20? probe tip is approximately 20 mW at 785nm. Typical applications include measurements from bone at surgery (e.g. assessment of flow in the femoral head), or non invasive measurements of muscle flow through lean skin.
