pQE-60 Plasmid

pQE-60

Search name
pQE-60,Plasmid pQE-60,pQE-60 vector

pQE-60 Plasmid Information
Promoter: T5

Plasmid classification: Escherichia coli vector; pQE series expression plasmid

Plasmid size: 3431bp

Plasmid label: C-His

Prokaryotic resistance: ampicillin Amp

Cloned strain: Escherichia coli DH5 alpha

Culture conditions: 37 centigrade, aerobic, LB

Expression host: Escherichia coli M15

Culture conditions: 37 centigrade, aerobic, LB

5'sequencing primers: pQE30-F: AGCGGATAACAATTTCACACAG

3'sequencing primers: pQE30-R: TTCTGAGGTCATTACTGGATC

pQE-60 Plasmid Description
PQE-60 is a pQE series expression plasmid of Escherichia coli.

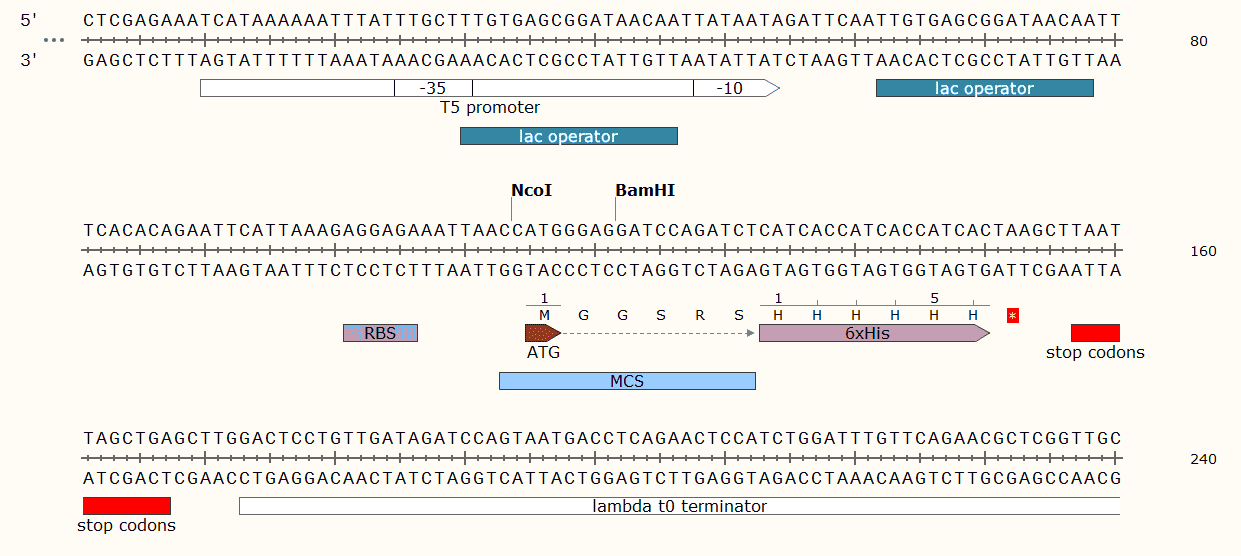

pQE-60 Plasmid Sequence
LOCUS       Exported                3431 bp ds-DNA     circular SYN 08-SEP-2016
DEFINITION  synthetic circular DNA
KEYWORDS    PQE-60
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 3431)
  TITLE     Direct Submission

FEATURES             Location/Qualifiers
     source          1..3431
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     promoter        10..54
                     /note="T5 promoter"
                     /note="bacteriophage T5 promoter for E. coli RNA
                     polymerase, with embedded lac operator"
     protein_bind    30..46
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="lac operator"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     protein_bind    62..78
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="lac operator"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     RBS             97..108
                     /note="strong bacterial ribosome binding site (Elowitz and
                     Leibler, 2000)"
     CDS             133..150
                     /codon_start=1
                     /product="6xHis affinity tag"
                     /note="6xHis"
                     /translation="HHHHHH"
     terminator      173..267
                     /note="lambda t0 terminator"
                     /note="transcription terminator from phage lambda"
     terminator      1039..1125
                     /gene="Escherichia coli rrnB"
                     /note="rrnB T1 terminator"
                     /note="transcription terminator T1 from the E. coli rrnB
                     gene"
     misc_feature    1281..1421
                     /note="bom"
                     /note="basis of mobility region from pBR322"
     rep_origin      complement(1607..2195)
                     /direction=LEFT
                     /note="ori"
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(2366..3226)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /note="AmpR"
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(3227..3331)
                     /gene="bla"
                     /note="AmpR promoter"
ORIGIN
        1 ctcgagaaat cataaaaaat ttatttgctt tgtgagcgga taacaattat aatagattca
       61 attgtgagcg gataacaatt tcacacagaa ttcattaaag aggagaaatt aaccatggga
      121 ggatccagat ctcatcacca tcaccatcac taagcttaat tagctgagct tggactcctg
      181 ttgatagatc cagtaatgac ctcagaactc catctggatt tgttcagaac gctcggttgc
      241 cgccgggcgt tttttattgg tgagaatcca agctagcttg gcgagatttt caggagctaa
      301 ggaagctaaa atggagaaaa aaatcactgg atataccacc gttgatatat cccaatggca
      361 tcgtaaagaa cattttgagg catttcagtc agttgctcaa tgtacctata accagaccgt
      421 tcagctggat attacggcct ttttaaagac cgtaaagaaa aataagcaca agttttatcc
      481 ggcctttatt cacattcttg cccgcctgat gaatgctcat ccggaatttc gtatggcaat
      541 gaaagacggt gagctggtga tatgggatag tgttcaccct tgttacaccg ttttccatga
      601 gcaaactgaa acgttttcat cgctctggag tgaataccac gacgatttcc ggcagtttct
      661 acacatatat tcgcaagatg tggcgtgtta cggtgaaaac ctggcctatt tccctaaagg
      721 gtttattgag aatatgtttt tcgtctcagc caatccctgg gtgagtttca ccagttttga
      781 tttaaacgtg gccaatatgg acaacttctt cgcccccgtt ttcaccatgc atgggcaaat
      841 attatacgca aggcgacaag gtgctgatgc cgctggcgat tcaggttcat catgccgtct
      901 gtgatggctt ccatgtcggc agaatgctta atgaattaca acagtactgc gatgagtggc
      961 agggcggggc gtaatttttt taaggcagtt attggtgccc ttaaacgcct ggggtaatga
     1021 ctctctagct tgaggcatca aataaaacga aaggctcagt cgaaagactg ggcctttcgt
     1081 tttatctgtt gtttgtcggt gaacgctctc ctgagtagga caaatccgcc gctctagagc
     1141 tgcctcgcgc gtttcggtga tgacggtgaa aacctctgac acatgcagct cccggagacg
     1201 gtcacagctt gtctgtaagc ggatgccggg agcagacaag cccgtcaggg cgcgtcagcg
     1261 ggtgttggcg ggtgtcgggg cgcagccatg acccagtcac gtagcgatag cggagtgtat
     1321 actggcttaa ctatgcggca tcagagcaga ttgtactgag agtgcaccat atgcggtgtg
     1381 aaataccgca cagatgcgta aggagaaaat accgcatcag gcgctcttcc gcttcctcgc
     1441 tcactgactc gctgcgctcg gtcgttcggc tgcggcgagc ggtatcagct cactcaaagg
     1501 cggtaatacg gttatccaca gaatcagggg ataacgcagg aaagaacatg tgagcaaaag
     1561 gccagcaaaa ggccaggaac cgtaaaaagg ccgcgttgct ggcgtttttc cataggctcc
     1621 gcccccctga cgagcatcac aaaaatcgac gctcaagtca gaggtggcga aacccgacag
     1681 gactataaag ataccaggcg tttccccctg gaagctccct cgtgcgctct cctgttccga
     1741 ccctgccgct taccggatac ctgtccgcct ttctcccttc gggaagcgtg gcgctttctc
     1801 atagctcacg ctgtaggtat ctcagttcgg tgtaggtcgt tcgctccaag ctgggctgtg
     1861 tgcacgaacc ccccgttcag cccgaccgct gcgccttatc cggtaactat cgtcttgagt
     1921 ccaacccggt aagacacgac ttatcgccac tggcagcagc cactggtaac aggattagca
     1981 gagcgaggta tgtaggcggt gctacagagt tcttgaagtg gtggcctaac tacggctaca
     2041 ctagaaggac agtatttggt atctgcgctc tgctgaagcc agttaccttc ggaaaaagag
     2101 ttggtagctc ttgatccggc aaacaaacca ccgctggtag cggtggtttt tttgtttgca
     2161 agcagcagat tacgcgcaga aaaaaaggat ctcaagaaga tcctttgatc ttttctacgg
     2221 ggtctgacgc tcagtggaac gaaaactcac gttaagggat tttggtcatg agattatcaa
     2281 aaaggatctt cacctagatc cttttaaatt aaaaatgaag ttttaaatca atctaaagta
     2341 tatatgagta aacttggtct gacagttacc aatgcttaat cagtgaggca cctatctcag
     2401 cgatctgtct atttcgttca tccatagttg cctgactccc cgtcgtgtag ataactacga
     2461 tacgggaggg cttaccatct ggccccagtg ctgcaatgat accgcgagac ccacgctcac
     2521 cggctccaga tttatcagca ataaaccagc cagccggaag ggccgagcgc agaagtggtc
     2581 ctgcaacttt atccgcctcc atccagtcta ttaattgttg ccgggaagct agagtaagta
     2641 gttcgccagt taatagtttg cgcaacgttg ttgccattgc tacaggcatc gtggtgtcac
     2701 gctcgtcgtt tggtatggct tcattcagct ccggttccca acgatcaagg cgagttacat
     2761 gatcccccat gttgtgcaaa aaagcggtta gctccttcgg tcctccgatc gttgtcagaa
     2821 gtaagttggc cgcagtgtta tcactcatgg ttatggcagc actgcataat tctcttactg
     2881 tcatgccatc cgtaagatgc ttttctgtga ctggtgagta ctcaaccaag tcattctgag
     2941 aatagtgtat gcggcgaccg agttgctctt gcccggcgtc aatacgggat aataccgcgc
     3001 cacatagcag aactttaaaa gtgctcatca ttggaaaacg ttcttcgggg cgaaaactct
     3061 caaggatctt accgctgttg agatccagtt cgatgtaacc cactcgtgca cccaactgat
     3121 cttcagcatc ttttactttc accagcgttt ctgggtgagc aaaaacagga aggcaaaatg
     3181 ccgcaaaaaa gggaataagg gcgacacgga aatgttgaat actcatactc ttcctttttc
     3241 aatattattg aagcatttat cagggttatt gtctcatgag cggatacata tttgaatgta
     3301 tttagaaaaa taaacaaata ggggttccgc gcacatttcc ccgaaaagtg ccacctgacg
     3361 tctaagaaac cattattatc atgacattaa cctataaaaa taggcgtatc acgaggccct
     3421 ttcgtcttca c
//
