pGEX-5X-3大肠表达质粒

基本信息
名称：pGEX-5X-3大肠表达质粒
别称: pGEX5X3;pGEX5X-3

启动子:	Tac
复制子:	pBR322
质粒分类:	大肠杆菌载体；PGEX系列表达质粒
质粒大小:	4974bp
原核抗性:	氨苄青霉素Amp
克隆菌株:	DH5a
培养条件:	37度
表达宿主:	大肠杆菌
培养条件:	37℃，有氧，LB
诱导方式:	IPTG或乳糖及其类似物
5'测序引物:	pGEX5: GGGCTGGCAAGCCACGTTTGGTG
3'测序引物:	pGEX3: CCGGGAGCTGCATGTGTCAGAGG
备注:	可用GST亲和柱纯化重组蛋白

质粒属性

载体宿主：	大肠杆菌
载体用途：	蛋白表达
基因种属：	空载体
基因类型：	ORF
原核抗性：	Amp
真核抗性：
荧光蛋白：

质粒简介

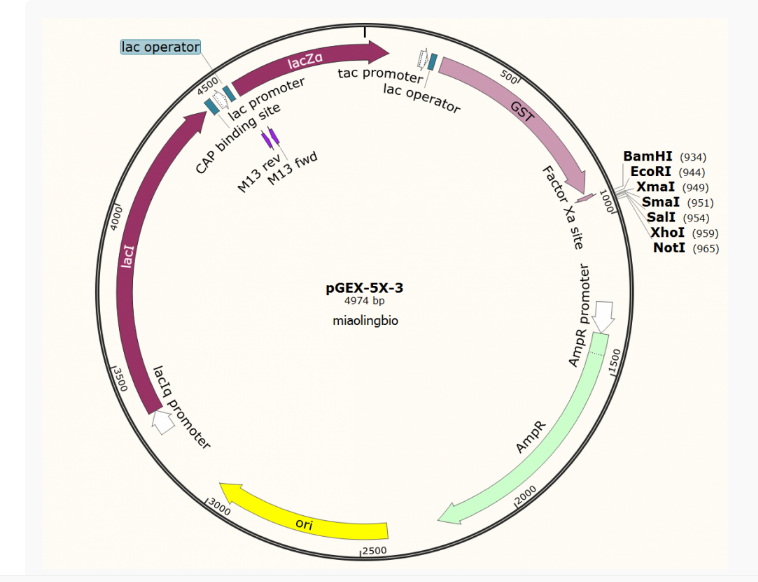

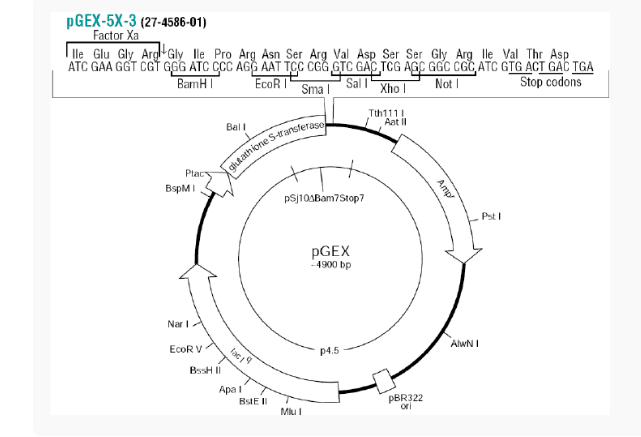

质粒图谱


质粒序列
LOCUS       Exported File           4974 bp ds-DNA    circular SYN 12-4-2015
DEFINITION  .
ACCESSION   .
VERSION     .
KEYWORDS    pGEX-5X-3
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 4974)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported 2015-4-12 from MLCC
            http://www.miaolingbio.com
FEATURES             Location/Qualifiers
     source          1..4974
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     misc_feature    183..211
                     /note="tac promoter"
                     /note="strong E. coli promoter; hybrid between the trp and
                     lac?UV5 promoters"
     protein_bind    219..235
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="lac operator"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     CDS             258..911
                     /codon_start=1
                     /gene="
                     "
                     /product="glutathione S-transferase from Schistosoma
                     japonicum"
                     /note="GST"
                     /translation="MSPILGYWKIKGLVQPTRLLLEYLEEKYEEHLYERDEGDKWRNKK
                     FELGLEFPNLPYYIDGDVKLTQSMAIIRYIADKHNMLGGCPKERAEISMLEGAVLDIRY
                     GVSRIAYSKDFETLKVDFLSKLPEMLKMFEDRLCHKTYLNGDHVTHPDFMLYDALDVVL
                     YMDPMCLDAFPKLVCFKKRIEAIPQIDKYLKSSKYIAWPLQGWQATFGGGDHPPK"
     CDS             921..932
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /note="Factor Xa site"
                     /translation="IEGR"
     promoter        1277..1381
                     /gene="bla"
                     /note="AmpR promoter"
     CDS             1382..2242
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /note="AmpR"
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPAAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     rep_origin      2413..3001
                     /direction=RIGHT
                     /note="ori"
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     promoter        3245..3322
                     /gene="lacI (mutant)"
                     /note="lacIq promoter"
                     /note="In the lacIq allele, a single base change in the
                     promoter boosts expression of the lacI gene about 10-fold."
     CDS             3323..4405
                     /codon_start=1
                     /gene="lacI"
                     /product="lac repressor"
                     /note="lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
                     /translation="MKPVTLYDVAEYAGVSYQTVSRVVNQASHVSAKTREKVEAAMAEL
                     NYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKSRADQLGASVVVSMVERSGV
                     EACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNVPALFLDVSDQTPINSIIFSH
                     EDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGWHKYLTRNQIQPIAEREGDWSA
                     MSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITESGLRVGADISVVGYDDTEDSSC
                     YIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQLLPVSLVKRKTTLAPNTQTASPR
                     ALADSLMQLARQVSRLESGQ"
     protein_bind    4418..4439
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding site"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     promoter        4454..4484
                     /note="lac promoter"
                     /note="promoter for the E. coli lac operon"
     protein_bind    4492..4508
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="lac operator"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     primer_bind     4516..4532
                     /note="M13 rev"
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(4548..4564)
                     /note="M13 fwd"
                     /note="common sequencing primer, one of multiple similar
                     variants"
ORIGIN
        1 agcttatcga ctgcacggtg caccaatgct tctggcgtca ggcagccatc ggaagctgtg
       61 gtatggctgt gcaggtcgta aatcactgca taattcgtgt cgctcaaggc gcactcccgt
      121 tctggataat gttttttgcg ccgacatcat aacggttctg gcaaatattc tgaaatgagc
      181 tgttgacaat taatcatcgg ctcgtataat gtgtggaatt gtgagcggat aacaatttca
      241 cacaggaaac agtattcatg tcccctatac taggttattg gaaaattaag ggccttgtgc
      301 aacccactcg acttcttttg gaatatcttg aagaaaaata tgaagagcat ttgtatgagc
      361 gcgatgaagg tgataaatgg cgaaacaaaa agtttgaatt gggtttggag tttcccaatc
      421 ttccttatta tattgatggt gatgttaaat taacacagtc tatggccatc atacgttata
      481 tagctgacaa gcacaacatg ttgggtggtt gtccaaaaga gcgtgcagag atttcaatgc
      541 ttgaaggagc ggttttggat attagatacg gtgtttcgag aattgcatat agtaaagact
      601 ttgaaactct caaagttgat tttcttagca agctacctga aatgctgaaa atgttcgaag
      661 atcgtttatg tcataaaaca tatttaaatg gtgatcatgt aacccatcct gacttcatgt
      721 tgtatgacgc tcttgatgtt gttttataca tggacccaat gtgcctggat gcgttcccaa
      781 aattagtttg ttttaaaaaa cgtattgaag ctatcccaca aattgataag tacttgaaat
      841 ccagcaagta tatagcatgg cctttgcagg gctggcaagc cacgtttggt ggtggcgacc
      901 atcctccaaa atcggatctg atcgaaggtc gtgggatccc caggaattcc cgggtcgact
      961 cgagcggccg catcgtgact gactgacgat ctgcctcgcg cgtttcggtg atgacggtga
     1021 aaacctctga cacatgcagc tcccggagac ggtcacagct tgtctgtaag cggatgccgg
     1081 gagcagacaa gcccgtcagg gcgcgtcagc gggtgttggc gggtgtcggg gcgcagccat
     1141 gacccagtca cgtagcgata gcggagtgta taattcttga agacgaaagg gcctcgtgat
     1201 acgcctattt ttataggtta atgtcatgat aataatggtt tcttagacgt caggtggcac
     1261 ttttcgggga aatgtgcgcg gaacccctat ttgtttattt ttctaaatac attcaaatat
     1321 gtatccgctc atgagacaat aaccctgata aatgcttcaa taatattgaa aaaggaagag
     1381 tatgagtatt caacatttcc gtgtcgccct tattcccttt tttgcggcat tttgccttcc
     1441 tgtttttgct cacccagaaa cgctggtgaa agtaaaagat gctgaagatc agttgggtgc
     1501 acgagtgggt tacatcgaac tggatctcaa cagcggtaag atccttgaga gttttcgccc
     1561 cgaagaacgt tttccaatga tgagcacttt taaagttctg ctatgtggcg cggtattatc
     1621 ccgtgttgac gccgggcaag agcaactcgg tcgccgcata cactattctc agaatgactt
     1681 ggttgagtac tcaccagtca cagaaaagca tcttacggat ggcatgacag taagagaatt
     1741 atgcagtgct gccataacca tgagtgataa cactgcggcc aacttacttc tgacaacgat
     1801 cggaggaccg aaggagctaa ccgctttttt gcacaacatg ggggatcatg taactcgcct
     1861 tgatcgttgg gaaccggagc tgaatgaagc cataccaaac gacgagcgtg acaccacgat
     1921 gcctgcagca atggcaacaa cgttgcgcaa actattaact ggcgaactac ttactctagc
     1981 ttcccggcaa caattaatag actggatgga ggcggataaa gttgcaggac cacttctgcg
     2041 ctcggccctt ccggctggct ggtttattgc tgataaatct ggagccggtg agcgtgggtc
     2101 tcgcggtatc attgcagcac tggggccaga tggtaagccc tcccgtatcg tagttatcta
     2161 cacgacgggg agtcaggcaa ctatggatga acgaaataga cagatcgctg agataggtgc
     2221 ctcactgatt aagcattggt aactgtcaga ccaagtttac tcatatatac tttagattga
     2281 tttaaaactt catttttaat ttaaaaggat ctaggtgaag atcctttttg ataatctcat
     2341 gaccaaaatc ccttaacgtg agttttcgtt ccactgagcg tcagaccccg tagaaaagat
     2401 caaaggatct tcttgagatc ctttttttct gcgcgtaatc tgctgcttgc aaacaaaaaa
     2461 accaccgcta ccagcggtgg tttgtttgcc ggatcaagag ctaccaactc tttttccgaa
     2521 ggtaactggc ttcagcagag cgcagatacc aaatactgtc cttctagtgt agccgtagtt
     2581 aggccaccac ttcaagaact ctgtagcacc gcctacatac ctcgctctgc taatcctgtt
     2641 accagtggct gctgccagtg gcgataagtc gtgtcttacc gggttggact caagacgata
     2701 gttaccggat aaggcgcagc ggtcgggctg aacggggggt tcgtgcacac agcccagctt
     2761 ggagcgaacg acctacaccg aactgagata cctacagcgt gagctatgag aaagcgccac
     2821 gcttcccgaa gggagaaagg cggacaggta tccggtaagc ggcagggtcg gaacaggaga
     2881 gcgcacgagg gagcttccag ggggaaacgc ctggtatctt tatagtcctg tcgggtttcg
     2941 ccacctctga cttgagcgtc gatttttgtg atgctcgtca ggggggcgga gcctatggaa
     3001 aaacgccagc aacgcggcct ttttacggtt cctggccttt tgctggcctt ttgctcacat
     3061 gttctttcct gcgttatccc ctgattctgt ggataaccgt attaccgcct ttgagtgagc
     3121 tgataccgct cgccgcagcc gaacgaccga gcgcagcgag tcagtgagcg aggaagcgga
     3181 agagcgcctg atgcggtatt ttctccttac gcatctgtgc ggtatttcac accgcataaa
     3241 ttccgacacc atcgaatggt gcaaaacctt tcgcggtatg gcatgatagc gcccggaaga
     3301 gagtcaattc agggtggtga atgtgaaacc agtaacgtta tacgatgtcg cagagtatgc
     3361 cggtgtctct tatcagaccg tttcccgcgt ggtgaaccag gccagccacg tttctgcgaa
     3421 aacgcgggaa aaagtggaag cggcgatggc ggagctgaat tacattccca accgcgtggc
     3481 acaacaactg gcgggcaaac agtcgttgct gattggcgtt gccacctcca gtctggccct
     3541 gcacgcgccg tcgcaaattg tcgcggcgat taaatctcgc gccgatcaac tgggtgccag
     3601 cgtggtggtg tcgatggtag aacgaagcgg cgtcgaagcc tgtaaagcgg cggtgcacaa
     3661 tcttctcgcg caacgcgtca gtgggctgat cattaactat ccgctggatg accaggatgc
     3721 cattgctgtg gaagctgcct gcactaatgt tccggcgtta tttcttgatg tctctgacca
     3781 gacacccatc aacagtatta ttttctccca tgaagacggt acgcgactgg gcgtggagca
     3841 tctggtcgca ttgggtcacc agcaaatcgc gctgttagcg ggcccattaa gttctgtctc
     3901 ggcgcgtctg cgtctggctg gctggcataa atatctcact cgcaatcaaa ttcagccgat
     3961 agcggaacgg gaaggcgact ggagtgccat gtccggtttt caacaaacca tgcaaatgct
     4021 gaatgagggc atcgttccca ctgcgatgct ggttgccaac gatcagatgg cgctgggcgc
     4081 aatgcgcgcc attaccgagt ccgggctgcg cgttggtgcg gatatctcgg tagtgggata
     4141 cgacgatacc gaagacagct catgttatat cccgccgtta accaccatca aacaggattt
     4201 tcgcctgctg gggcaaacca gcgtggaccg cttgctgcaa ctctctcagg gccaggcggt
     4261 gaagggcaat cagctgttgc ccgtctcact ggtgaaaaga aaaaccaccc tggcgcccaa
     4321 tacgcaaacc gcctctcccc gcgcgttggc cgattcatta atgcagctgg cacgacaggt
     4381 ttcccgactg gaaagcgggc agtgagcgca acgcaattaa tgtgagttag ctcactcatt
     4441 aggcacccca ggctttacac tttatgcttc cggctcgtat gttgtgtgga attgtgagcg
     4501 gataacaatt tcacacagga aacagctatg accatgatta cggattcact ggccgtcgtt
     4561 ttacaacgtc gtgactggga aaaccctggc gttacccaac ttaatcgcct tgcagcacat
     4621 ccccctttcg ccagctggcg taatagcgaa gaggcccgca ccgatcgccc ttcccaacag
     4681 ttgcgcagcc tgaatggcga atggcgcttt gcctggtttc cggcaccaga agcggtgccg
     4741 gaaagctggc tggagtgcga tcttcctgag gccgatactg tcgtcgtccc ctcaaactgg
     4801 cagatgcacg gttacgatgc gcccatctac accaacgtaa cctatcccat tacggtcaat
     4861 ccgccgtttg ttcccacgga gaatccgacg ggttgttact cgctcacatt taatgttgat
     4921 gaaagctggc tacaggaagg ccagacgcga attatttttg atggcgttgg aatt
//

质粒菌株产品操作说明书
一、扩增流程
         收到产品后，请先根据产品管壁标签来判断产品形式，并在扩增前准确查找该质粒菌株的抗性、感受态和培养温度。
         1、质粒干粉（常温运输，存于-20度，90天保质期，请务必转化挑单克隆培养，不要直接使用和测序）
              ①收到质粒干粉后请先5000rpm离心1min，再加入20μl ddH2O去离子水溶解质粒；
              ②取1支100μl 感受态于冰上解冻10min，加入2μl质粒，再冰浴30min后，42℃热激60s，不要搅动，再冰浴2min；（从第二步开始均要在超净工作台中无菌操作）
              ③加入900μl无抗的LB液体培养基，180rpm震荡37℃培养45min；
              ④6000rpm离心5min，仅留100μl上清液重悬细菌沉淀，并涂布至目标质粒抗性的LB平板上；（可使用本平台的平板涂布专用玻璃珠进行涂布，可以比传统涂布方法获得更多转化子）
              ⑤将平板正向培养1h，再倒置37℃培养14h。如果要求是30度则培养20h；
（菌落过多则将质粒稀释后再转化。没有菌落则加入10μl质粒转化。另不要直接转表达感受态，要先转克隆感受态，重提质粒后再导入表达感受态）
              ⑥挑取单菌落至LB液体培养基中，加入对应抗生素，220rpm震荡培养14h，根据实验需要和质粒提取试剂盒说明书提取质粒。
        2、甘油菌种（冰袋运输，存于-80℃，保质期90天，请务必划线挑单克隆培养）
              四区划线后挑单菌落培养，酵母菌需要先液体复苏再四区划线，再挑单菌落液体培养。
        3、穿刺菌种（冰袋运输，存于4℃，保质期7天）
              穿刺接种，液体培养后四区划线，再挑单菌落液体培养。
        4、菌落平板（冰袋运输，存于4℃，保质期7天）
              直接挑取单菌落至液体培养基中。
        5、液体质粒（冰袋运输，存于-20℃，保质期90天）
              单独提取的液体质粒收到后可直接使用。
        6、滤纸质粒（常温运输，存于-20度，90天保质期，请务必转化挑单克隆培养，不要直接使用和测序）
              收到货后将滤纸画圈部分剪下放入EP管中，加100ul无菌水将滤纸浸湿并浸泡5min，吸取5ul质粒转化，离心全涂。
