pGEX-5X-1大肠表达质粒

基本信息
名称：pGEX-5X-1大肠表达质粒
别称: pGEX5X1;pGEX5X-1

启动子:	Tac
复制子:	pBR322
质粒分类:	大肠杆菌载体；PGEX系列表达质粒
质粒大小:	4972bp
质粒标签:	N-GST，N-Factor Xa
原核抗性:	Amp
克隆菌株:	DH5a
培养条件:	37度
表达宿主:	大肠杆菌
培养条件:	37℃，有氧，LB
诱导方式:	IPTG或乳糖及其类似物
5'测序引物:	pGEX5: GGGCTGGCAAGCCACGTTTGGTG
3'测序引物:	pGEX3: CCGGGAGCTGCATGTGTCAGAGG
备注:	可用GST亲和柱纯化重组蛋白

质粒属性

载体宿主：	大肠杆菌
载体用途：	蛋白表达
基因种属：	空载体
基因类型：	ORF
原核抗性：	Amp
真核抗性：
荧光蛋白：

质粒简介

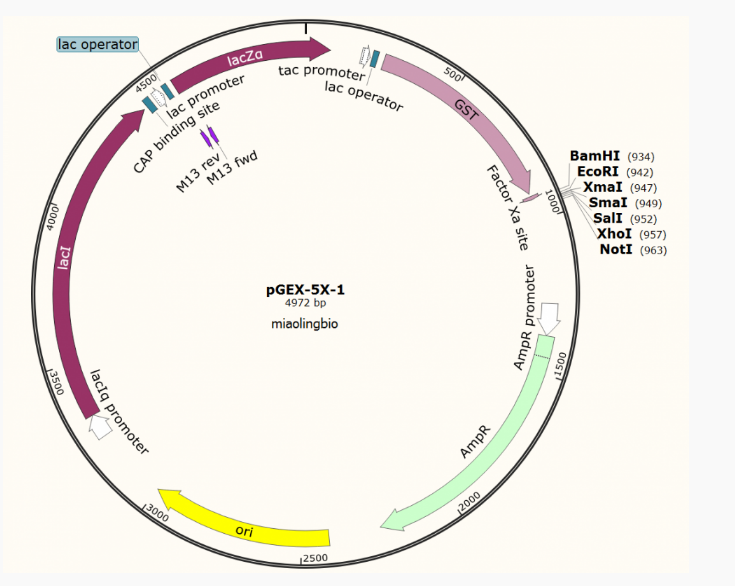

质粒图谱


质粒序列
LOCUS       Exported File           4972 bp ds-DNA    circular SYN 12-4-2015
DEFINITION  .
ACCESSION   .
VERSION     .
KEYWORDS    Untitled
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 4972)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported 2015-4-12 from MLCC
            http://www.miaolingbio.com
FEATURES             Location/Qualifiers
     source          1..4972
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     misc_feature    183..211
                     /note="tac promoter"
                     /note="strong E. coli promoter; hybrid between the trp and
                     lac?UV5 promoters"
     protein_bind    219..235
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="lac operator"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     CDS             258..911
                     /codon_start=1
                     /gene="
                     "
                     /product="glutathione S-transferase from Schistosoma
                     japonicum"
                     /note="GST"
                     /translation="MSPILGYWKIKGLVQPTRLLLEYLEEKYEEHLYERDEGDKWRNKK
                     FELGLEFPNLPYYIDGDVKLTQSMAIIRYIADKHNMLGGCPKERAEISMLEGAVLDIRY
                     GVSRIAYSKDFETLKVDFLSKLPEMLKMFEDRLCHKTYLNGDHVTHPDFMLYDALDVVL
                     YMDPMCLDAFPKLVCFKKRIEAIPQIDKYLKSSKYIAWPLQGWQATFGGGDHPPK"
     CDS             921..932
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /note="Factor Xa site"
                     /translation="IEGR"
     promoter        1275..1379
                     /gene="bla"
                     /note="AmpR promoter"
     CDS             1380..2240
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /note="AmpR"
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPAAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     rep_origin      2411..2999
                     /direction=RIGHT
                     /note="ori"
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     promoter        3243..3320
                     /gene="lacI (mutant)"
                     /note="lacIq promoter"
                     /note="In the lacIq allele, a single base change in the
                     promoter boosts expression of the lacI gene about 10-fold."
     CDS             3321..4403
                     /codon_start=1
                     /gene="lacI"
                     /product="lac repressor"
                     /note="lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
                     /translation="MKPVTLYDVAEYAGVSYQTVSRVVNQASHVSAKTREKVEAAMAEL
                     NYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKSRADQLGASVVVSMVERSGV
                     EACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNVPALFLDVSDQTPINSIIFSH
                     EDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGWHKYLTRNQIQPIAEREGDWSA
                     MSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITESGLRVGADISVVGYDDTEDSSC
                     YIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQLLPVSLVKRKTTLAPNTQTASPR
                     ALADSLMQLARQVSRLESGQ"
     protein_bind    4416..4437
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding site"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     promoter        4452..4482
                     /note="lac promoter"
                     /note="promoter for the E. coli lac operon"
     protein_bind    4490..4506
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="lac operator"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     primer_bind     4514..4530
                     /note="M13 rev"
                     /note="common sequencing primer, one of multiple similar
                     variants"
     primer_bind     complement(4546..4562)
                     /note="M13 fwd"
                     /note="common sequencing primer, one of multiple similar
                     variants"
ORIGIN
        1 agcttatcga ctgcacggtg caccaatgct tctggcgtca ggcagccatc ggaagctgtg
       61 gtatggctgt gcaggtcgta aatcactgca taattcgtgt cgctcaaggc gcactcccgt
      121 tctggataat gttttttgcg ccgacatcat aacggttctg gcaaatattc tgaaatgagc
      181 tgttgacaat taatcatcgg ctcgtataat gtgtggaatt gtgagcggat aacaatttca
      241 cacaggaaac agtattcatg tcccctatac taggttattg gaaaattaag ggccttgtgc
      301 aacccactcg acttcttttg gaatatcttg aagaaaaata tgaagagcat ttgtatgagc
      361 gcgatgaagg tgataaatgg cgaaacaaaa agtttgaatt gggtttggag tttcccaatc
      421 ttccttatta tattgatggt gatgttaaat taacacagtc tatggccatc atacgttata
      481 tagctgacaa gcacaacatg ttgggtggtt gtccaaaaga gcgtgcagag atttcaatgc
      541 ttgaaggagc ggttttggat attagatacg gtgtttcgag aattgcatat agtaaagact
      601 ttgaaactct caaagttgat tttcttagca agctacctga aatgctgaaa atgttcgaag
      661 atcgtttatg tcataaaaca tatttaaatg gtgatcatgt aacccatcct gacttcatgt
      721 tgtatgacgc tcttgatgtt gttttataca tggacccaat gtgcctggat gcgttcccaa
      781 aattagtttg ttttaaaaaa cgtattgaag ctatcccaca aattgataag tacttgaaat
      841 ccagcaagta tatagcatgg cctttgcagg gctggcaagc cacgtttggt ggtggcgacc
      901 atcctccaaa atcggatctg atcgaaggtc gtgggatccc cgaattcccg ggtcgactcg
      961 agcggccgca tcgtgactga ctgacgatct gcctcgcgcg tttcggtgat gacggtgaaa
     1021 acctctgaca catgcagctc ccggagacgg tcacagcttg tctgtaagcg gatgccggga
     1081 gcagacaagc ccgtcagggc gcgtcagcgg gtgttggcgg gtgtcggggc gcagccatga
     1141 cccagtcacg tagcgatagc ggagtgtata attcttgaag acgaaagggc ctcgtgatac
     1201 gcctattttt ataggttaat gtcatgataa taatggtttc ttagacgtca ggtggcactt
     1261 ttcggggaaa tgtgcgcgga acccctattt gtttattttt ctaaatacat tcaaatatgt
     1321 atccgctcat gagacaataa ccctgataaa tgcttcaata atattgaaaa aggaagagta
     1381 tgagtattca acatttccgt gtcgccctta ttcccttttt tgcggcattt tgccttcctg
     1441 tttttgctca cccagaaacg ctggtgaaag taaaagatgc tgaagatcag ttgggtgcac
     1501 gagtgggtta catcgaactg gatctcaaca gcggtaagat ccttgagagt tttcgccccg
     1561 aagaacgttt tccaatgatg agcactttta aagttctgct atgtggcgcg gtattatccc
     1621 gtgttgacgc cgggcaagag caactcggtc gccgcataca ctattctcag aatgacttgg
     1681 ttgagtactc accagtcaca gaaaagcatc ttacggatgg catgacagta agagaattat
     1741 gcagtgctgc cataaccatg agtgataaca ctgcggccaa cttacttctg acaacgatcg
     1801 gaggaccgaa ggagctaacc gcttttttgc acaacatggg ggatcatgta actcgccttg
     1861 atcgttggga accggagctg aatgaagcca taccaaacga cgagcgtgac accacgatgc
     1921 ctgcagcaat ggcaacaacg ttgcgcaaac tattaactgg cgaactactt actctagctt
     1981 cccggcaaca attaatagac tggatggagg cggataaagt tgcaggacca cttctgcgct
     2041 cggcccttcc ggctggctgg tttattgctg ataaatctgg agccggtgag cgtgggtctc
     2101 gcggtatcat tgcagcactg gggccagatg gtaagccctc ccgtatcgta gttatctaca
     2161 cgacggggag tcaggcaact atggatgaac gaaatagaca gatcgctgag ataggtgcct
     2221 cactgattaa gcattggtaa ctgtcagacc aagtttactc atatatactt tagattgatt
     2281 taaaacttca tttttaattt aaaaggatct aggtgaagat cctttttgat aatctcatga
     2341 ccaaaatccc ttaacgtgag ttttcgttcc actgagcgtc agaccccgta gaaaagatca
     2401 aaggatcttc ttgagatcct ttttttctgc gcgtaatctg ctgcttgcaa acaaaaaaac
     2461 caccgctacc agcggtggtt tgtttgccgg atcaagagct accaactctt tttccgaagg
     2521 taactggctt cagcagagcg cagataccaa atactgtcct tctagtgtag ccgtagttag
     2581 gccaccactt caagaactct gtagcaccgc ctacatacct cgctctgcta atcctgttac
     2641 cagtggctgc tgccagtggc gataagtcgt gtcttaccgg gttggactca agacgatagt
     2701 taccggataa ggcgcagcgg tcgggctgaa cggggggttc gtgcacacag cccagcttgg
     2761 agcgaacgac ctacaccgaa ctgagatacc tacagcgtga gctatgagaa agcgccacgc
     2821 ttcccgaagg gagaaaggcg gacaggtatc cggtaagcgg cagggtcgga acaggagagc
     2881 gcacgaggga gcttccaggg ggaaacgcct ggtatcttta tagtcctgtc gggtttcgcc
     2941 acctctgact tgagcgtcga tttttgtgat gctcgtcagg ggggcggagc ctatggaaaa
     3001 acgccagcaa cgcggccttt ttacggttcc tggccttttg ctggcctttt gctcacatgt
     3061 tctttcctgc gttatcccct gattctgtgg ataaccgtat taccgccttt gagtgagctg
     3121 ataccgctcg ccgcagccga acgaccgagc gcagcgagtc agtgagcgag gaagcggaag
     3181 agcgcctgat gcggtatttt ctccttacgc atctgtgcgg tatttcacac cgcataaatt
     3241 ccgacaccat cgaatggtgc aaaacctttc gcggtatggc atgatagcgc ccggaagaga
     3301 gtcaattcag ggtggtgaat gtgaaaccag taacgttata cgatgtcgca gagtatgccg
     3361 gtgtctctta tcagaccgtt tcccgcgtgg tgaaccaggc cagccacgtt tctgcgaaaa
     3421 cgcgggaaaa agtggaagcg gcgatggcgg agctgaatta cattcccaac cgcgtggcac
     3481 aacaactggc gggcaaacag tcgttgctga ttggcgttgc cacctccagt ctggccctgc
     3541 acgcgccgtc gcaaattgtc gcggcgatta aatctcgcgc cgatcaactg ggtgccagcg
     3601 tggtggtgtc gatggtagaa cgaagcggcg tcgaagcctg taaagcggcg gtgcacaatc
     3661 ttctcgcgca acgcgtcagt gggctgatca ttaactatcc gctggatgac caggatgcca
     3721 ttgctgtgga agctgcctgc actaatgttc cggcgttatt tcttgatgtc tctgaccaga
     3781 cacccatcaa cagtattatt ttctcccatg aagacggtac gcgactgggc gtggagcatc
     3841 tggtcgcatt gggtcaccag caaatcgcgc tgttagcggg cccattaagt tctgtctcgg
     3901 cgcgtctgcg tctggctggc tggcataaat atctcactcg caatcaaatt cagccgatag
     3961 cggaacggga aggcgactgg agtgccatgt ccggttttca acaaaccatg caaatgctga
     4021 atgagggcat cgttcccact gcgatgctgg ttgccaacga tcagatggcg ctgggcgcaa
     4081 tgcgcgccat taccgagtcc gggctgcgcg ttggtgcgga tatctcggta gtgggatacg
     4141 acgataccga agacagctca tgttatatcc cgccgttaac caccatcaaa caggattttc
     4201 gcctgctggg gcaaaccagc gtggaccgct tgctgcaact ctctcagggc caggcggtga
     4261 agggcaatca gctgttgccc gtctcactgg tgaaaagaaa aaccaccctg gcgcccaata
     4321 cgcaaaccgc ctctccccgc gcgttggccg attcattaat gcagctggca cgacaggttt
     4381 cccgactgga aagcgggcag tgagcgcaac gcaattaatg tgagttagct cactcattag
     4441 gcaccccagg ctttacactt tatgcttccg gctcgtatgt tgtgtggaat tgtgagcgga
     4501 taacaatttc acacaggaaa cagctatgac catgattacg gattcactgg ccgtcgtttt
     4561 acaacgtcgt gactgggaaa accctggcgt tacccaactt aatcgccttg cagcacatcc
     4621 ccctttcgcc agctggcgta atagcgaaga ggcccgcacc gatcgccctt cccaacagtt
     4681 gcgcagcctg aatggcgaat ggcgctttgc ctggtttccg gcaccagaag cggtgccgga
     4741 aagctggctg gagtgcgatc ttcctgaggc cgatactgtc gtcgtcccct caaactggca
     4801 gatgcacggt tacgatgcgc ccatctacac caacgtaacc tatcccatta cggtcaatcc
     4861 gccgtttgtt cccacggaga atccgacggg ttgttactcg ctcacattta atgttgatga
     4921 aagctggcta caggaaggcc agacgcgaat tatttttgat ggcgttggaa tt
//

质粒菌株产品操作说明书
一、扩增流程
         收到产品后，请先根据产品管壁标签来判断产品形式，并在扩增前准确查找该质粒菌株的抗性、感受态和培养温度。
         1、质粒干粉（常温运输，存于-20度，90天保质期，请务必转化挑单克隆培养，不要直接使用和测序）
              ①收到质粒干粉后请先5000rpm离心1min，再加入20μl ddH2O去离子水溶解质粒；
              ②取1支100μl 感受态于冰上解冻10min，加入2μl质粒，再冰浴30min后，42℃热激60s，不要搅动，再冰浴2min；（从第二步开始均要在超净工作台中无菌操作）
              ③加入900μl无抗的LB液体培养基，180rpm震荡37℃培养45min；
              ④6000rpm离心5min，仅留100μl上清液重悬细菌沉淀，并涂布至目标质粒抗性的LB平板上；（可使用本平台的平板涂布专用玻璃珠进行涂布，可以比传统涂布方法获得更多转化子）
              ⑤将平板正向培养1h，再倒置37℃培养14h。如果要求是30度则培养20h；
（菌落过多则将质粒稀释后再转化。没有菌落则加入10μl质粒转化。另不要直接转表达感受态，要先转克隆感受态，重提质粒后再导入表达感受态）
              ⑥挑取单菌落至LB液体培养基中，加入对应抗生素，220rpm震荡培养14h，根据实验需要和质粒提取试剂盒说明书提取质粒。
        2、甘油菌种（冰袋运输，存于-80℃，保质期90天，请务必划线挑单克隆培养）
              四区划线后挑单菌落培养，酵母菌需要先液体复苏再四区划线，再挑单菌落液体培养。
        3、穿刺菌种（冰袋运输，存于4℃，保质期7天）
              穿刺接种，液体培养后四区划线，再挑单菌落液体培养。
        4、菌落平板（冰袋运输，存于4℃，保质期7天）
              直接挑取单菌落至液体培养基中。
        5、液体质粒（冰袋运输，存于-20℃，保质期90天）
              单独提取的液体质粒收到后可直接使用。
        6、滤纸质粒（常温运输，存于-20度，90天保质期，请务必转化挑单克隆培养，不要直接使用和测序）
              收到货后将滤纸画圈部分剪下放入EP管中，加100ul无菌水将滤纸浸湿并浸泡5min，吸取5ul质粒转化，离心全涂。
