伯乐Bio-Rad1651821 Inner Glass P

伯乐Bio-Rad公司的产品主要分布在生命科学和临床诊断两大领域。主要产品包括：各类电泳产品、定量及定性PCR产品、基因突变分析产品、凝胶成像系统、蛋白质组学研究系统、蛋白纯化平台及各类相关试剂耗材。凭着日益壮大的研究和开发力量，经验丰富的员工队伍，Bio-Rad公司在该领域中，处于技术创新和不断突破的地位。
我们北京诺博莱德科技有限公司作为伯乐Bio-rad公司的经销商为客户提供，正规进口，保证原装正品，货期稳定，折扣好的服务标准。

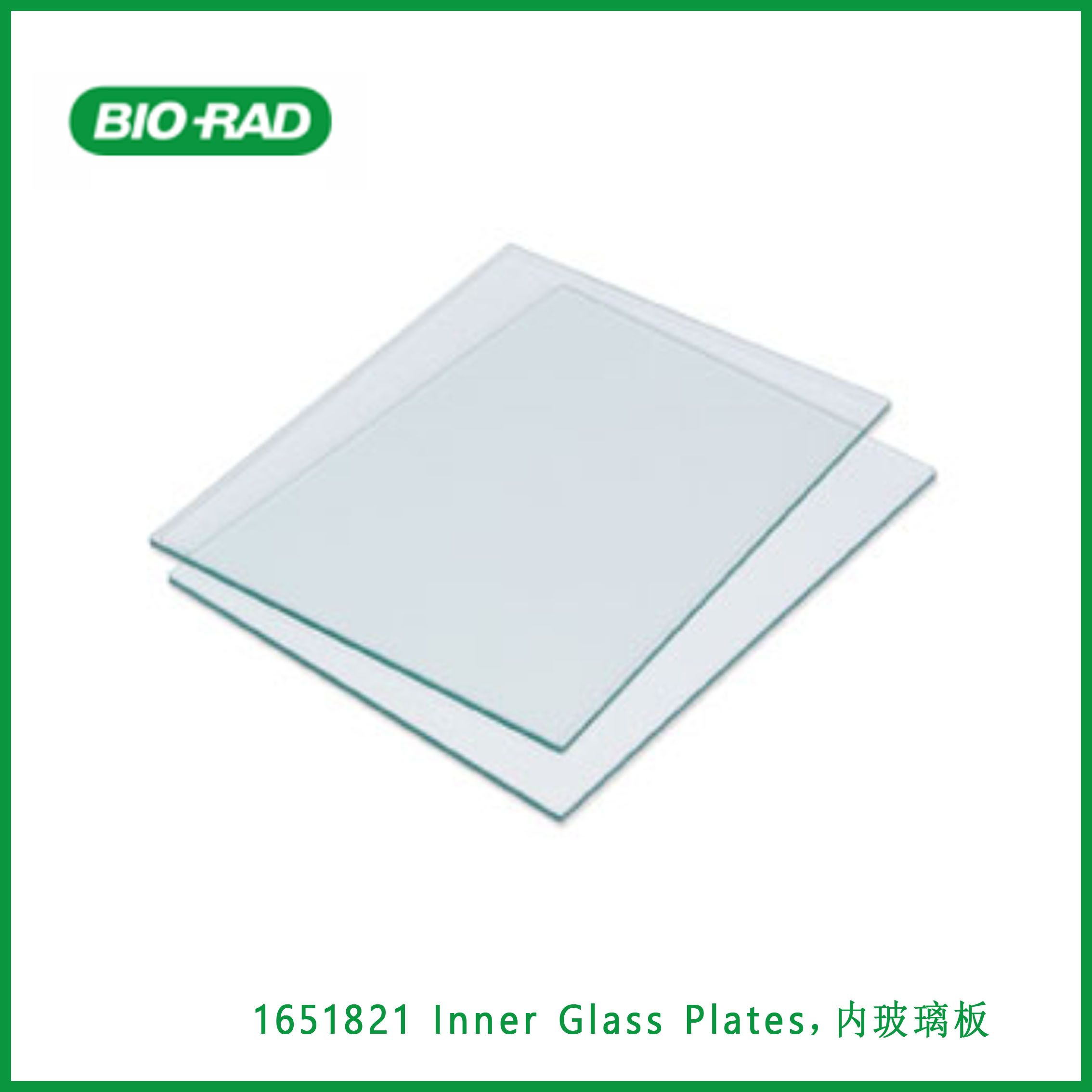

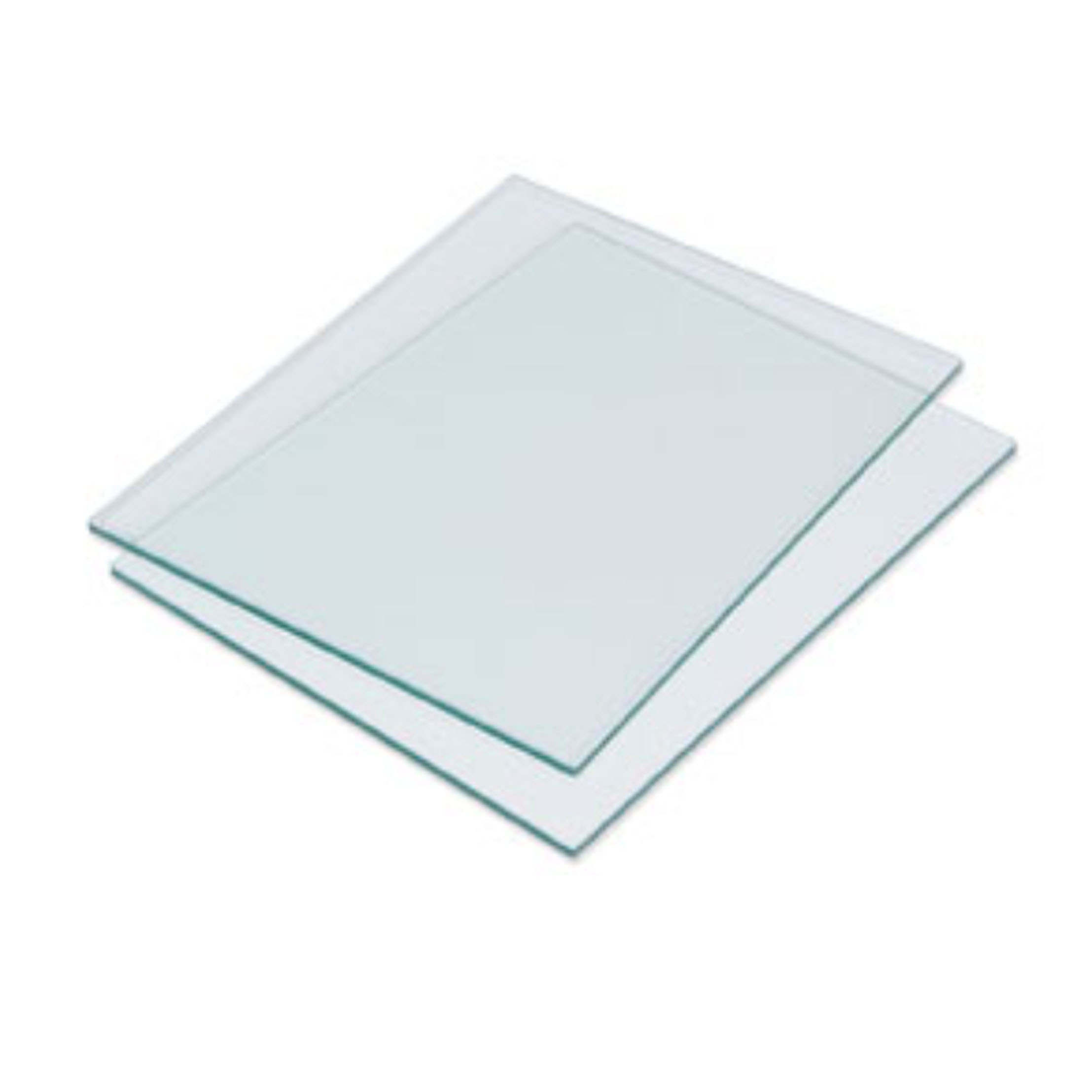

伯乐Bio-Rad1651821 Inner Glass Plates，内玻璃板，产品简介：
产品品牌：伯乐Bio-Rad
产品名称：内玻璃板
英文名称：Inner Glass Plates
产品货号：1651821
产品规格：2块
伯乐Bio-Rad1651821 Inner Glass Plates，内玻璃板，产品说明：
Pkg of 2, 16 x 20 cm, glass plates for 16 cm PROTEAN II xi electrophoresis cell only, use with outer plate (#165-1822)
pKG为2, 16×20厘米，玻璃板为16厘米的蛋白聚糖II席电泳细胞，只与外板一起使用（16-1822）
PROTEAN® Ⅱxi和XL多板电泳槽
PROTEANIxi和XL多板电泳槽能同时进行6块凝胶的电泳。多板电泳槽提供2个涂有绝缘材料的铝制冷却管和3个冷却芯，为高功率电泳提供所需的高效冷却。实现快速有效的分离，蛋白扩 散更少，条带和斑点更清晰。
PROTEAN® Ⅱxi和XL电泳槽配件
PTOREANIIxi和XL系统配件和替换部件包括各种类型的玻板( glass plates )，封边垫条( Spacers )和加样梳( combs ) 等。各部件可以分开购买定制出满足不同需求的系统。各个替换部件能保证系统的启动和正常运行。
PROTEAN® Ⅱxi和XL电泳槽电泳梳每孔最大上祥体积*

加样梳厚度
孔数或孔类型	孔宽度	0.5 mm	0.75 mm	1.0 mm	1.5 mm	3.0mm
25	3.5 mm	-	60μl	80 ul	120 μl	-
20	5.0 mm	54 ul	82ul	110 ul	164 ul	328ul
15	6.5 mm	74 ul	110ul	147 ul	221ul	442μl
10	1.0 cm	114 ul	172ul	229ul	343山	687μ
5	2.3 cm	-	-	522ul	783 ul	1.57 ml
3	4.0 cm	-	-	-	1.37 ml	-
无孔	14.5 cm	-	2.44ml	3.26ml	4.88 ml	9.76ml
2-D梳子 参考孔 样品孔	3.5 mm 17.8-17.9 cm	- -		28 ul -	42 ul -	84ul -

产品订购信息：
PROTEAN 11 xi Accessories for Running Gels
伯乐Bio-Rad 1651901 PROTEAN II xi Sandwich Clamps, 16 cm set (1 left, 1 right)
伯乐Bio-Rad 1651902 PROTEAN II xi Sandwich Clamps, 20 cmset(1 left, 1 right)
伯乐Bio-Rad1651913PROTEAN I xi Replacement Gaskets, for central cooling core, 2
PROTEAN 11 XL Accessories for Running Gels
伯乐Bio-Rad 1651835 PROTEAN II XL Sandwich Clamps, IPG set (1 left, 1 right)
伯乐Bio-Rad 1653182 PROTEAN II XL Replacement Gaskets, for central cooling core, 2
PROTEANⅡxi and XL Accessories for Running Gels
伯乐Bio-Rad 1651806 Central Cooling Core, includes 2 gaskets
伯乐Bio-Rad 1651807 Buffer Tank
伯乐Bio-Rad 1651808 Cell Lid, with power cables
伯乐Bio-Rad 1651909 Upper Buffer Dam
伯乐Bio-Rad 1005430 PROTEAN II Latch Assembly Kit, for central cooling core
伯乐Bio-Rad 900-7680-18 Replacement Platinum Wire, cathode, 18
伯乐Bio-Rad 900-7680-24 Replacement Platinum Wire, cathode, 24
PROTEAN II xi and XL Casting Apparatus
伯乐Bio-Rad 1651911 Slab Gel Casting Stand, with gaskets
伯乐Bio-Rad 1651912 Replacement Gaskets, for casting stand, 2
PROTEAN I xi Glass Plates*
伯乐Bio-Rad 1651821 Inner Plates, for 16 x 16 cm gels, 16 x 20 cm, 2, for PROTEAN II xi cell only
伯乐Bio-Rad 1651822 Outer Plates, for 16x 16 cm gels, 18.3 x 20 cm, 2, for PROTEAN II xi cell only
PROTEAN II xi Specialty Glass Plates
伯乐Bio-Rad 1651825*” Frosted Inner Plates, for agarose gels, 16 x 20 cm, 2, for PROTEAN II xi cell only
伯乐Bio-Rad 1651826** Frosted Inner Plates, for agarose gels, 20 x 20 cm, 2, for PROTEAN II xi cell only
伯乐Bio-Rad 1651832 Notched Inner Plate, for double up procedures, 16 x 16 cm gel,
伯乐Bio-Rad 1651833 Notched Inner Plate, for double-up procedures, 16 x 20 cm gel, 16 cm bevel length, for PROTEAN Ixi cell only
PROTEAN " xi and XL Glass Plates, for 16 x 20 or 18.3 x 20 cm gels'
伯乐Bio-Rad 1651823 Inner Plates, 20x 20cm, 2
伯乐Bio-Rad 1651824 Outer Plates, 22.3x20cm. 2
PROTEAN IXL Spacers, IPG Strip Format (Set of 4)
伯乐Bio-Rad1651836 20 cm Spacers. 1.0 mm
伯乐Bio-Rad 1653181 20 cm Spacers.1.5 mm
伯乐Bio-Rad 1651837 20 cm Spacers.2.0 mm

产品图片
