Ultra-low,High-Capcaity Mobile Temperature Satbility System 超低温生物样本移动工作站

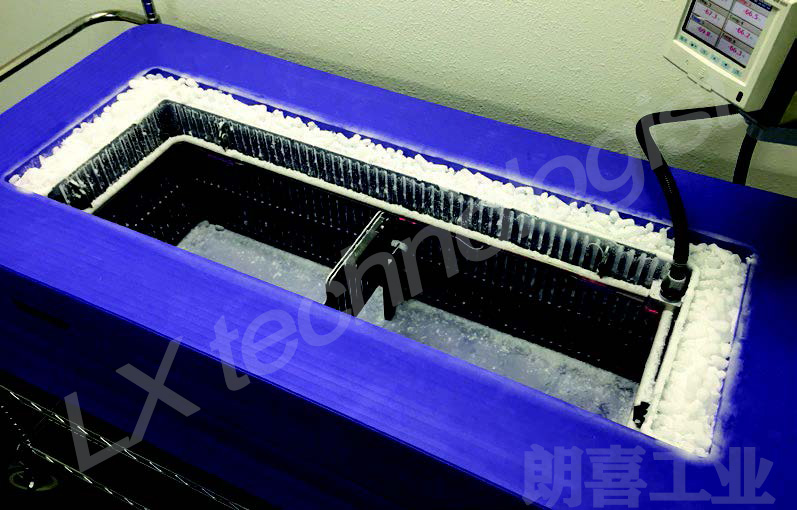

BioTTMULT Workstation is a breakthrough solution for handling and transporting valuable temperature-sensitive biomaterials,or freezing samples at collection site. BioTTMULT低温生物样本移动工作站是一项突破性科技用于处理和转运多样化的生物样本材料,或者在采集阶段的冻存生物样本。 The dry ice-based BioTTMULT Workstation provides a secure ultra-low temperature (ULT) -75° to -50°C work area for processing or transporting critical frozen samples. The patent-pending DIRTM cooling insert technology ensures that samples are completely immersed in temperatures below -50°C during the operating period. Requiring minimal dry ice, the chamber equilibrates to -50°C within 30 minutes and continues to cool for over 15 hours with the lid open with a single charge of dry ice. 采用干冰作为冷源的低温生物样本移动工作站为生物样本在低温冻存状态下提供了安全的低温环境-75℃~50℃的环境温度,专利设计DIRTM冷冻插件技术确保在转运操作期间内内部生物样品环境温度低于-50℃,干冰需求量少,操作时间仅需30分钟,即可持续控温低于-50℃长达15小时!
Maintains<-75℃ to -50℃ for 15 hours 维持 -75℃到-50℃低温条件长达15小时! ULT handling and transport for variety of applications ULT 低温移动工作站可用于多种应用。
1) Cherry-picking, sorting or other short term handling of critical samples outside at -80℃ freezer
对于在-80℃冰箱中存储的生物样品进行取样、分类或者短时间处理
2) Controlled-temperature transfer of frozen samples within and between facilities
车间内部功能区房间之间的生物样本转移
3) Transfer of temperature-sensitive materials to long-term storage tanks or automated biobank facilities
转移一些温度敏感样本材料至长周期存储的低温容器或者生物样本库设施中
4) Preparing,labeling or packaging of frozen samples for shipment
准备、贴标 或者包装低温生物样本 Performance Data 参数表现
BioTTM ULT Workastation:10.0 inches below -50℃
BioTTM ULT生物样本低温移动工作站可保持10英寸空间低于-50℃低温条件 BioTTM ULT Workstation equilibrates to <-50℃ in less than 30 minutes and entire chamber maintains temperature stability for over 15 hours. Temperature measured at 0 inches(blue), 4 inches(red) 7 inches (green), 10 inches (lavender).
