pCAMBIA1381
Search name
pCAMBIA1381,Plasmid pCAMBIA1381,pCAMBIA1381 vector
pCAMBIA1381 Information
Promoter: CaMV 35S
Replicator: pVS1 oriV, ori
Terminator: NOS
Plasmid classification: plant series, protein overexpression vector
Plasmid size: 10657bp
Prokaryotic resistance: Kan
Screening markers: HygR
Cloned strain: DH5 alpha
Culture conditions: 37 centigrade, aerobic LB
Expression host: plant cells
5'sequencing primers: 35S:GACGCACAATCCCACTATCC
3'sequencing primers: primers designed according to sequence
pCAMBIA1381 Description

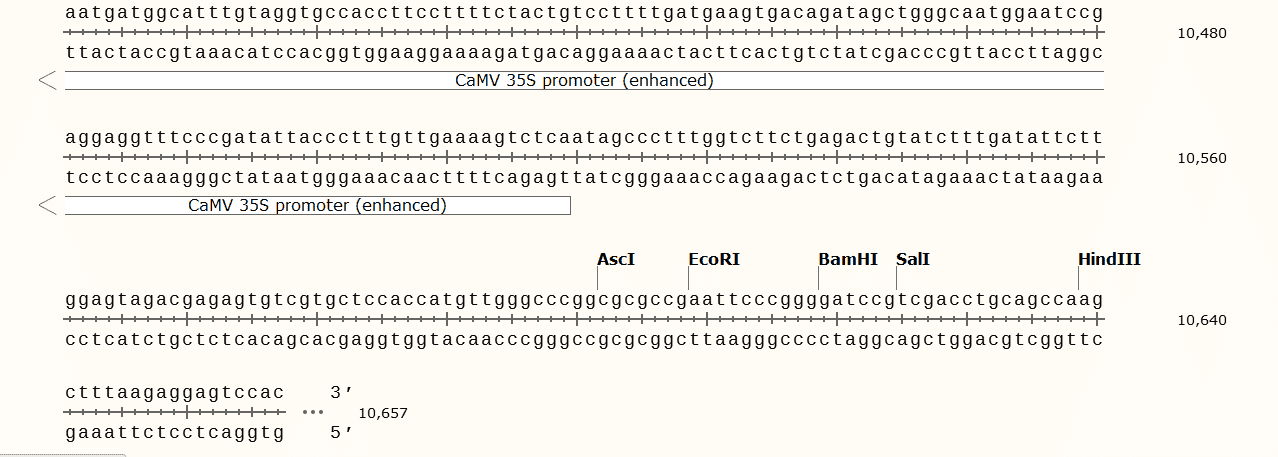

pCAMBIA1381 Sequence
LOCUS Exported 10657 bp ds-DNA circular SYN 14-SEP-2016
DEFINITION synthetic circular DNA
ACCESSION .
VERSION .
KEYWORDS Untitled 5
SOURCE synthetic DNA construct
ORGANISM synthetic DNA construct
REFERENCE 1 (bases 1 to 10657)
AUTHORS .
TITLE Direct Submission
JOURNAL Exported Wednesday, September 14, 2016 from SnapGene Viewer 3.2.1
FEATURES Location/Qualifiers
source 1..10657
/organism="synthetic DNA construct"
/mol_type="other DNA"
CDS 20..1825
/codon_start=1
/gene="uidA (or gusA) from E. coli"
/product="beta-glucuronidase"
/note="GUS"
/translation="LRPVETPTREIKKLDGLWAFSLDRENCGIDQRWWESALQESRAIA
VPGSFNDQFADADIRNYAGNVWYQREVFIPKGWAGQRIVLRFDAVTHYGKVWVNNQEVM
EHQGGYTPFEADVTPYVIAGKSVRITVCVNNELNWQTIPPGMVITDENGKKKQSYFHDF
FNYAGIHRSVMLYTTPNTWVDDITVVTHVAQDCNHASVDWQVVANGDVSVELRDADQQV
VATGQGTSGTLQVVNPHLWQPGEGYLYELCVTAKSQTECDIYPLRVGIRSVAVKGQQFL
INHKPFYFTGFGRHEDADLRGKGFDNVLMVHDHALMDWIGANSYRTSHYPYAEEMLDWA
DEHGIVVIDETAAVGFQLSLGIGFEAGNKPKELYSEEAVNGETQQAHLQAIKELIARDK
NHPSVVMWSIANEPDTRPQGAREYFAPLAEATRKLDPTRPITCVNVMFCDAHTDTISDL
FDVLCLNRYYGWYVQSGDLETAEKVLEKELLAWQEKLHQPIIITEYGVDTLAGLHSMYT
DMWSEEYQCAWLDMYHRVFDRVSAVVGEQVWNFADFATSQGILRVGGNKKGIFTRDRKP
KSAAFLLQKRWTGMNFGEKPQQGGKQ"
CDS 1832..1849
/codon_start=1
/product="6xHis affinity tag"
/note="6xHis"
/translation="HHHHHH"
terminator 1881..2133
/note="NOS terminator"
/note="nopaline synthase terminator and poly(A) signal"
misc_feature 2155..2179
/note="RB T-DNA repeat"
/note="right border repeat from nopaline C58 T-DNA"
CDS 3479..4108
/codon_start=1
/product="stability protein from the Pseudomonas plasmid
pVS1 (Heeb et al., 2000)"
/note="pVS1 StaA"
/translation="MKVIAVLNQKGGSGKTTIATHLARALQLAGADVLLVDSDPQGSAR
DWAAVREDQPLTVVGIDRPTIDRDVKAIGRRDFVVIDGAPQAADLAVSAIKAADFVLIP
VQPSPYDIWATADLVELVKQRIEVTDGRLQAAFVVSRAIKGTRIGGEVAEALAGYELPI
LESRITQRVSYPGTAAAGTTVLESEPEGDAAREVQALAAEIKSKLI"
CDS 4542..5609
/codon_start=1
/product="replication protein from the Pseudomonas plasmid
pVS1 (Heeb et al., 2000)"
/note="pVS1 RepA"
/translation="GRKPSGPVQIGAALGDDLVEKLKAAQAAQRQRIEAEARPGESWQA
AADRIRKESRQPPAAGAPSIRKPPKGDEQPDFFVPMLYDVGTRDSRSIMDVAVFRLSKR
DRRAGEVIRYELPDGHVEVSAGPAGMASVWDYDLVLMAVSHLTESMNRYREGKGDKPGR
VFRPHVADVLKFCRRADGGKQKDDLVETCIRLNTTHVAMQRTKKAKNGRLVTVSEGEAL
ISRYKIVKSETGRPEYIEIELADWMYREITEGKNPDVLTVHPDYFLIDPGIGRFLYRLA
RRAAGKAEARWLFKTIYERSGSAGEFKKFCFTVRKLIGSNDLPEYDLKEEAGQAGPILV
MRYRNLIEGEASAGS"
rep_origin 5675..5869
/note="pVS1 oriV"
/note="origin of replication for the Pseudomonas plasmid
pVS1 (Heeb et al., 2000)"
misc_feature 6213..6353
/note="bom"
/note="basis of mobility region from pBR322"
rep_origin complement(6539..7127)
/direction=LEFT
/note="ori"
/note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
replication"
CDS complement(7214..8008)
/codon_start=1
/gene="aphA-3"
/product="aminoglycoside phosphotransferase"
/note="KanR"
/note="confers resistance to kanamycin"
/translation="MAKMRISPELKKLIEKYRCVKDTEGMSPAKVYKLVGENENLYLKM
TDSRYKGTTYDVEREKDMMLWLEGKLPVPKVLHFERHDGWSNLLMSEADGVLCSEEYED
EQSPEKIIELYAECIRLFHSIDISDCPYTNSLDSRLAELDYLLNNDLADVDCENWEEDT
PFKDPRELYDFLKTEKPEEELVFSHGDLGDSNIFVKDGKVSGFIDLGRSGRADKWYDIA
FCVRSIREDIGEEQYVELFFDLLGIKPDWEKIKYYILLDELF"
misc_feature 8433..8457
/note="LB T-DNA repeat"
/note="left border repeat from nopaline C58 T-DNA"
polyA_signal 8535..8709
/note="CaMV poly(A) signal"
/note="cauliflower mosaic virus polyadenylation signal"
CDS complement(8749..9774)
/codon_start=1
/gene="aph(4)-Ia"
/product="aminoglycoside phosphotransferase from E. coli"
/note="HygR"
/note="confers resistance to hygromycin"
/translation="MKKPELTATSVEKFLIEKFDSVSDLMQLSEGEESRAFSFDVGGRG
YVLRVNSCADGFYKDRYVYRHFASAALPIPEVLDIGEFSESLTYCISRRAQGVTLQDLP
