- ￥1700
- BIO-RAD
- 美国
- HSP9601
- 2025年07月15日
企业认证
相关产品推荐更多 >
万千商家帮你免费找货
0 人在求购买到急需产品
- 详细信息
- 文献和实验
- 技术资料
- 库存：
大量现货
- 供应商：
广州威佳科技有限公司
- 现货状态：
现货
- 保修期：
请咨询
- 规格：
50个/箱
概述
Pkg of 50, white shell/clear well PCR plate, rigid 2-component design
描述
Use these Hard-Shell Plates for reliable performance in all PCR and real-time PCR applications. The patented two-component design is specifically engineered to withstand the stresses of thermal cycling.Additional benefits include:
- Superior stability and flatness allow precise positioning and robotic handling
- Sturdy plate design is ideal for heat sealing methods
- Warp-resistant feature provides durability during automation, high-speed centrifugation, and storage (even at –80°C)
- User-readable bar code options for convenient sample tracking in high-throughput settings
- Black alphanumeric labeling for easy well identification
- Footprint and well spacing designed to match ANSI/SBS standard dimensions
- Composition helps prevent DNA binding
- Polypropylene resin allows superior well-to-well uniformity for reliable and reproducible real-time qPCR results
- Certified to be free of DNase, RNase, and human genomic DNA
- Maximum volume is up to 200 µl
Packaging Options
| Package Size | Catalog Number |
| 50 | HSP9601 |
| 400 (8 x 50) | HSP9601B |
Available Formats
Color-coded shell options with clear wells — available in red (HSP-9611), yellow (HSP-9621), blue (HSP-9631), green (HSP-9641), and black (HSP-9661) shellsPlate Dimensions

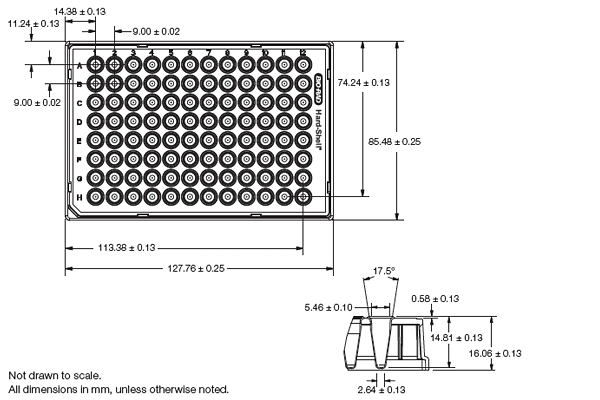

| Microplate Dimensions | Hard-Shell® Low-Profile 96-Well Skirted PCR Plates (HSP-9xxx) |
| Length at base plane | 127.76 mm |
| Width at base plane | 85.48 mm |
| Height overall | 16.06 mm |
| Well depth | 14.81 mm |
| Well diameter at opening | 5.46 mm |
| Well diameter at bottom of conical section | 2.64 mm |
| Well volume | 200 μl |
| Well spacing | 9.00 mm |
| Well angle | 17.5° |
| Well offset | |
| Left edge to well A1 | 14.38 mm |
| Top edge to well A1 | 11.24 mm |
| Left edge to H12 | 113.38 mm |
| Top edge to H12 | 74.24 mm |
Additional Plate Formats Available
- White-well option for increased fluorescent signal strength — available in white (HSP-9655), black (HSP-9665), blue (HSP-9635), and green (HSP-9645) shells
- Low-cost, user-readable bar code option for convenient database tracking — available with clear (HSP-9901) or white (HSP-9955) wells
- Black shell/black well option (HSP-9666)
More Information
In addition to Hard-Shell® low-profile thin-wall 96-well skirted PCR plates, Bio-Rad offers a range of 96-well plates and other plastic consumables to suit your PCR needs.技术指标
孔/管格式
96-well
孔/管尺寸
Low
缘格式
Full-skirted
Barcoded PCR plate
No
Compatible instruments, Bio-Rad
CFX96™, 1000-series, DNA Engine Opticon® series, Chromo4™, PTC-100®, DNA Engine® series
Compatible instruments, Eppendorf
Mastercycler series
Well/tube color
Clear
