Von Frey Hair纤毛机械刺激针用来测量动物的触觉阈疼痛阈机械痛阈测量仪，主要用于评估皮肤的触觉，是非常受欢迎的非侵入式实验器材。Von Frey Hairs尼龙丝的粗细及伸出长度决定提供刺激力的大小。实验时，根据实际情况选定粗细当得的 Von Frey Hairs纤毛机械刺激针，调节适当Von Frey Hair纤毛机械刺激针的伸出长度，垂直地刺激皮肤，可通过调节伸长、更换Von Frey Hair 纤毛机械刺激针 调整刺激力大小，直到 Von Frey Hair 纤毛机械刺激针弯曲。多次测试之后套入公示，测量得到机械痛阈值。
Von Frey纤维丝在小动物触觉阈值测试中的应用：
Von Frey纤毛机械刺激针可提供0.008g-300g的触觉刺激力。（进行von Frey test使用方便，可对多种动物进行定量的机械痛阈或触觉阈测量，敬请来电咨询）
Von Frey Hairs纤毛机械刺激针尼龙丝的粗细及伸出长度决定提供触觉von Frey test刺激力的大小。实验时，根据实际情况选定粗细当得的触觉测试Von Frey Hairs纤毛机械刺激针，调节适当的伸出长度，垂直地刺激皮肤，可通过调节伸长、更换触觉尼龙丝调整刺激力大小，直到触觉测量尼龙丝弯曲。当啮齿类动物得爪受到一个机械痛阈或触觉阈，它们会缩回反射。该触觉测试可应用于大、小鼠的足底机械痛阈或触觉阈测量。
另外: Von Frey Hairs纤毛机械刺激针使用时可选配凿孔工作台，其触觉测量网筛孔是利用激光切冲而成的方形孔，尺寸为5×5mm2 ，触觉测量孔间距约为1mm，这对受试动物而言是一个舒适的环境，也便于操作人员观察动物的足底触觉感应区域。该凿孔台经涂层处理，便于清洁且不易被腐蚀。
可配合测试支架和大小鼠测试笼，对动物足底进行测试：
小鼠与测试平台
小鼠与测试平台
十字测试网格
加高型测试支架
标准型测试支架与电子式测痛仪
根据需求，可以配合45°倾角的镜子使用，让观察更加方便；
也可对人体或动物的其他部位的触觉反应，进行测试：
测痛实验大鼠固定器
可用于大鼠的面部、背部、腹部的刺痛实验；
可根据老鼠的体重订做合适的尺寸；
Von Frey纤维丝在人体手部、足部触觉测试中的应用：

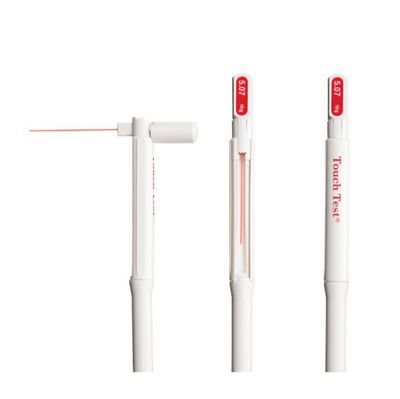

Von Frey纤毛机械刺激针也可叫做Touch-Test单丝测试盒、Semmes-Weinstein触觉测量尼龙丝，能测试和评估感觉水平，每个Touch-Test™单丝测试笔被单独校准，力量值在5%的标准偏差范围内，以此可测试感觉水平。
利用Touch-Test™单丝感觉测试套装来测试感觉水平，获取客观数据，可以准确报告正在减少或回复的感觉状态；
测试根据预先设定的力的5%的标准偏差进行的；
当达到峰值力阈值时，单丝测试笔的单丝呈弯曲形状；
独特的手柄设计使Touch-Test™单丝测试笔可以轻松地打开90°角进行测试；关闭时，测试笔可以被安全地放在口袋或手提箱中，以确保可以在不使用时保护单丝；
单丝测试笔手柄上的手指凹痕提供了牢固且舒适的握持手感；
单丝测试笔手柄上都标有相应的颜色编码的压力水平；
测试结果可以记录在另行出售的手部或脚部筛查表格（NC12750-1和NC12749）上；
有5件套手部套件装，6件套足部套件装和20件套全套套件装可供选择；
每种规格的套件都有保护套，带使用说明。；
用于替换的5.07（10g）的单丝测试笔可单独出售，5.07（10g）表明足部的保护性感觉丧失；
不同颜色代码代表不同的压力级别，规格及所代表的的力量分别为：
1.65（0.008克）、2.36（0.02克）、2.44（0.04克）、2.83（0.07克）、3.22（0.16克）、3.61（0.4克）、3.84（0.6克）、4.08（1.0克）、4.17（1.4克）、4.31（2.0克）、4.56（4.0克）、4.74（6.0克）、4.93（8.0克）、5.07（10.0克）、5.18（15.0克）、5.46（26.0克）、5.88（60.0克）、6.10（100.0克）、6.45（180.0克）、6.65（300.0克）。
正常为1.65~2.83（Normal)
轻触觉减退为3.22~3.61（Diminished Light Touch)
保护性感觉减退为3.84~4.31（Diminished Protective Sensation)
保护性感觉丧失为4.56~6.45（Diminished Protective Sensation）
6.65用于深层感觉检测（Deep Pressure Sensation Only）
有手部感觉测试型、足部感觉测试型和全规格测试型可供选择：
手部套件包含：2.83, 3.61, 4.31, 4.56 ,6.65 五种单丝测试；
足部套件包含：2.83, 3.61, 4.31, 4.56, 5.07 , 6.65六种单丝测试；
全规格套件包含：所有二十种单丝测试---推荐配置
产品型号如下，敬请来电订购：
NC12772 Touch-Test 单丝测试套件, 手部
NC12773 Touch-Test 单丝测试套件, 足部
NC12775-99 Touch-Test 单丝测试套件, 全套20件---推荐
电子式测痛仪应用于人体研究时候，可实时读取0-800g的具体数据：
型号：38450
敬请来电咨询。
