pMal-c5X大肠表达质粒

基本信息
名称：pMal-c5X大肠表达质粒
别称: pMalc5X

启动子:	Tac
复制子:	pBR322
终止子:	rrnB T1 terminator
质粒分类:	大肠杆菌载体；pMal系列表达质粒
质粒大小:	5677bp
原核抗性:	Amp
克隆菌株:	DH5a
培养条件:	37度
表达宿主:	大肠杆菌BL21(DE3)
培养条件:	37℃，有氧，LB
诱导方式:	IPTG或乳糖及其类似物

质粒属性

载体宿主：	大肠杆菌
载体用途：	蛋白表达
基因种属：	空载体
基因类型：	ORF
原核抗性：	Amp
真核抗性：
荧光蛋白：

质粒简介
  The vector pMAL-c5X is designed to produce maltose-binding protein (MBP) fusions, where the protein of interest can be cleaved from MBP with the specific protease Factor Xa . MBP fusions made with this vector are expressed cytoplasmically. The MBP has been engineered for tighter binding to amylose resin. A gene or open reading frame is inserted into a restriction site of the vector polylinker, in the same translational reading frame as the malE gene (encoding maltose-binding protein). The fusion protein thus produced can be purified by amylose affinity chromatography. The sequence coding for the four amino acids Ile-Glu-Gly-Arg is present just upstream of the XmnI site. This allows the protein of interest to be cleaved from maltose-binding protein with the specific protease Factor Xa. Fragments inserted in the XmnI site (cleaves GAAGG↓ATTTC) will produce a fusion protein that, after Factor Xa cleavage, contains no vector-derived residues on the protein of interest.

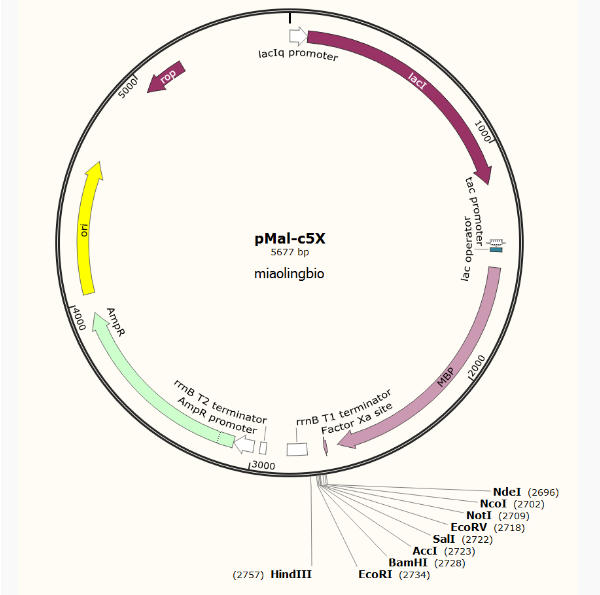

质粒图谱

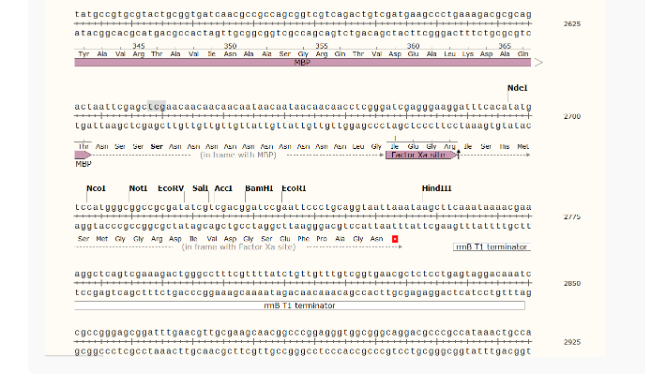

质粒序列
LOCUS       Exported                5677 bp ds-DNA     circular SYN 17-08-2015
DEFINITION  synthetic circular DNA
KEYWORDS    pMal-c5X
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 5677)
  TITLE     Direct Submission
            http://www.miaolingbio.com
FEATURES             Location/Qualifiers
     source          1..5677
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     promoter        3..80
                     /gene="lacI (mutant)"
                     /note="lacIq promoter"
                     /note="In the lacIq allele, a single base change in the
                     promoter boosts expression of the lacI gene about 10-fold."
     CDS             81..1163
                     /codon_start=1
                     /gene="lacI"
                     /product="lac repressor"
                     /note="lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
                     /translation="MKPVTLYDVAEYAGVSYQTVSRVVNQASHVSAKTREKVEAAMAEL
                     NYIPNRVAQQLAGKQSLLIGVATSSLALHAPSQIVAAIKSRADQLGASVVVSMVERSGV
                     EACKAAVHNLLAQRVSGLIINYPLDDQDAIAVEAACTNVPALFLDVSDQTPINSIIFSH
                     EDGTRLGVEHLVALGHQQIALLAGPLSSVSARLRLAGWHKYLTRNQIQPIAEREGDWSA
                     MSGFQQTMQMLNEGIVPTAMLVANDQMALGAMRAITESGLRVGADISVVGYDDTEDSSC
                     YIPPLTTIKQDFRLLGQTSVDRLLQLSQGQAVKGNQLLPVSLVKRKTTLAPNTQTASPR
                     ALADSLMQLARQVSRLESGQ"
     misc_feature    1406..1434
                     /note="tac promoter"
                     /note="strong E. coli promoter; hybrid between the trp and
                     lac UV5 promoters"
     protein_bind    1442..1458
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="lac operator"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     CDS             1528..2628
                     /codon_start=1
                     /gene="malE (mutated)"
                     /product="maltose binding protein from E. coli"
                     /note="MBP"
                     /note="This version of the gene does not encode a signal
                     sequence, so MBP will remain in the cytosol."
                     /translation="MKIEEGKLVIWINGDKGYNGLAEVGKKFEKDTGIKVTVEHPDKLE
                     EKFPQVAATGDGPDIIFWAHDRFGGYAQSGLLAEITPDKAFQDKLYPFTWDAVRYNGKL
                     IAYPIAVEALSLIYNKDLLPNPPKTWEEIPALDKELKAKGKSALMFNLQEPYFTWPLIA
                     ADGGYAFKYENGKYDIKDVGVDNAGAKAGLTFLVDLIKNKHMNADTDYSIAEAAFNKGE
                     TAMTINGPWAWSNIDTSKVNYGVTVLPTFKGQPSKPFVGVLSAGINAASPNKELAKEFL
                     ENYLLTDEGLEAVNKDKPLGAVALKSYEEELVKDPRIAATMENAQKGEIMPNIPQMSAF
                     WYAVRTAVINAASGRQTVDEALKDAQT"
     CDS             2677..2688
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /note="Factor Xa site"
                     /translation="IEGR"
     terminator      2763..2849
                     /gene="Escherichia coli rrnB"
                     /note="rrnB T1 terminator"
                     /note="transcription terminator T1 from the E. coli rrnB
                     gene"
     terminator      2941..2968
                     /note="rrnB T2 terminator"
                     /note="transcription terminator T2 from the E. coli rrnB
                     gene"
     promoter        2996..3086
                     /gene="bla"
                     /note="AmpR promoter"
     CDS             3087..3947
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /note="AmpR"
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRVDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     rep_origin      4035..4623
                     /direction=RIGHT
                     /note="ori"
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(4993..5184)
                     /codon_start=1
                     /gene="rop"
                     /product="Rop protein, which maintains plasmids at low copy
                     number"
                     /note="rop"
                     /translation="MTKQEKTALNMARFIRSQTLTLLEKLNELDADEQADICESLHDHA
                     DELYRSCLARFGDDGENL"
ORIGIN
        1 ccgacaccat cgaatggtgc aaaacctttc gcggtatggc atgatagcgc ccggaagaga
       61 gtcaattcag ggtggtgaat gtgaaaccag taacgttata cgatgtcgca gagtatgccg
      121 gtgtctctta tcagaccgtt tcccgcgtgg tgaaccaggc cagccacgtt tctgcgaaaa
      181 cgcgggaaaa agtggaagcg gcgatggcgg agctgaatta cattcccaac cgcgtggcac
      241 aacaactggc gggcaaacag tcgttgctga ttggcgttgc cacctccagt ctggccctgc
      301 acgcgccgtc gcaaattgtc gcggcgatta aatctcgcgc cgatcaactg ggtgccagcg
      361 tggtggtgtc gatggtagaa cgaagcggcg tcgaagcctg taaagcggcg gtgcacaatc
      421 ttctcgcgca acgcgtcagt gggctgatca ttaactatcc gctggatgac caggatgcca
      481 ttgctgtgga agctgcctgc actaatgttc cggcgttatt tcttgatgtc tctgaccaga
      541 cacccatcaa cagtattatt ttctcccatg aagacggtac gcgactgggc gtggagcatc
      601 tggtcgcatt gggtcaccag caaatcgcgc tgttagcggg cccattaagt tctgtctcgg
      661 cgcgtctgcg tctggctggc tggcataaat atctcactcg caatcaaatt cagccgatag
      721 cggaacggga aggcgactgg agtgccatgt ccggttttca acaaaccatg caaatgctga
      781 atgagggcat cgttcccact gcgatgctgg ttgccaacga tcagatggcg ctgggcgcaa
      841 tgcgcgccat taccgagtcc gggctgcgcg ttggtgcgga tatttcggta gtgggatacg
      901 acgataccga agacagctca tgttatatcc cgccgttaac caccatcaaa caggattttc
      961 gcctgctggg gcaaaccagc gtggaccgct tgctgcaact ctctcagggc caggcggtga
     1021 agggcaatca gctgttgccc gtctcactgg tgaaaagaaa aaccaccctg gcgcccaata
     1081 cgcaaaccgc ctctccccgc gcgttggccg attcattaat gcagctggca cgacaggttt
     1141 cccgactgga aagcgggcag tgagcgcaac gcaattaatg taagttagct cactcattag
     1201 gcacaattct catgtttgac agcttatcat cgactgcacg gtgcaccaat gcttctggcg
     1261 tcaggcagcc atcggaagct gtggtatggc tgtgcaggtc gtaaatcact gcataattcg
     1321 tgtcgctcaa ggcgcactcc cgttctggat aatgtttttt gcgccgacat cataacggtt
     1381 ctggcaaata ttctgaaatg agctgttgac aattaatcat cggctcgtat aatgtgtgga
     1441 attgtgagcg gataacaatt tcacacagga aacagccagt ccgtttaggt gttttcacga
     1501 gcaattgacc aacaaggacc atagattatg aaaatcgaag aaggtaaact ggtaatctgg
     1561 attaacggcg ataaaggcta taacggtctc gctgaagtcg gtaagaaatt cgagaaagat
     1621 accggaatta aagtcaccgt tgagcatccg gataaactgg aagagaaatt cccacaggtt
     1681 gcggcaactg gcgatggccc tgacattatc ttctgggcac acgaccgctt tggtggctac
     1741 gctcaatctg gcctgttggc tgaaatcacc ccggacaaag cgttccagga caagctgtat
     1801 ccgtttacct gggatgccgt acgttacaac ggcaagctga ttgcttaccc gatcgctgtt
     1861 gaagcgttat cgctgattta taacaaagat ctgctgccga acccgccaaa aacctgggaa
     1921 gagatcccgg cgctggataa agaactgaaa gcgaaaggta agagcgcgct gatgttcaac
     1981 ctgcaagaac cgtacttcac ctggccgctg attgctgctg acgggggtta tgcgttcaag
     2041 tatgaaaacg gcaagtacga cattaaagac gtgggcgtgg ataacgctgg cgcgaaagcg
     2101 ggtctgacct tcctggttga cctgattaaa aacaaacaca tgaatgcaga caccgattac
     2161 tccatcgcag aagctgcctt taataaaggc gaaacagcga tgaccatcaa cggcccgtgg
     2221 gcatggtcca acatcgacac cagcaaagtg aattatggtg taacggtact gccgaccttc
     2281 aagggtcaac catccaaacc gttcgttggc gtgctgagcg caggtattaa cgccgccagt
     2341 ccgaacaaag agctggcaaa agagttcctc gaaaactatc tgctgactga tgaaggtctg
     2401 gaagcggtta ataaagacaa accgctgggt gccgtagcgc tgaagtctta cgaggaagag
     2461 ttggtgaaag atccgcgtat tgccgccact atggaaaacg cccagaaagg tgaaatcatg
     2521 ccgaacatcc cgcagatgtc cgctttctgg tatgccgtgc gtactgcggt gatcaacgcc
     2581 gccagcggtc gtcagactgt cgatgaagcc ctgaaagacg cgcagactaa ttcgagctcg
     2641 aacaacaaca acaataacaa taacaacaac ctcgggatcg agggaaggat ttcacatatg
     2701 tccatgggcg gccgcgatat cgtcgacgga tccgaattcc ctgcaggtaa ttaaataagc
     2761 ttcaaataaa acgaaaggct cagtcgaaag actgggcctt tcgttttatc tgttgtttgt
     2821 cggtgaacgc tctcctgagt aggacaaatc cgccgggagc ggatttgaac gttgcgaagc
     2881 aacggcccgg agggtggcgg gcaggacgcc cgccataaac tgccaggcat caaattaagc
     2941 agaaggccat cctgacggat ggcctttttg cgtttctaca aactctttcg gtccgttgtt
     3001 tatttttcta aatacattca aatatgtatc cgctcatgag acaataaccc tgataaatgc
     3061 ttcaataata ttgaaaaagg aagagtatga gtattcaaca tttccgtgtc gcccttattc
     3121 ccttttttgc ggcattttgc cttcctgttt ttgctcaccc agaaacgctg gtgaaagtaa
     3181 aagatgctga agatcagttg ggtgcacgag tgggttacat cgaactggat ctcaacagcg
     3241 gtaagatcct tgagagtttt cgccccgaag aacgtttccc aatgatgagc acttttaaag
     3301 ttctgctatg tggcgcggta ttatcccgtg ttgacgccgg gcaagagcaa ctcggtcgcc
     3361 gcatacacta ttctcagaat gacttggttg agtactcacc agtcacagaa aagcatctta
     3421 cggatggcat gacagtaaga gaattatgca gtgctgccat aaccatgagt gataacactg
     3481 cggccaactt acttctgaca acgatcggag gaccgaagga gctaaccgct tttttgcaca
     3541 acatggggga tcatgtaact cgccttgatc gttgggaacc ggagctgaat gaagccatac
     3601 caaacgacga gcgtgacacc acgatgcctg tagcaatggc aacaacgttg cgcaaactat
     3661 taactggcga actacttact ctagcttccc ggcaacaatt aatagactgg atggaggcgg
     3721 ataaagttgc aggaccactt ctgcgctcgg cccttccggc tggctggttt attgctgata
     3781 aatctggagc cggtgagcgt gggtctcgcg gtatcattgc agcactgggg ccagatggta
     3841 agccctcccg tatcgtagtt atctacacga cggggagtca ggcaactatg gatgaacgaa
     3901 atagacagat cgctgagata ggtgcctcac tgattaagca ttggtaactg tcagaccaag
     3961 tttactcata tatactttag attgatttcc ttaggactga gcgtcaaccc cgtagaaaag
     4021 atcaaaggat cttcttgaga tccttttttt ctgcgcgtaa tctgctgctt gcaaacaaaa
     4081 aaaccaccgc taccagcggt ggtttgtttg ccggatcaag agctaccaac tctttttccg
     4141 aaggtaactg gcttcagcag agcgcagata ccaaatactg tccttctagt gtagccgtag
     4201 ttaggccacc acttcaagaa ctctgtagca ccgcctacat acctcgctct gctaatcctg
     4261 ttaccagtgg ctgctgccag tggcgataag tcgtgtctta ccgggttgga ctcaagacga
     4321 tagttaccgg ataaggcgca gcggtcgggc tgaacggggg gttcgtgcac acagcccagc
     4381 ttggagcgaa cgacctacac cgaactgaga tacctacagc gtgagctatg agaaagcgcc
     4441 acgcttcccg aagggagaaa ggcggacagg tatccggtaa gcggcagggt cggaacagga
     4501 gagcgcacga gggagcttcc agggggaaac gcctggtatc tttatagtcc tgtcgggttt
     4561 cgccacctct gacttgagcg tcgatttttg tgatgctcgt caggggggcg gagcctatgg
     4621 aaaaacgcca gcaacgcggc ctttttacgg ttcctggcct tttgctggcc ttttgctcac
     4681 atgttctttc ctgcgttatc ccctgattct gtggataacc gtattaccgc ctttgagtga
     4741 gctgataccg ctcgccgcag ccgaacgacc gagcgcagcg agtcagtgag cgaggaagcg
     4801 gaagagcgcc tgatgcggta ttttctcctt acgcatctgt gcggtatttc acaccgcata
     4861 taaggtgcac tgtgactggg tcatggctgc gccccgacac ccgccaacac ccgctgacgc
     4921 gccctgacgg gcttgtctgc tcccggcatc cgcttacaga caagctgtga ccgtctccgg
     4981 gagctgcatg tgtcagaggt tttcaccgtc atcaccgaaa cgcgcgaggc agctgcggta
     5041 aagctcatca gcgtggtcgt gcagcgattc acagatgtct gcctgttcat ccgcgtccag
     5101 ctcgttgagt ttctccagaa gcgttaatgt ctggcttctg ataaagcggg ccatgttaag
     5161 ggcggttttt tcctgtttgg tcactgatgc ctccgtgtaa gggggatttc tgttcatggg
     5221 ggtaatgata ccgatgaaac gagagaggat gctcacgata cgggttactg atgatgaaca
     5281 tgcccggtta ctggaacgtt gtgagggtaa acaactggcg gtatggatgc ggcgggacca
     5341 gagaaaaatc actcagggtc aatgccagcg cttcgttaat acagatgtag gtgttccaca
     5401 gggtagccag cagcatcctg cgatgcagat ccggaacata atggtgcagg gcgctgactt
     5461 ccgcgtttcc agactttacg aaacacggaa accgaagacc attcatgttg ttgctcaggt
     5521 cgcagacgtt ttgcagcagc agtcgcttca cgttcgctcg cgtatcggtg attcattctg
     5581 ctaaccagta aggcaacccc gccagcctag ccgggtcctc aacgacagga gcacgatcat
     5641 gcgcacccgt ggccaggacc caacgctgcc cgaaatt
//

质粒菌株产品操作说明书
一、扩增流程
         收到产品后，请先根据产品管壁标签来判断产品形式，并在扩增前准确查找该质粒菌株的抗性、感受态和培养温度。
         1、质粒干粉（常温运输，存于-20度，90天保质期，请务必转化挑单克隆培养，不要直接使用和测序）
              ①收到质粒干粉后请先5000rpm离心1min，再加入20μl ddH2O去离子水溶解质粒；
              ②取1支100μl 感受态于冰上解冻10min，加入2μl质粒，再冰浴30min后，42℃热激60s，不要搅动，再冰浴2min；（从第二步开始均要在超净工作台中无菌操作）
              ③加入900μl无抗的LB液体培养基，180rpm震荡37℃培养45min；
              ④6000rpm离心5min，仅留100μl上清液重悬细菌沉淀，并涂布至目标质粒抗性的LB平板上；（可使用本平台的平板涂布专用玻璃珠进行涂布，可以比传统涂布方法获得更多转化子）
              ⑤将平板正向培养1h，再倒置37℃培养14h。如果要求是30度则培养20h；
（菌落过多则将质粒稀释后再转化。没有菌落则加入10μl质粒转化。另不要直接转表达感受态，要先转克隆感受态，重提质粒后再导入表达感受态）
              ⑥挑取单菌落至LB液体培养基中，加入对应抗生素，220rpm震荡培养14h，根据实验需要和质粒提取试剂盒说明书提取质粒。
        2、甘油菌种（冰袋运输，存于-80℃，保质期90天，请务必划线挑单克隆培养）
              四区划线后挑单菌落培养，酵母菌需要先液体复苏再四区划线，再挑单菌落液体培养。
        3、穿刺菌种（冰袋运输，存于4℃，保质期7天）
              穿刺接种，液体培养后四区划线，再挑单菌落液体培养。
        4、菌落平板（冰袋运输，存于4℃，保质期7天）
              直接挑取单菌落至液体培养基中。
        5、液体质粒（冰袋运输，存于-20℃，保质期90天）
              单独提取的液体质粒收到后可直接使用。
        6、滤纸质粒（常温运输，存于-20度，90天保质期，请务必转化挑单克隆培养，不要直接使用和测序）
              收到货后将滤纸画圈部分剪下放入EP管中，加100ul无菌水将滤纸浸湿并浸泡5min，吸取5ul质粒转化，离心全涂。

二、转化图片

P3839/pCMV-SPORT6-MAP3K7CL人源基因质粒

P3840/pCMV-SPORT6-DYM人源基因质粒

P3841/pCMV-SPORT6-SLC41A3（1同义突变）人源基因质粒

P3842/pCMV-SPORT6-NEUROD1人源基因质粒

P3843/pCMV-SPORT6-PTPN11人源基因质粒

P3844/pCMV-SPORT6-RBCK1人源基因质粒

P3845/pCMV-SPORT6-MARC1（2点突变）人源基因质粒

P3846/pCMV-SPORT6-PYGB人源基因质粒

P3847/pCMV-SPORT6-MSMO1人源基因质粒

P3848/pCMV-SPORT6-SEMA4B人源基因质粒

P3849/pCMV-SPORT6-IP6K1人源基因质粒
