脑立体定位仪高景深数码显微镜

为什么需要高景深数码显微镜？

景深指的是主体周围景物的清晰程度，景深的深浅所带来的视觉感受会使得画面更具有空间深度感，而高景深数码显微镜在对实验场景成像时能够给实验者提供更多清晰视野和更强的立体感，满足更加精细的手术实验。

瑞沃德高景深数码显微镜应用：



专业用于脑定位注射和其它动物手术实验等精准操作的高景深数字化显微镜

瑞沃德高景深数码显微镜的特点：

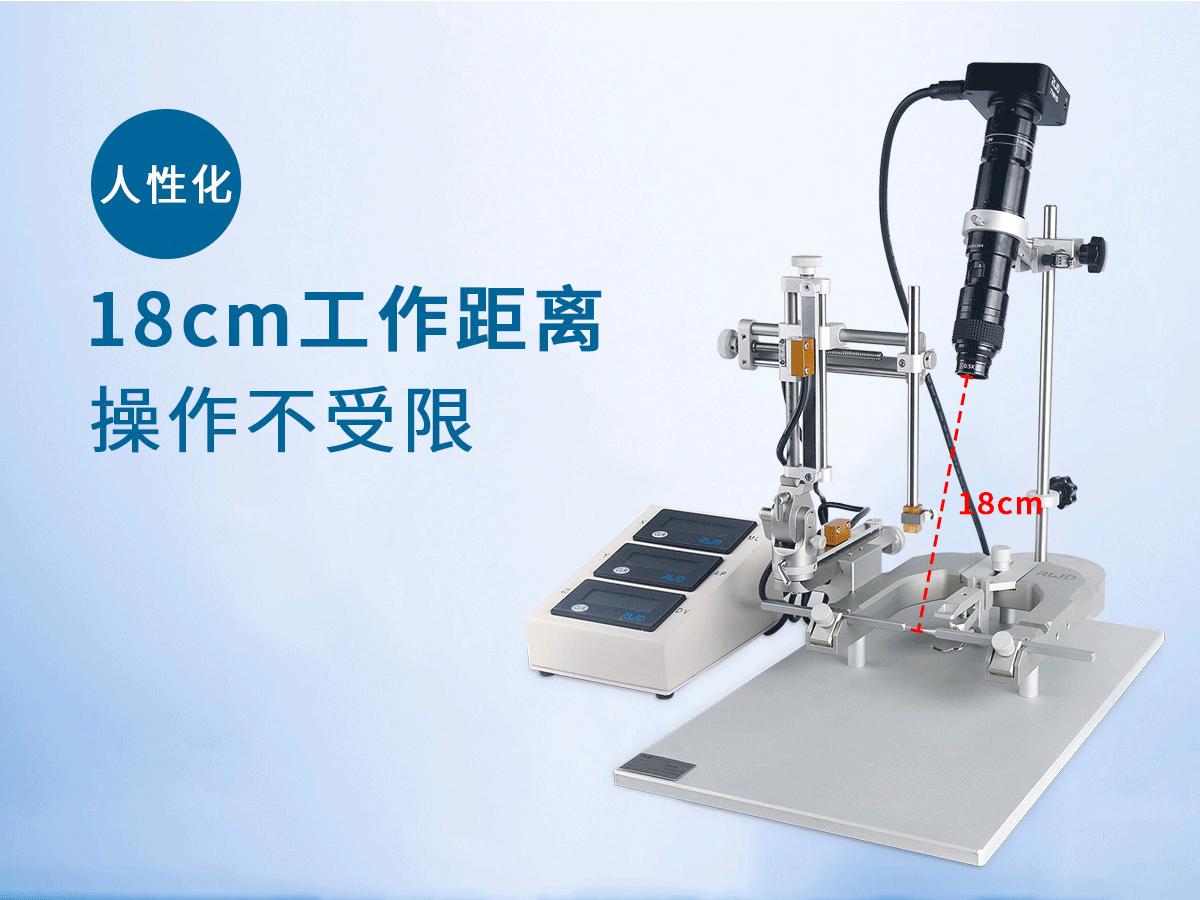

• 人性化 180 mm 工作距离，操作不受限

通过多次的实验调研发现，你的实验操作空间决定了你的工作效率。受限的空间会让你在实验过程中束手束脚，需要不断的进行场景交替，浪费了大量时间在场景交替上。77001D 数码显微镜采用了 18 厘米人性化的工作距离，配合 8 毫米手动调焦，既保证了观看清晰可见，又无需场景交替，让你边看边做实验，高效又轻松



• 广泛引用于多种实验中，辅助精准定位

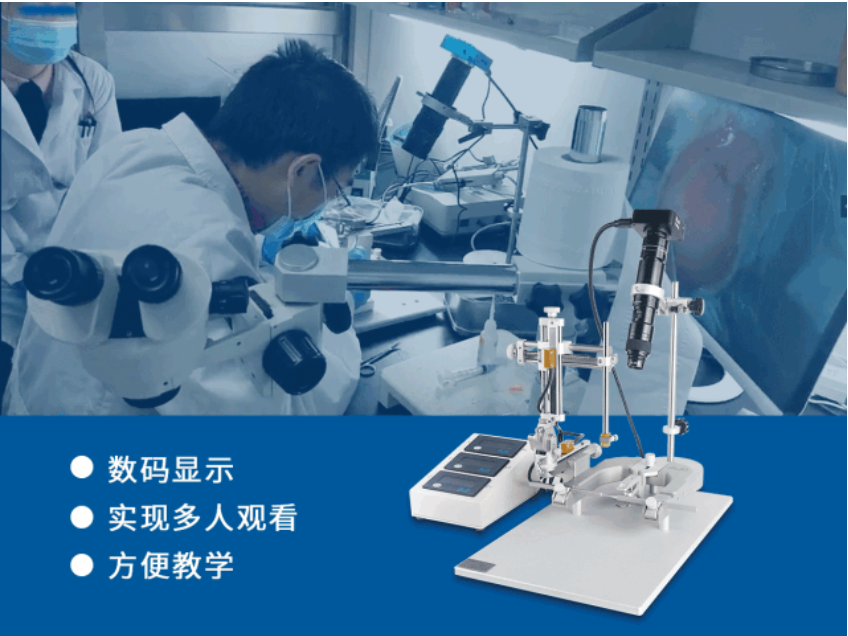

• 数码显示，实现多人观看，方便教学

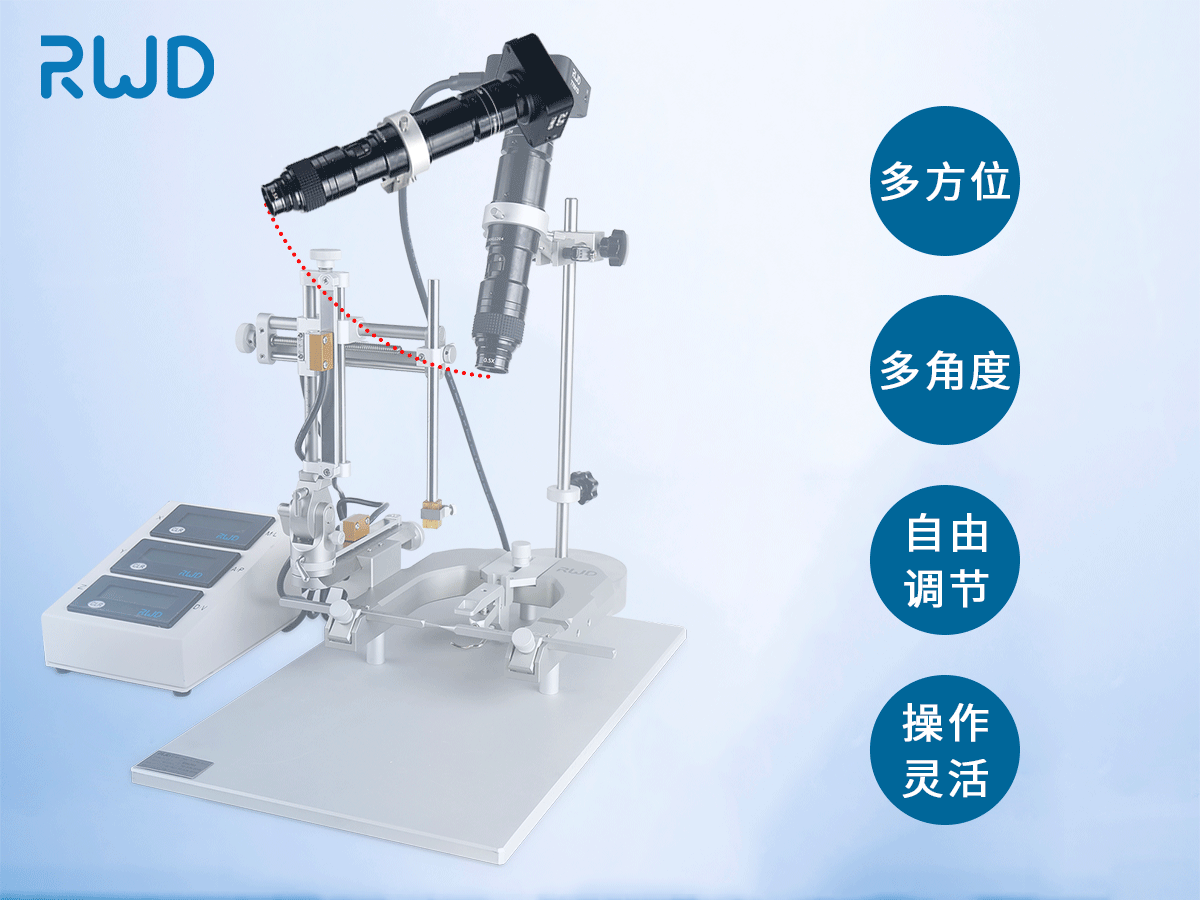

• 多方位角度自有调节，操作灵活

配合灵活的显微镜支架组件，可实现镜身三维空间的随意调节，瑞沃德景深数码显微镜，想看哪就看哪。

瑞沃德高景深数码显微镜主要技术参数：


传感器	1/2.33英寸松下1600万像素CMOS传感器
像素尺寸	1.335μm × 1.335μm
HDMI输出	1920*1080 60帧
镜头接口	C/CS
存储	最大支持64GB
支遥控器操作	支持
景深	低倍6.7 mm，高倍0.41 mm
分辨率	低倍19.8μm，高倍7.6μm
视野（1/3""sensor对角线）	低倍33.3 mm，高倍5.3 mm

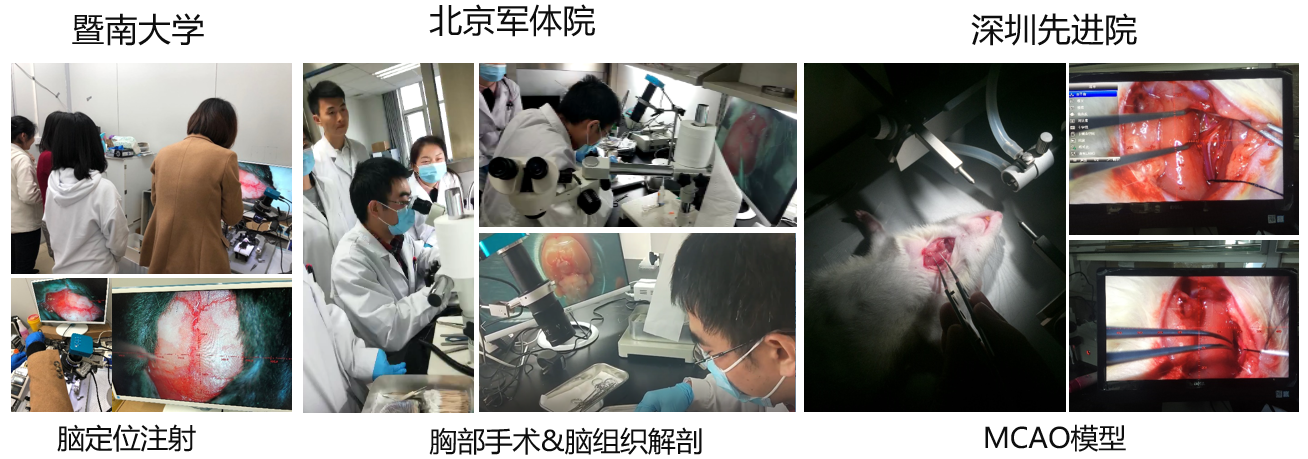

瑞沃德高景深数码显微镜使用案例：




参考文献：

1. Astroglial Kir4.1 in the lateral habenula drives neuronal bursts in depression. Yihui Cui, Yan Yang, Zheyi Ni, Yiyan Dong, Guohong Cai, Alexandre Foncelle, Shuangshuang Ma, Kangning Sang, Siyang Tang, Yuezhou Li, Ying Shen, Hugues Berry, Shengxi Wu & Hailan Hu. Nature volume 554, pages 323–327 (15 February 2018)
2. Stereotaxic Surgery for Genetic Manipulation in Striatal Cells of Neonatal Mouse Brains. SY Chen, HY Kuo, FC Liu - JoVE (Journal of Visualized Experiments), 2018 - jove.com
3. Recording EEG in Freely Moving Neonatal Rats Using a Novel Method. QW Huo, S Tabassum, AA Misrani, C Long - JoVE (Journal of Visualized …, 2017 - jove.com
4. Ketamine blocks bursting in the lateral habenula to rapidly relieve depression. Yan Yang, Yihui Cui, Kangning Sang, Yiyan Dong, Zheyi Ni, Shuangshuang Ma,& Hailan Hu. Nature. 2018 Feb 14;554(7692):317-322.
5. Sustained release of bioactive hydrogen by Pd hydride nanoparticles overcomes Alzheimer's disease. Lei Zhang, Penghe Zhao, Caiping Yue, Zhaokui Jin, Qiong Liu, Xiubo Du, Qianjun He. Biomaterials. 2019 Mar;197:393-404.
6. Tac1-Expressing Neurons in the Periaqueductal Gray Facilitate the Itch-Scratching Cycle via Descending Regulation. Zheng-Run Gao, Wen-Zhen Chen, Ming-Zhe Liu, ..., Li Zhou, Xiao-Hong Xu, Yan-Gang Sun. Neuron. 2019 Jan 2;101(1):45-59.e9.
7. A Visual Circuit Related to Habenula Underlies the Antidepressive Effects of Light Therapy. Lu Huang, Yue Xi, Yanfang Peng, ...,Minmin Luo, Kwok-Fai So, Chaoran Ren. Neuron. 2019 Apr 3;102(1):128-142.e8.
8. Basolateral amygdala input to the medial prefrontal cortex controls obsessive-compulsive disorder-like checking behavior. Sun T, Song Z, Tian Y, Tian W, Zhu C, Ji G, Luo Y, Chen S, Wang L, Mao Y, Xie W, Zhong H, Zhao F, Luo MH, Tao W, Wang H, Li J, Li J, Zhou J, Wang K, Zhang Z. Proc Natl Acad Sci U S A. 2019 Feb 26;116(9):3799-3804.
9. Fiber-optic implant for simultaneous fluorescence-based calcium recordings and BOLD fMRI in mice. Felix Schlegel, Yaroslav Sych, Aileen Schroeter, Jillian Stobart, Bruno Weber, Fritjof Helmchen& Markus Rudin. Nature Protocols volume 13, pages 840–855 (2018)
10. A retinoraphe projection regulates serotonergic activity and looming-evoked defensive behavior. Lu Huang, Tifei Yuan, Minjie Tan, Yue Xi, Yu Hu, Qian Tao, Zhikai Zhao, Jiajun Zheng, Yushui Han, Fuqiang Xu, Minmin Luo, Patricia J. Sollars, Mingliang Pu, Gary E. Pickard, Kwok-Fai So& Chaoran Ren. Nature Communications volume 8, Article number: 14908 (2017)
11. Zona incerta GABAergic neurons integrate prey-related sensory signals and induce an appetitive drive to promote hunting. Zheng-dong Zhao, Zongming Chen, Xinkuan Xiang, Mengna Hu, Hengchang Xie, Xiaoning Jia, Fang Cai, Yuting Cui, Zijun Chen, Lechen Qian, Jiashu Liu, Congping Shang, Yiqing Yang, Xinyan Ni, Wenzhi Sun, Ji Hu, Peng Cao, Haohong Li & Wei L. Shen. Nature Neuroscience volume 22, pages921–932 (2019)
12. Exercise training improves motor skill learning via selective activation of mTOR.  K Chen, Y Zheng, J Wei, H Ouyang, Xiaodan Huang, Feilong Zhang, Cora Sau Wan Lai, Chaoran Ren, Kwok-Fai So, and Li Zhang. Science Advances 03 Jul 2019:Vol. 5, no. 7, eaaw1888
